Product Details:
|
| Key Words: | Steel Structure Workshop | Steel Standard: | Q235 And Q345 H Steel, C Steel |
|---|---|---|---|
| Roof&wall Material: | Steel Sheet Or Sandwich Panel | Insulation: | EPS, Glass Wool, Rock Wool, PU |
| Measurement: | Up To Customers' Request | Steel Frame Finished: | Painting Or Hot-dip Galvanized |
Custom-Make Construction Steel Structure Workshop / Warehouse / Hangar Building
Product Description
Product type: steel workshop building
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Steel building save money, time and environment
- Recycled steel
- Lower energy use
- Versatility
- Quick construction
- Simple remodeling
- Affordable
- Easy care
Steel building materials component
| Embedded parts | Anchor bolt | M30 |
| High strength bolt | M20,10.9S | |
| Common bolt | M20 | |
| Galvanized bolt | M12 | |
| Shear studs | M16 | |
| Brace | M12 | |
| Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
| Wind column(Q235B) | HN300X150X5.5X8 | |
| Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
| Roof frame beam(Q235B) | HN400*200*7*11 | |
| Floor beam(Q235B) | HN350X175X6X9 | |
| Tie rod | Ø89*3.0 | |
| Horizontal bracing | Ø20 | |
| Column bracing | Ø20 | |
| Wall purlin(Galvanized) | C160*50*20*2.0 | |
| Roof purlin(Galvanized) | C160*50*20*2.0 | |
| Connecting plate | 4mm～20mm steel sheet | |
| Maintenance | Roof tile | 50mm sandwich panel(steel sheet thk:0.276mm, density:80kg/m³ ) |
| Wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Partition wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Rolling door(automatic) | W4500*H5000 | |
| Steel door | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC | |
| Downpipe | PVC110 | |
| Trimming | 1.0mm galvanized /steel sheet | |
| Decoration | Office floor tile | 800*800 |
| Outdoor electric gate (W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
| Small gate (W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction, easy installation and convenient to transport.
Price
Basic Design Requirements: design Load (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Building Purpose:
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Workshop
F. Office Space
G. Animal Farm (please confirm what kind of animal)

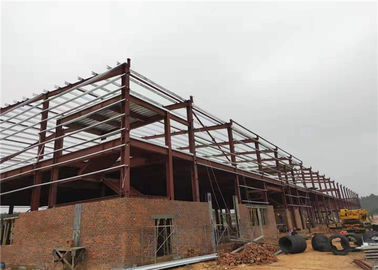

Steel building pictures display
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with the total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Project Services
Simple or complex, our special project services team quickly an expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver a high-quality metal building system under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
Contact Person: Ms. Kary
Tel: +86 13929163028
Fax: 86-757-85653718
