Sandwich Panel Large Metal Workshops And Garages , Prefab Shop Buildings

Place of Origin Foshan,Guangdong
Brand Name TPA Housing
Certification ISO,SGS,BV
Model Number TPA-SWB04
Product Details
Range:
Workshop, Warehouse, Storage
Crane:
3 Ton / 5 Ton / 10 Ton /15 Ton
Seismic:
7~8 Grade
Wind Load:
100~150 Km/h
High Light:

industrial steel frame buildings

,

prefabricated workshop buildings

Payment & Shipping Terms
Minimum Order Quantity
I unit
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
L/C, T/T
Product Description

Product Description

Product type: steel workshop buildings

Sandwich panel prefab metal steel building for workshop construction



TPA housing design and construct steel workshop buildings for both industrial and commercial use. We do the complete structural design and workshop or warehouse construction using the highest quality steel Q235 or Q345, we can also provide hot dip galvanized if the client required.



We offer worldwide design and construction of:

- Standard steel construction workshop
- Propped steel warehouse workshop buildings
- High rise steel workshop and office building
- Wide clear span steel framed storage warehouses



Steel workshop buildings materials component :

Main Steel Frame H section steel Q345 steel 8mm/10mm
  Welding Automatic submerged arc welding
  Rust removal Sand blasting
  Surface processing Alkyd paint or galvanized
  Intensive bolt Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
  Cross support Φ20, Steel Q235, processed and painted
  Belt bar Φ89*3, Steel Q235, processed and painted
  Small brace Φ12,Steel Q235, processed and painted
  Ordinary bolt Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
  Outer-roof panel Sandwich panel or corrugated steel plate
  Sky light 6mm thick PVC
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Gutter Made from 0.8mm thick sheet steel
  Rainspout Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
  Wall sandwich panel or corrugated steel plate
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Ventilation equipment Ventilation ball
  Doors & windows Rolling door/sliding door PVC/alu/steel window

Steel Structure is a better chice :

* Design flexibility allows for future expansion.
* Simple bolt-together construction saves time and cost.
* 50-year for mainly structural life span no matter the location or size of building.



Why choose TPA housing?

* Superior Customer Service

We have the ability to design our structures to accommodate the largest of overhead cranes and gantries, the ability to detail and install glazing and cladding systems complete with integrated personnel.



* Profession Design

With our specialist knowledge we can design steel structure building to withstand high wind speeds, seismic loads or arctic snow loads if necessary.



* Quality Building Materials

TPA housing committed to offer the best quality steel building materials and the workmanship available in the industry.



* Installation Guidance Service

We can dispatch an engineer to guide on site if necessary. The visa fee, air tickets, accommodation,

wages will be on the buyer’s account.

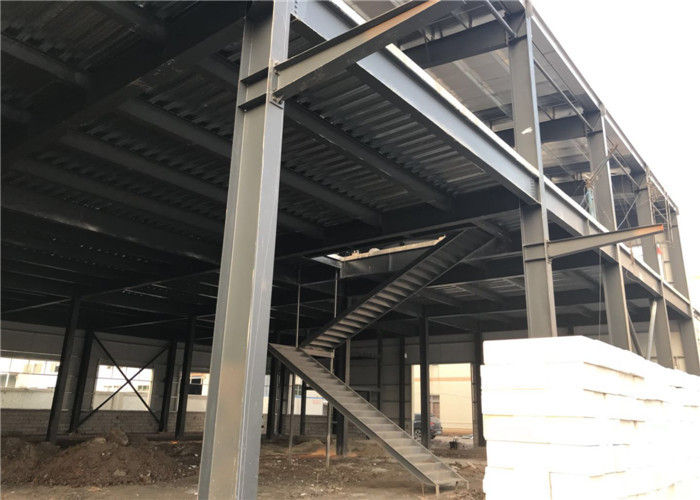

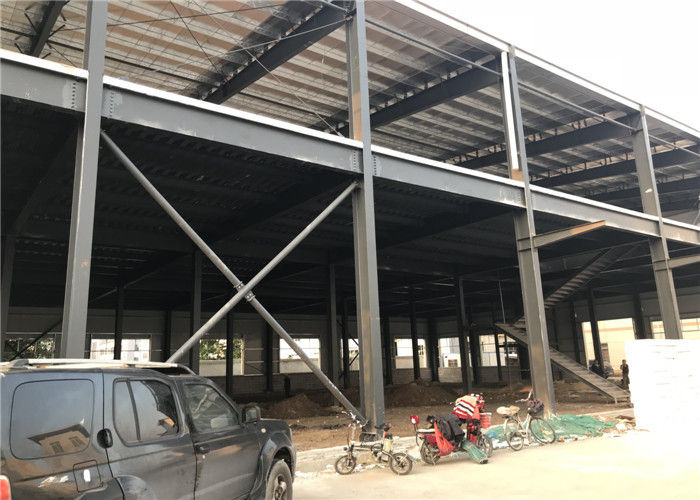

Steel workshop pictures display :

Sandwich Panel Large Metal Workshops And Garages , Prefab Shop Buildings 0

Our steel structure processing workshop :

Sandwich Panel Large Metal Workshops And Garages , Prefab Shop Buildings 1

Container loading :

Sandwich Panel Large Metal Workshops And Garages , Prefab Shop Buildings 2



We'd love to give fully support for your further inquiry!
