Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SFS14
Low Cost Designed Professional Engineering Steel Structure Storage
Product features
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
Product material list
| Name of material | Specification and material |
| Embedded parts | M30 |
| High strength bolt | M20,10.9S |
| Common bolt | M16 |
| Galvanized bolt | M12 |
| Shear nail | M16 |
| Steel column(Q345B) | HN600X200X10X15 |
| Steel column(Q345B) | HN300X150X6.5X9 |
| Roof column(Q345B) | HN350X175X6X9 |
| Floor beam(Q345B) | HN500X200X9X14 |
| Tie rod | Ø 89*3.0 |
| Horizontal support | Ø 16 |
| Roof purlin(Galvanized) | C180*60*20*2.0 |
| Wall purlin(Galvanized) | C180*60*20*2.0 |
| connecting plate | 6mm～20mm steel sheet |
| Roof Tile- Color steel sheet | thickness: 0.426mm |
| Outside wall panel --Rock wool Sandwich panel | 50mm color steel thickness: 0.426mm |
| Gutter | 2.0mm Galvanized Gutter |
| Down pipe | 110PVC |
| Trimming | 1.0mm galvanized steel sheet |
Steel Structure Building materials display
Product Characteristics
1.Low maintenance costs
2.Environmentally friendly, recycling.
3.Flexibility when fixing doors, windows and interior partitions
4.Steel structure construction is strong, durability and stability.
5.steel components is resistant to termites and other destructive insects.
6.Long service life for more than 50 years
7.Fast construction ,easy installation and convenient to transport.

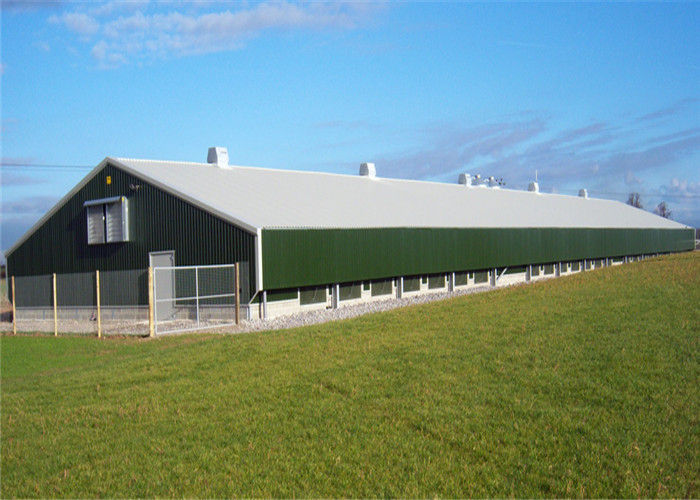

Projects installation display
About US
TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
We can quote if you can offer the following information
1. Size: Length,Width,Roof Height and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated sheet sheet or EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and window
6. Surface: Twice anti-corrosive primer + finish painting or Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per clients' requests.
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
If you are interested in steel structure building or need a building price, call today !
Send your inquiry directly to us
