Place of Origin:
Foshan,Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SWB23

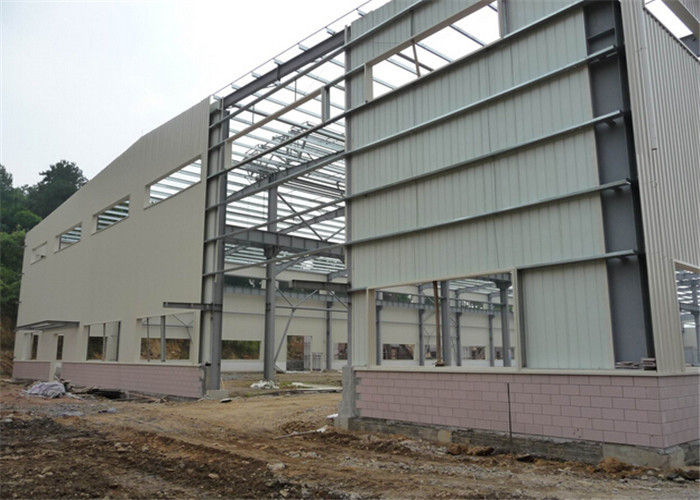

Hot-rolled steel ready-made structural sections workshop building for sale
Product Description
Product type: steel workshop buildings
The steel structure workshop building with 1 floor,the roofs is low-rise steel structure factories are mostly sloping roofs, so the roof structure is basically a triangular roof truss system made of cold-formed steel members, which has stronger seismic and horizontal load resistance, and is suitable for areas with seismic intensity of more than 8 degrees.This kind of dry construction can reduce the environmental pollution caused by waste. Steel structural materials can be recycled 100% and most other supporting materials can also be recycled, which meets the current environmental awareness. All materials are green building materials and meet the requirements of ecological environment, which is conducive to health.
Mechanical properties of steel
/ Strength - tensile strength, yield strength;
/ Plasticity - elongation, reduction of area
/ Resilience - impact absorption work
Process performance of steel
The processing of steel into the required structural components requires a series of processes, including various machining (milling, planing, hole making), cutting, cold, heat correction and welding.
The characteristics of the steel structure workshop are as follows:
1. The steel structure is light weight, high strength and large span.
2. The construction period of steel structure construction is short, which reduces the investment cost accordingly.
3. Steel structure construction is high fire resistance and strong corrosion resistance.
4. The steel structure building is easy to move and the recycling is non-polluting.
Steel workshop buildings materials component :
| Main Steel Frame | H section steel | Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface processing | Alkyd paint or galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Belt bar | Φ89*3, Steel Q235, processed and painted | |
| Small brace | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Outer-roof panel | Sandwich panel or corrugated steel plate | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Gutter | Made from 0.8mm thick sheet steel | |
| Rainspout | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Ventilation equipment | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |
Steel structure building related project we have undertaken
Steel Buildings for Sale at the Best Prices,just choosing the Right Building for You~
We'd love to give fully support for your further inquiry!
Let’s Get Started!
Send your inquiry directly to us
