Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-PSH25
Prefabricated Slope Roof Villa Light Steel Gauge House With Wall Board
1) Product description
Product type: Light steel structure
Prefab steel house, often referred to as prefab homes or simply prefabs, are specialist dwelling types of prefabricated building, which are manufactured off-site in advance, usually in standard sections that can be easily shipped and assembled.
2) Prefab steel house features
1. Reliable structure: light steel structure is the frame of our building, which meets the design requirements of steel structure.
2. Easy to install and disassemble: Standardized components make it easy to install and dismantle. It is especially suitable for emergency projects.
3. Attractive appearance: Because prepainted steel sheet is adopted, the whole structure is handsome.
4. Environment friendly and economical: Reasonable design makes it reusable.The reusable character makes it environment friendly and economical.
5. Cost efficient: First class material, reasonable price, once and for all investment, low requirements for base and short completion time make it cost efficient.
3) About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
4) Material component list
| Item name | Specification |
| Steel column | Square tube100*3.0 |
| Roof truss beam | Square tube80*40+square tube60*30 |
| Ring beam | Square tube80*1.0 |
| Roof purlin | C100*40*15*2.0 |
| Steel fittings | |
| Structure steel fabrication+Sanding + Paint | Acetylene, oxygen, electrode, Sa2.5 |
| Roof decoration | Asphalt shingle + waterproof membrane |
| Roof panel | 75mm EPS sandwich panel |
| Wall panel | 75mm cement board |
| Exterior wall cladding | Cement cladding |
| Steel door | W1600*H2000 |
| Aluminum window | W1500*H1200 |
| Trimming | Steel sheet |
| Ceiling | Gypsum ceiling |
| Hardware | Self-tapping screws, rivets, bolts, glue |
5) EPS Cement Wall Panel Advantages
1.Heat Insulation And Preservation
The energy saving feature of Daquan energy-saving boards chiefly embodies in heat preservation and insulation. Major material adopt anti-freezing and heat preservation environmnetal protection materials polysyrene grains with good heat insulation and preservation function, which could adjust the indoor temperature at a constant range, thus achieving the effects of ecological adjustment.
2.Water Proof, Fire Proof
The face panel of Daquan energy-saving boards on both sides are 4.5mm silicon-calcium fire proof boards and the main material is a mixture of cement, sand, fly ash and so on. Daquan enengy-saving boards have a fire proof limit of 4 hours against a hign temperature of 1000℃ and incombustibility standard achieve national level A. Besides, these material give out no toxic gas and perfectly meet the international environment protection criterions. The test also prove that water container can be made by Daquan panel with no need for plastering and the containers have no leakage at all.
3.Sound Insulation And Absorption
The inside constructional material(EPS polystyrene grain) has good sound insulation and sound-absorbing functions.

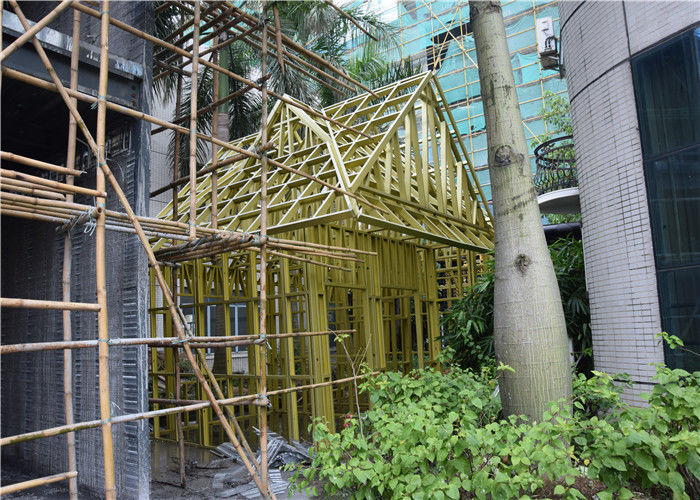

6) Steel structure building materials display
7) Installation
8) Applications
The prefab house is widely used as dormitiry, security room, resraurant,shower room, office and recreation room etc.
9) Factory showcase
10) Why choose us
1- Customized design service
2- Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3- After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication
We would love to achieve a longer cooperation with you!
Send your inquiry directly to us
