Place of Origin:
Foshan, Guangdong
Brand Name:
TPA-Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SSW37
Video
Video
Video
Product Description
Product type: steel structure warehouse

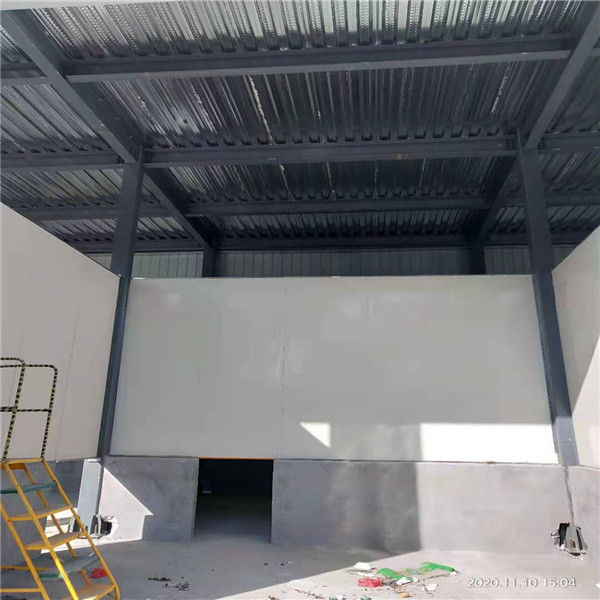

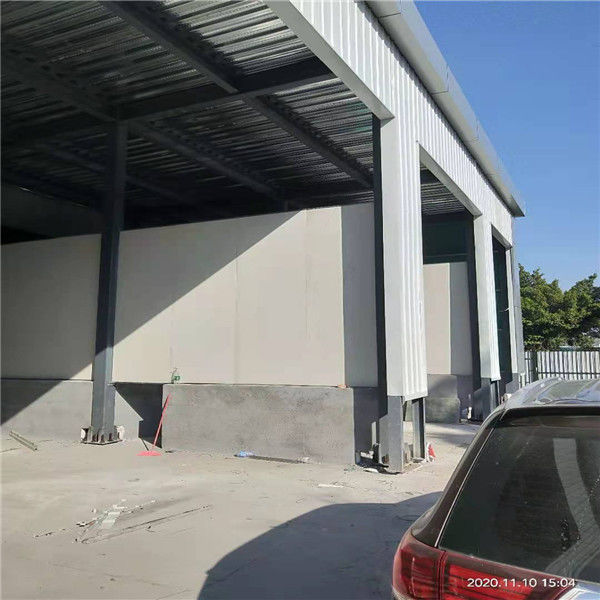

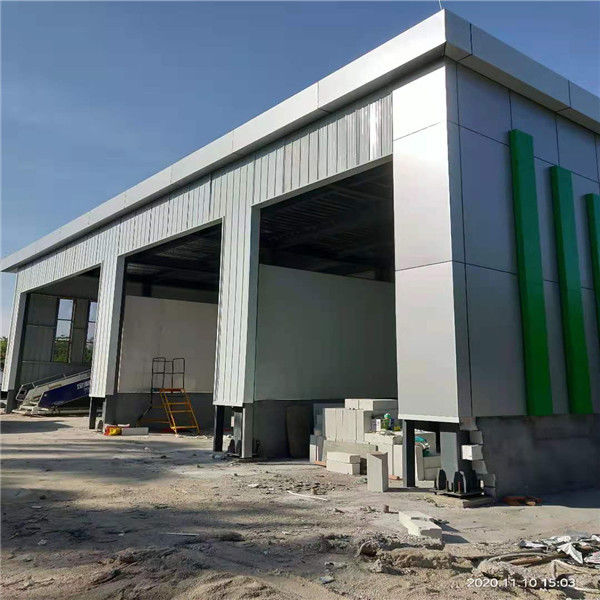

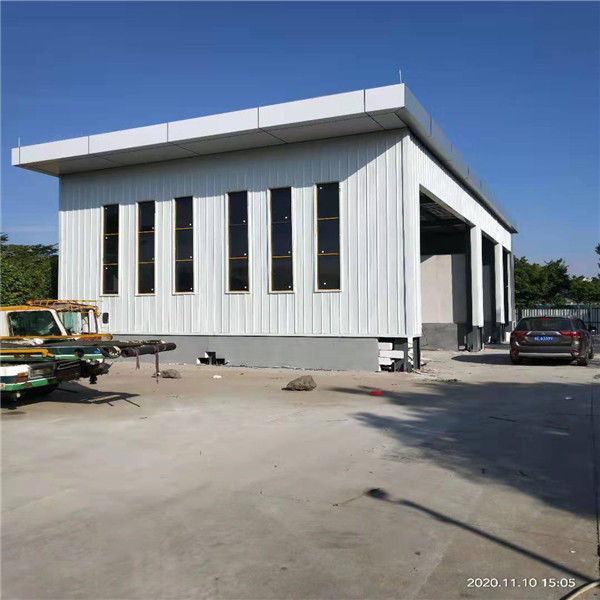

Flat Roof White Wall Panel Prefabricated Steel Structure Warehouse For Ground Service Building
Steel structure warehouse is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section, and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Steel structure warehouse materials component
| Embedded parts | Anchor bolt | M30 |
| High strength bolt | M20,10.9S | |
| Common bolt | M20 | |
| Galvanized bolt | M12 | |
| Shear studs | M16 | |
| Brace | M12 | |
| Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
| Wind column(Q235B) | HN300X150X5.5X8 | |
| Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
| Roof frame beam(Q235B) | HN400*200*7*11 | |
| Floor beam(Q235B) | HN350X175X6X9 | |
| Tie rod | Ø89*3.0 | |
| Horizontal bracing | Ø20 | |
| Column bracing | Ø20 | |
| Wall purlin(Galvanized) | C160*50*20*2.0 | |
| Roof purlin(Galvanized) | C160*50*20*2.0 | |
| Connecting plate | 4mm～20mm steel sheet | |
| Maintenance | Roof tile | 50mm sandwich panel(steel sheet thk:0.276mm, density:80kg/m³ ) |
| Wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Partition wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Rolling door(automatic) | W4500*H5000 | |
| Steel door | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC | |
| Downpipe | PVC110 | |
| Trimming | 1.0mm galvanized /steel sheet | |
| Decoration | Office floor tile | 800*800 |
| Outdoor electric gate (W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
| Small gate (W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows, and interior partitions
4. Steel structure construction is strong, durability and stable.
5. Steel components are resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction, easy installation, and convenient to transport.
Price
Basic Design Requirements: design Load (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Building Purpose:
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Workshop
F. Office Space
G. Animal Farm (please confirm what kind of animal)
Loading pictures display
