Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SSH15

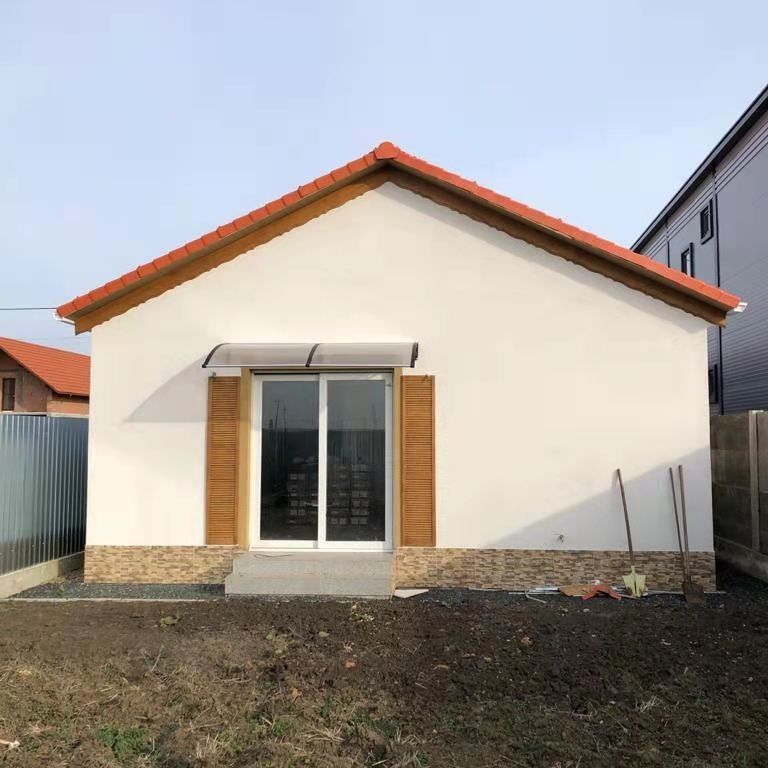

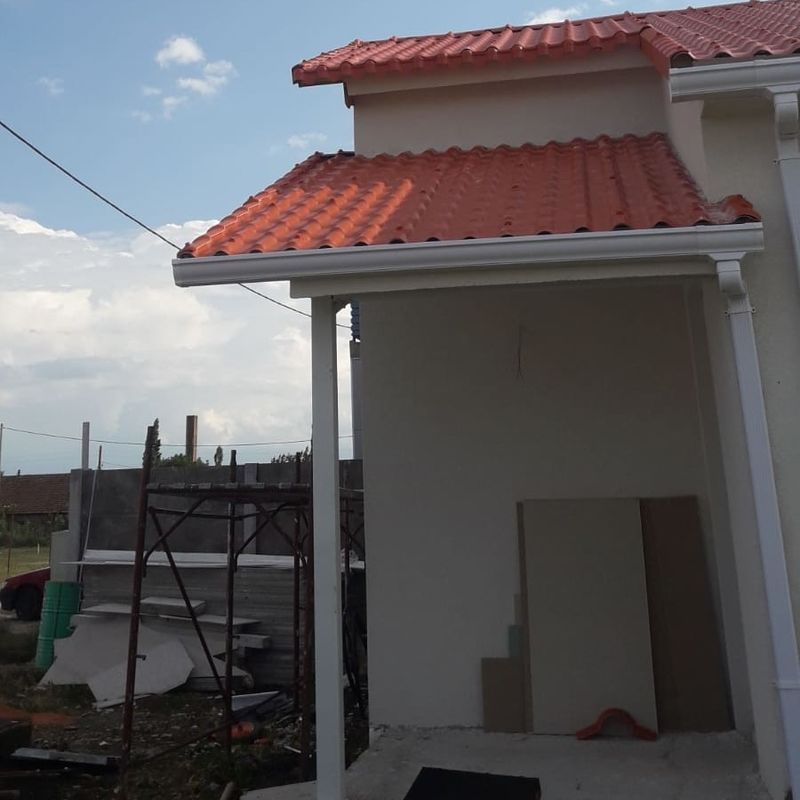

Q235 Steel Structural Building Steel Keel Frame Metal Home Villa Resin Tile
Our beautiful Ella learned about our factory from our website and contacted us and talked online for about a year. Ella came to China from Romania and made an appointment to have a meeting in our factory. Our customer have a professional engineer to provide us with renderings and various detailed drawings. So that we can understand the needs of customers and speed up our communication process.
Product features
1. Easy to dismantle and assemble (because of connection with bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly
Product technological parameters
| Embedded parts | Name of material | Specification and material |
| Anchor bolt | M30 | |
| High strength bolt | M20,10.9S | |
| Common bolt | M16 | |
| Galvanized bolt | M12 | |
| Shear nail | M16 | |
| Main steel frame | Steel column(Q345B) | HN298*149*5.5*8 |
| Wind resistance column(Q345B) | HN248*124*5*8 | |
| Roof column(Q345B) | HN248*124*5* | |
| Tie rod | Ø 89*3.0 | |
| Horizontal support | Ø 16 | |
| Roof purlin(Galvanized) | C140*45*20*2. | |
| Wall purlin(Galvanized) | C140*45*20*2. | |
| connecting plate | 6mm～20mm steel sheet | |
| Maintenance | Roof Tile- PU sandwich panel | 50mm color steel thickness: 0.426mm |
| Outside wall panel --PU sandwich panel | 50mm color steel thickness: 0.426mm | |
| Gutter | 2.0mm Galvanized Gutter | |
| Downpipe | 110PVC | |
| Trimming | 1.0mm galvanized steel sheet |
Steel structure building accessories
Wall&roof system
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions.
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years.
7. Fast construction ,easy installation and convenient to transport.
Metal homes floor plan display
Open top container loading
The loading of steel structures requires workers, forklifts, and cranes.
After shipment, we will make the material list for the client~
| Foshan TianPuAn Building Materials Technology Co.,Ltd. | |||||||||
| Material list | |||||||||
| Project Name:91.23sqm steel structure house | No: | AJD0401310 | |||||||
| Area: 7.1mx12.85mx3m CMAU5140170/40HQ | 1 sets | ||||||||
| No. | Item | Item No. | Specification | Length | Qty | Unit | Color | Remark | |
| 1 | Steel column | GZ1 | 口100*2.0 | 2385 | 1 | pcs | white | ||
| 2 | GZ2 | 2880 | 5 | pcs | |||||
| 3 | GZ3 | 2880 | 1 | pcs | |||||
| 4 | GZ4 | 2880 | 3 | pcs | |||||
| 5 | GZ5 | 2880 | 2 | pcs | |||||
| 6 | Ring beam | QL1 | 口100*1.8 | 1890 | 1 | pcs | |||
| 7 | QL2 | 1890 | 1 | pcs | |||||
| 8 | QL3 | 2890 | 2 | pcs | |||||
| 9 | QL4 | 2940 | 2 | pcs | |||||
| 10 | QL5 | 4590 | 2 | pcs | |||||
| 11 | Steel beam | GL1 | 口80*40*1.8 | 2650 | 1 | pcs | |||
| 12 | GL2 | 2650 | 1 | pcs | |||||
| 13 | Roof truss beam | WJL1 | 口80*40*1.8 | 7800 | 1 | pcs | |||
| 14 | WJL2 | 5400 | 1 | pcs | |||||
| 15 | WJL3 | 7800 | 1 | pcs | |||||
| 16 | WJL4 | 7800 | 1 | pcs | |||||
| 17 | WJL5 | 7800 | 1 | pcs | |||||
| 18 | Horizontal bracing | SC1 | 口80*40*1.8 | 5527 | 2 | pcs | |||
| 19 | SC2 | 4246 | 2 | pcs | |||||
| 20 | SC3 | 4211 | 2 | pcs | |||||
| 21 | Purlin | LT1 | 口80*40*1.8 | 1950 | 1 | pcs | |||
| 22 | LT2 | 2950 | 2 | pcs | |||||
| 23 | LT3 | 1950 | 1 | pcs | |||||
| 24 | LT4 | 4650 | 2 | pcs | |||||
| 25 | LT5 | 3000 | 2 | pcs | |||||
| 26 | LT6 | 1750 | 1 | pcs | |||||
| 27 | LT7 | 2950 | 10 | pcs | |||||
| 28 | LT8 | 1950 | 8 | pcs | |||||
| 29 | LT9 | 4650 | 10 | pcs | |||||
| 30 | LT10 | 3000 | 10 | pcs | |||||
| 31 | LT11 | 1750 | 2 | pcs | |||||
| 32 | Roof panel | WB1 | 100mmPU sandwich panel 1150 type color steel: 0.326mm | 4270 | 23 | pcs | both sides grey white | ||
About TPA
Foshan TianPuAn Buiding Materials Technology Co.Lat(TA Housing)was established in Foshan in 2008. We are specialized in designing, manufacturing, marketing, and our main produts are prefabricated steel structure buing, uch a tes sirrute warehouse, workshop, poultry shed, pretab hall, garag, udo stadum shed etc.We can also provid instains outios,
affer-sales services for a lager ang of fte strce bulding
and reasonable or complete solutions based on your iea. Wh have
owned ISO 9001:2008,SGS,BV,TUV ceriicatles.
We can quote if you can offer the following information
1. Size: Length, Width, Roof Height, and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated steel sheet or EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and window
6. Surface: Twice anti-corrosive primer + finish painting or Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per clients' requests.
