Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity

Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity

Steel Structure Warehouse EPS Insulation

Q345 Steel Structure Warehouse

Place of Origin:

Guangdong Foshan

Brand Name:

TPA Housing

Certification:

ISO,BV,SGS

Model Number:

TPA-SSW77

Contact Us
Request A Quote
Product Details
Size:
Customized
Material:
Q235 Q345 Low Carbon Steel
Type:
Light
Application::
Storage
Insulation:
EPS, Glass Wool, Rock Wool, PU
Wall/Roof:
Sandwich Panel/Color Steel Sheet
Doors:
Rolling Door / Sliding Door
Windows:
Aluminum/ PVC Sliding Window
Surface:
Painted, Hot-Dip Galvanized
Gutter:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Cost-Effective And Space-Optimized Steel Structure Warehouse For Optimal Storage Capacity

Hot Dipped Galvanized Light Steel Warehouse For Maximum Durability And Protection



Product type: steel structure warehouse



Steel Structure Building Description



The Steel Structure Warehouse is a robust and versatile storage solution designed to meet the demanding requirements of industrial and commercial applications. Constructed using high-quality steel components, this warehouse offers exceptional durability, strength, and longevity.

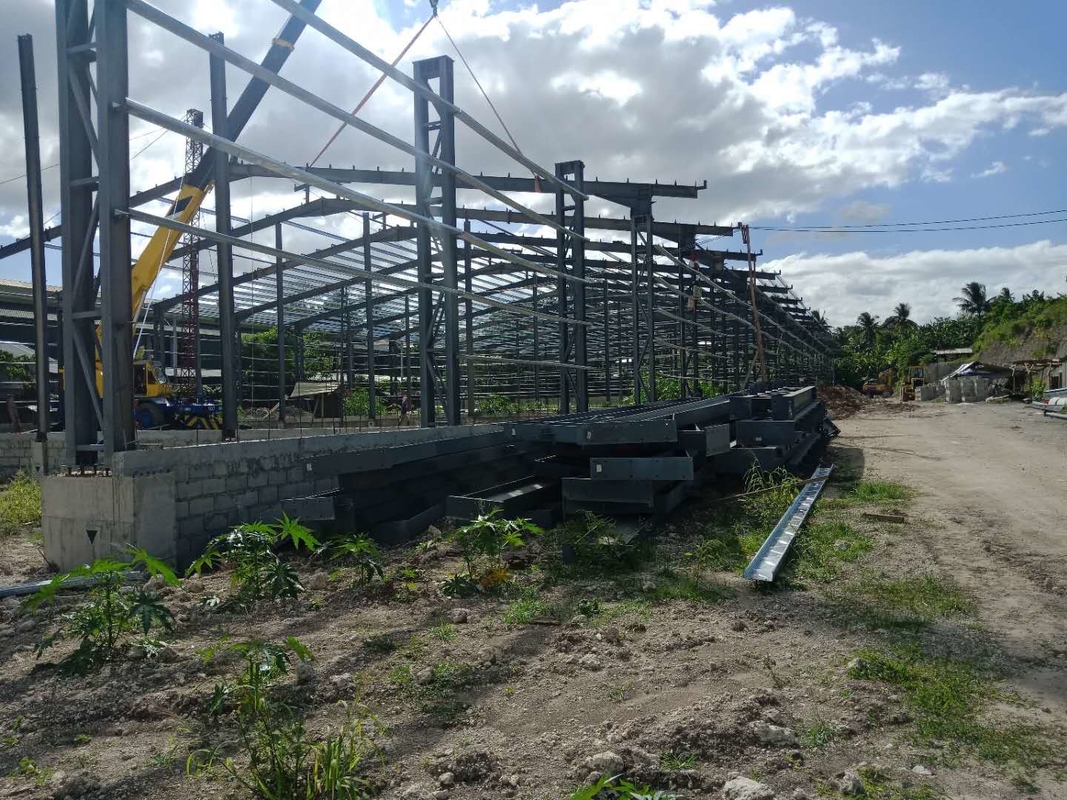

Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity 0

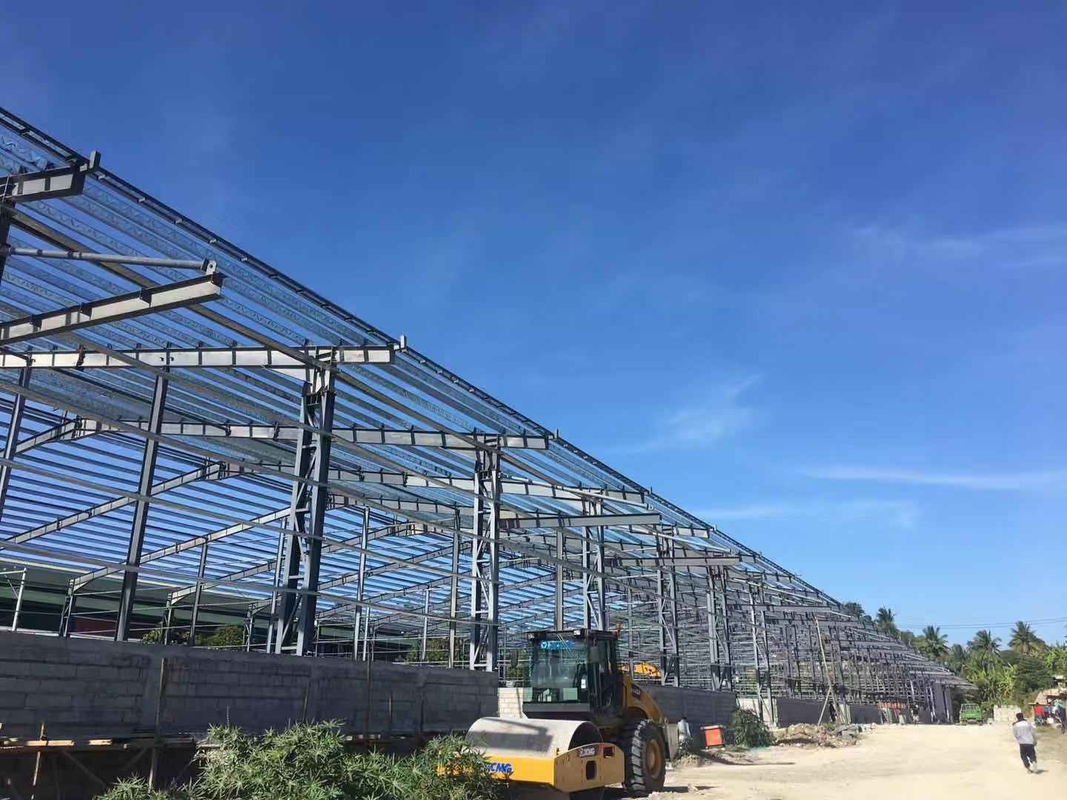

Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity 1





Steel structure warehouse features



* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly



Materials list

Items Specification
Main Steel Frame Column Q235, Q355 Welded H Section Steel,galvanized or painted
Beam Q235, Q355 Welded H Section Steel,galvanized or painted
Secondary Frame Purlin Q235 C and Z purlin,galvanized
Knee brace Q235 Angle Steel,galvanized
Tie Rod Q235 Circular Steel Pipe,galvanized
Brace Q235 Round Bar,galvanized
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe,galvanized
Maintenance system Roof Panel EPS /Glass Fiber /
Rock Wool / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Steel Sheet
Accessories Window Aluminiumn Alloy / PVC Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature.-50°C~+50°C
Certification SGS,ISO9001:2008,ISO14001:2004
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

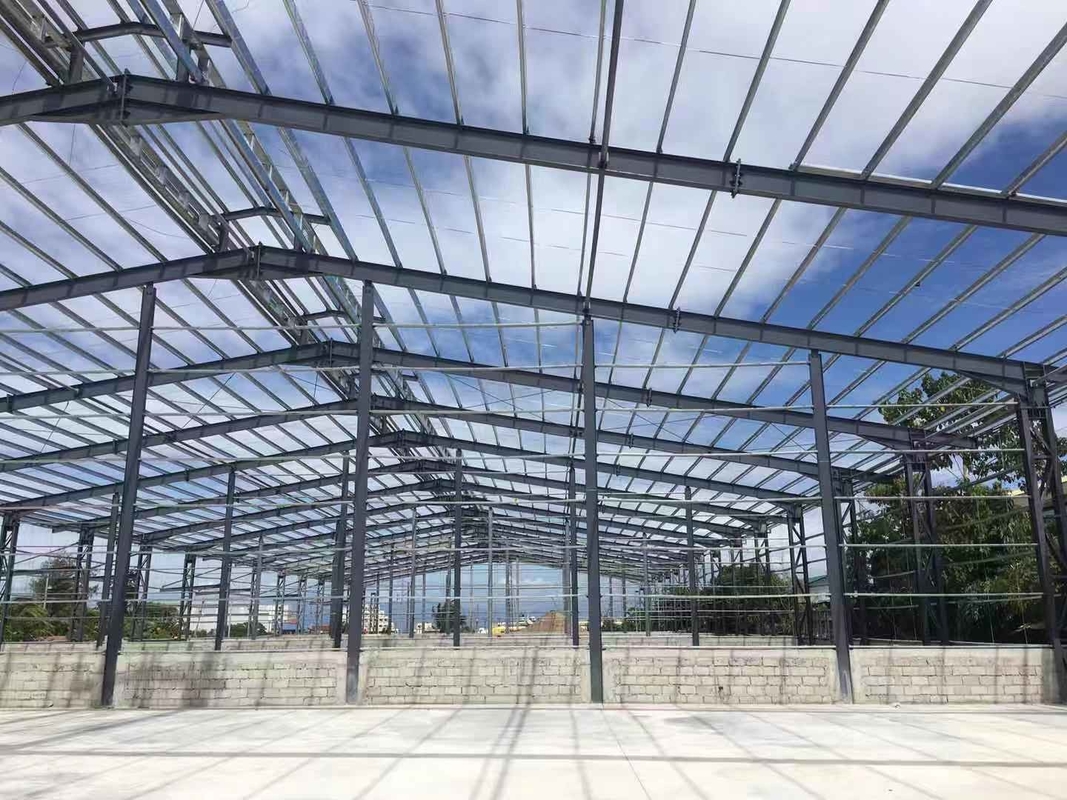

Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity 2



Product Characteristics



1. Large span (6-42 m arbitrarily chosen) without beam purlin, support mid-column. spacious internal clearance is admirable.
2. Cost effective, economical and practical, roof insulation, heat insulation, ventilation and lighting system.
3. Easy transportation and fast installation at site,
water save, no construction waste.
4. Flexible design, wall and roof materials are available, you can open a window or set us the partiontion in where you want.
5. Light weight, long service life,the main steel frame can be last more than 50 years.
6.
Anti-earthquake and waterproof.



Price



Basic Design Requirements: design Load (very important)



1) Snow load:

2) Wind load:

3) Seismic magnitude:

4) Middle Column allowed or not:

5) Project location:

6) Length (side wall, m):

7) Width (end wall, m):

8) Wall Height (eave, m):

9) Mezzanine or not? And usage:





Payment Terms


1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order



Drawings & Quotation


1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.


About US


TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.

For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.



Space Optimized Q345 Steel Structure Warehouse EPS Insulation For Optimal Storage Capacity 3
