Product Details:
|
| Material: | Q235 Q345 Low Carbon Steel | Type: | Light |
|---|---|---|---|
| Wall: | Cement Composite Noard | Size: | Customized |
| Floor: | Floor Deck | Insulation: | EPS, Glass Wool, Rock Wool, PU |
| High Light: | commercial steel frame buildings,pre engineered steel buildings |
||

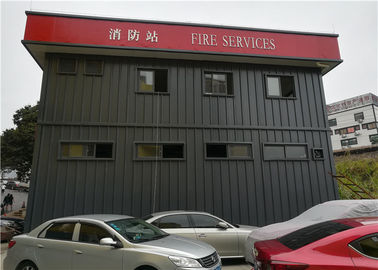

Easy Installation Two Story Light Steel Structure Building For Fire Station
1. Material List
| Anchor bolt | M20 |
| High streng bolt | M20, 10.9s |
| Shear nail | M16 |
| Common bolt | M20 |
| Brace | M12 |
| Tie rod | Ø12 |
| Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) | HN340X250X9X14 |
| Roof frame beam(Q345B) | HN294X200X8X12 |
| Floor main beam(Q345B) | HN294X200X8X12 |
| Floor secondary beam(Q345B) | HN244X175X7X11 |
| Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) | H300X200X6X8 |
| Knee brace | L50X4.0 |
| Roof purlin | C140X60X20X3.0 |
| Connecting plate | 3~8mm |
| Roof tile | 75mm rock wool,color sheet both sides 0.426mm |
| Wall panel | 75mm rock wool,color sheet both sides 0.426mm |
| Floor deck |
1.0mm |
| Steel door |
900*2100 |
| Aluminum windows | 2000*1500 |
| Exhaust fan | 600*600,300*300 |
| Zinc steel handrails | Square tube80X40+40+30+20 |
| Trimming | 1.0mm galvanized sheet, color steel sheet |
2. Steel Structure Building Description
Steel structure building warehouse/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
3. Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction ,easy installation and convenient to transport.
4. Steel Structure Building materials display
5. Steel structure picture and drawing for reference
6. Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
7.About US
TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
8. Products & Service Scope:
Design& Engineering service, steel building, space frames, portable cabins, tubular steel structures, basic building elements (built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, tempcon (sandwich) panels
9. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
10. Market:
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
We'd love to give fully support for your further inquiry!
