Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SFS15
High rise prefabricated construction frame sandwich panel steel structure storage
Steel Structure Building Description
Steel structure building warehouse/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Our professional engineers design the most durable metal building kits for easy erection. Can be used for various uses such as garages, warehouses, workshops, sheds, prefab homes, storage, hangars and more. Can meet any Commercial, Industrial, Agricultural or Residential application and can be customized for unique solutions as well.
Material List
Name of material | Specification and material |
Embedded parts | M30 |
High strength bolt | M20,10.9S |
Common bolt | M16 |
Galvanized bolt | M12 |
Shear nail | M16 |
Steel column(Q345B) | HN600X200X10X15 |
Steel column(Q345B) | HN300X150X6.5X9 |
Roof column(Q345B) | HN350X175X6X9 |
Floor main beam(Q345B) | HN500X200X9X14 |
Floor second beam(Q345B) | HN350X175X6X9 |
Stair | 16-bar+2.5mm chequered plate |
Tie rod | 89*3.0 |
Horizontal support | 16 |
Roof purlin(Galvanized) | C180*60*20*2.0 |
Wall purlin(Galvanized) | C180*60*20*2.0 |
connecting plate | 6mm~20mm steel sheet |
Ancillary material | Acetylene, oxygen, electrode |
Play sand | Sa2.5 |
Paint | 2 times Spray Paint |
Roof Tile- Rock wool Sandwich panel | 50mm color steel thickness: 0.426 |
FRP Skylight panel | Fiber Glass Reinforced Polyester |
Outside wall panel --Rock wool Sandwich panel | 50mm color steel thickness: 0.426 |
Floor deck | 1.5mm Galvanized steel sheet |
Stair handrail & Mezzanine floor handrail | square tube 80*40+40+30+20 |
Gutter | 2.0mm Galvanized Gutter |
Down pipe | 110PVC |
Trimming | 1.0mm galvanized steel sheet |

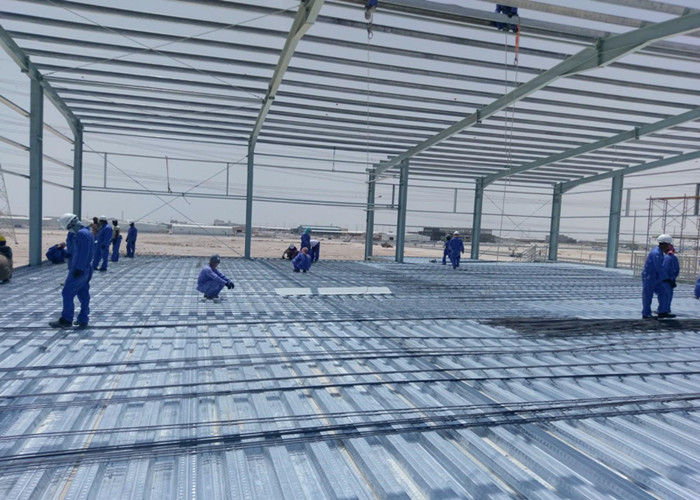

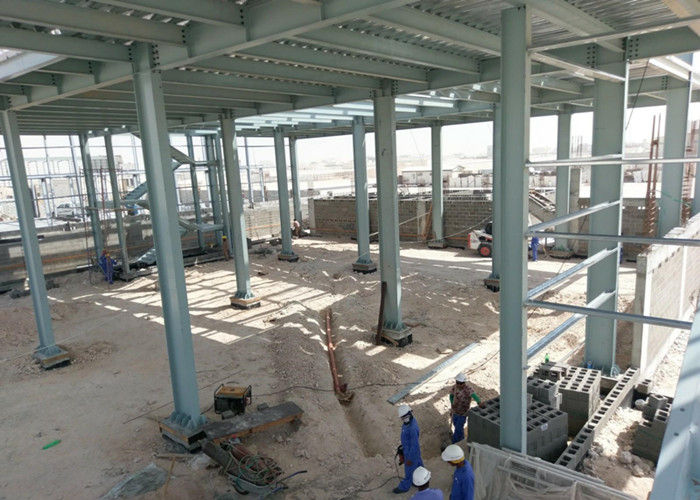

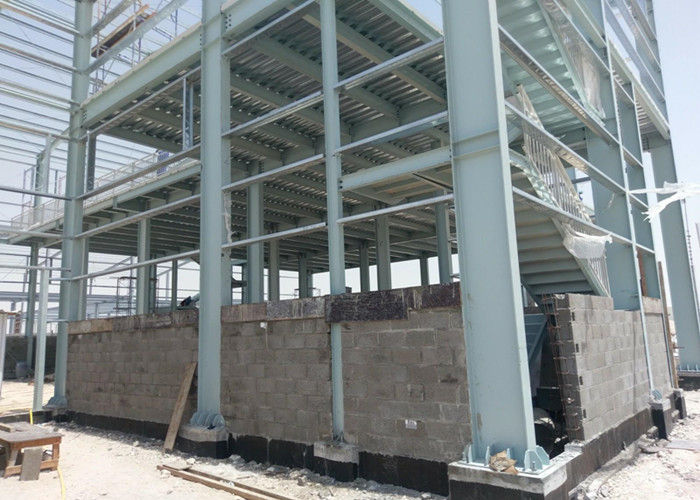

Steel Structure Building materials display
Product Characteristics
1.Low maintenance costs
2.Environmentally friendly, recycling.
3.Flexibility when fixing doors, windows and interior partitions
4.Steel structure construction is strong, durability and stability.
5.steel components is resistant to termites and other destructive insects.
6.Long service life for more than 50 years
7.Fast construction ,easy installation and convenient to transport.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
About US
TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
Drawings & Quotation
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
If you are interested in steel structure building or need a building price, call today !
