Stainless Light Steel Structure Building Working Places With Sandwich Panel Wall
  • Stainless Light Steel Structure Building Working Places With Sandwich Panel Wall

Stainless Light Steel Structure Building Working Places With Sandwich Panel Wall

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO,BV,SGS
Model Number TPA-LSB20
Product Details
Material:
Q235 Q345 Low Carbon Steel
Type:
Light
Wall:
Sandwich Panel
Size:
Customized
Floor:
Floor Deck
Insulation:
EPS, Glass Wool, Rock Wool, PU
High Light:

light gauge steel construction

,

pre engineered steel buildings

Payment & Shipping Terms
Minimum Order Quantity
50 square meters
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Good quality stinless light steel structure frame building for working





1. Material List



Anchor bolt M20
High streng bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Knee brace L50X4.0
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool,color sheet both sides 0.426mm
Wall panel 75mm rock wool,color sheet both sides 0.426mm
Floor deck

1.0mm

Steel door

900*2100

Aluminum windows 2000*1500
Exhaust fan 600*600,300*300
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet





2. Steel Structure Building Description



Steel structure building warehouse/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.





3. Product Characteristics



1.Low maintenance costs

2.Environmentally friendly, recycling.

3.Flexibility when fixing doors, windows and interior partitions

4.Steel structure construction is strong, durability and stability.

5.steel components is resistant to termites and other destructive insects.

6.Long service life for more than 50 years

7.Fast construction ,easy installation and convenient to transport.





4. Basic Design Requirements: design Load: (very important)



1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:




5. Building Purpose: we will recommend the best design for the purpose of the building



A. Warehouse/Storage

B. Factory
C. Agriculture Barn

D. Retail Store
E. Repair/Mechanic Shop

F. Office Space
G. Medical Warehouse

H. Animal Farm (please confirm what kind of animal)



6. About US


TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.

For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.





7. Drawings & Quotation:


1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.





8. Market:


Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.




9. Steel Structure Building materials display



Stainless Light Steel Structure Building Working Places With Sandwich Panel Wall 0

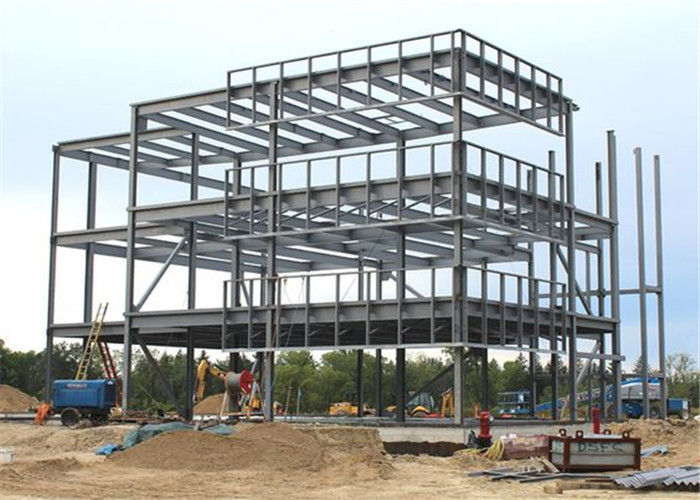

10. Steel structure picture and drawing for reference



Stainless Light Steel Structure Building Working Places With Sandwich Panel Wall 1
