Product Details:
|
| Steel Standard: | Q235 And Q345 | Size: | Up To Customers' Requirement |
|---|---|---|---|
| Roof&wall Material: | Steel Sheet Or Sandwich Panel | Insulation: | EPS, Glass Wool, Rock Wool, PU |
| Thickness: | 50mm/75mm/100mm/125mm/150mm | Windows: | Aluminum/ PVC Sliding Window |
| Doors: | Rolling Door Or Sliding Door | Color: | Up To Customers' Requirement |
| High Light: | steel warehouse buildings,prefabricated warehouse buildings in steel |
||
Product Description
Product type: steel structure warehouse
Steel Structure Building Prefabricated Design Warehouse Plant For Sale
Steel structure warehouse is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Steel structure warehouse materials component
| Embedded parts | M24/M27/M30 |
| High strength bolt / Common bolt /Turn buckle /Galvanized bolt | M20 |
| Steel column(Q235B) | HN(200~500)*200*9*14 |
| Wind column(Q235B) | HN(198~400)*200*7*11 |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
| Tie rod | ∅89/114*3.0 steel bar |
| Horizontal bracing | ∅20/22/25 steel bar |
| Column bracing | ∅20/22/25 steel bar |
| Roof purlin (galvanized) | C160/180/220*2.0 |
| Wall purlin (galvanized) | C160/180/220*2.0 |
| Connecting plate | 3mm～12mm steel sheet |
| Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Gutter | PVC/Galvanized steel materials |
| Down pipe | ∅110 PVC materials |
| Electric galvanized rolling gate | W5000*H5000(customized size) |
| Sandwich panel door | W800*H2100(customized size) |
| Window | PVC/Aluminum sliding window W1100*H1200(customized) |
| Trimming | 1.0mm galvanized/ steel sheet |
Steel structure warehouse features
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
Drawings & Quotation
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
Price
We can quote if you can offer the following information:
| Item Name | |
| Size | Length,Width,Roof Height and Eave Height |
| Column and Beam | Hot rolled or welded H section beam |
| Purlin | C-section and Z-section |
| Roof and Wall |
Single layer corrugated sheet sheet or EP/Rock Wool/PU sandwich panel |
| Door and Window | Rolling up / sliding / side-hung door and window |
| Surface | Painting or Hot-dipped galvanized |
| Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have |
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completed. Always install several section to ensure no problems to installation

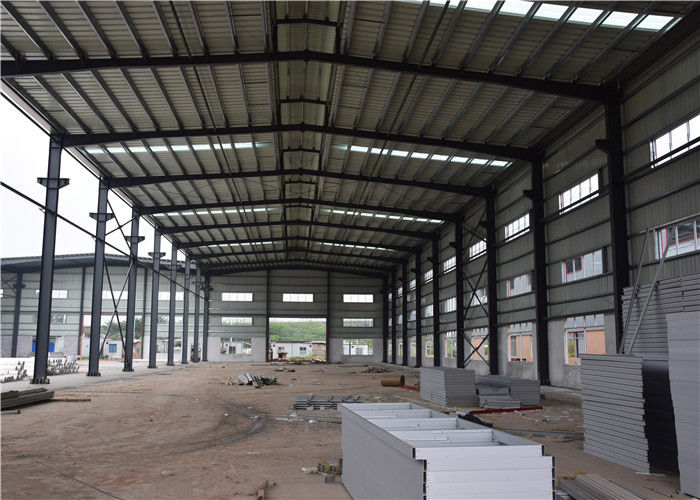

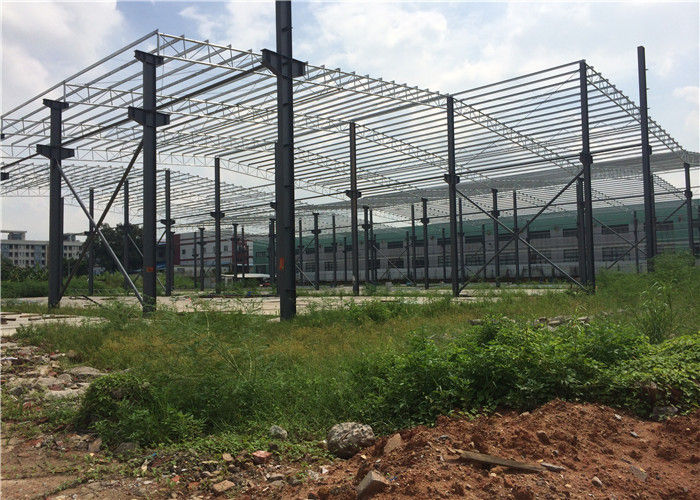

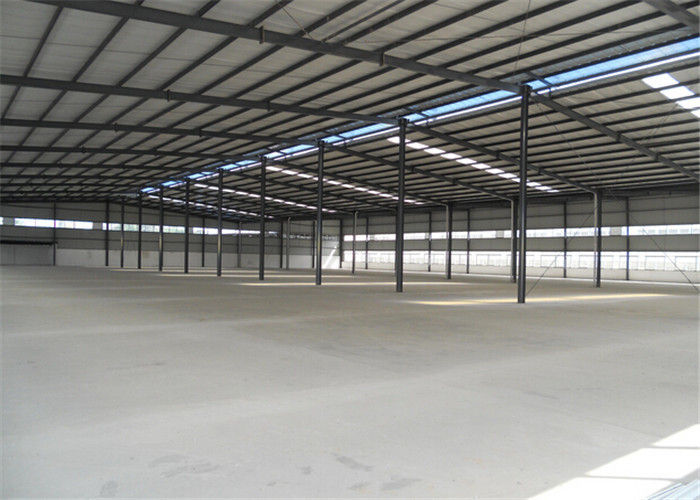

Steel structure warehouse pictures display
