Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood
  • Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood
  • Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood
  • Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood
  • Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood

Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO,BV,SGS
Model Number TPA-SFS10
Product Details
Keyword:
Steel Construction Warehouse
Steel Frame:
Q235 Q345 Section Steel
Wall And Roof:
Sandwich Panel/Color Steel Sheet
Insulation:
EPS, Glass Wool, Rock Wool, PU
Thickness:
50mm 75mm 100mm 125mm 150mm
Processing Service:
Welding, Cutting
Wind Loading:
Customize
Surface Treatment:
Hot-dipped Galvanized
Purlin:
Q235, C Type Purlin
Volume:
250-450㎡ For One 40HC Shipping Container
High Light:

prefab storage buildings

,

steel structure storage

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood



Product description

The steel structure is a light steel structure product, the main structure is a cold-formed thin-wall steel component by bolt connection, one unit can achieve 12 to 18 meters in span, and it could be also combined with another unit by span each other, to achieve more than span space. Compared with the traditional steel structure, it owns simple architecture, low-cost material, small dimension transport, steel structure lifespan can be up to 50 years and can be used repeatedly.

The steel structure is widespread, it can be used in small and medium-sized factories, warehouses, workshops, storage, exhibition halls, large and medium-sized restrooms, repair shops, etc.


Product material list



Name of material Specification and material
Embedded parts M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Steel column(Q345B) HN600X200X10X15
Steel column(Q345B) HN300X150X6.5X9
Roof column(Q345B) HN350X175X6X9
Floor main beam(Q345B) HN500X200X9X14
Tie rod 89*3.0
Horizontal support 16
Roof purlin(Galvanized) C180*60*20*2.0
Wall purlin(Galvanized) C180*60*20*2.0
connecting plate 6mm~20mm steel sheet
Roof Tile- Rock wool Sandwich panel 50mm color steel thickness: 0.426
Outside wall panel --Rock wool Sandwich panel 50mm color steel thickness: 0.426
Gutter 2.0mm Galvanized Gutter
Downspout 110PVC
Trimming 1.0mm galvanized steel sheet

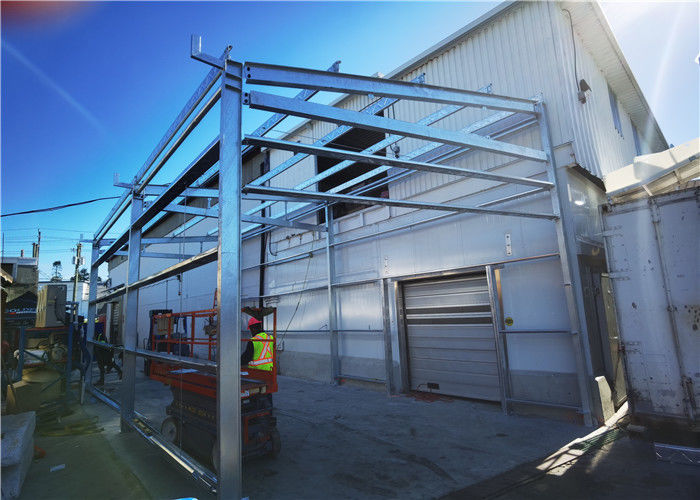

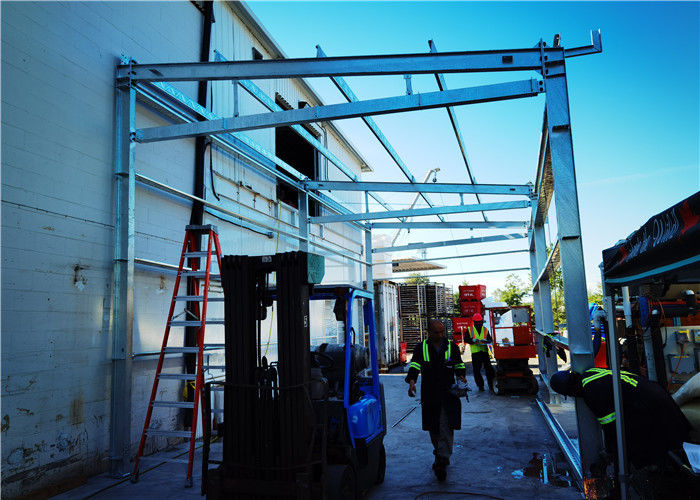

Steel structure building materials display

Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood 0

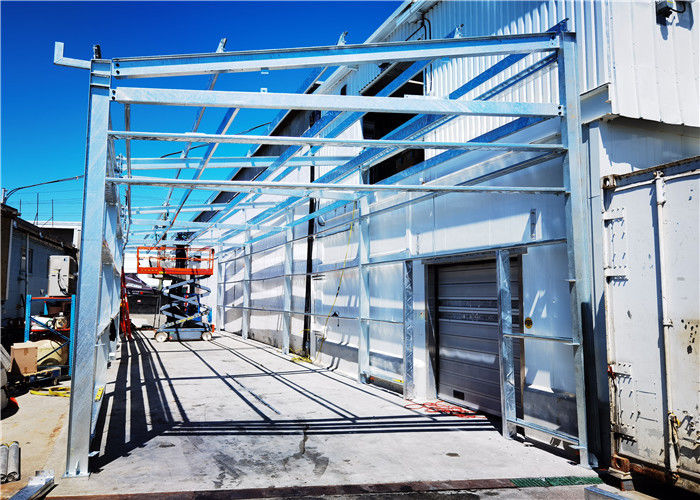

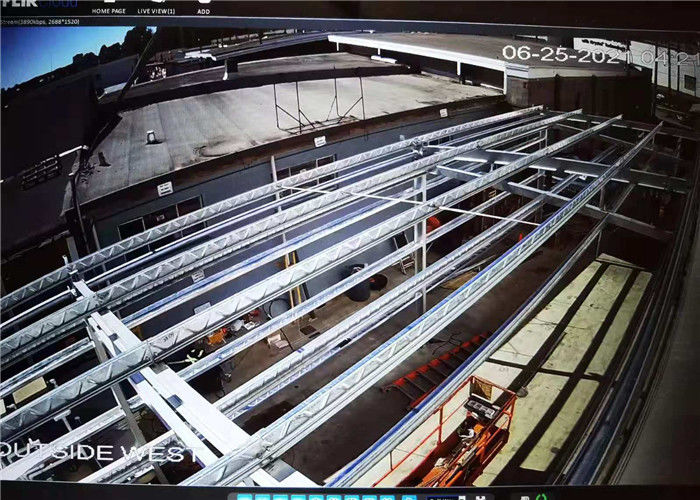

Installation

Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood 1

About us

TianPuAn Building Materials Technology Co., Ltd., is founded in 2008. Since then, we have been a professional manufacturer of steel structure buildings, container houses, prefabricated houses, railings, light steel villas, sandwich panels and profiled steel with ISO9001&SGS certification. We have two production workshops with a total area of 20,000 sqare meters plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been positions our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our overseas business. Luckily, we have a good team who profession in design, installation and export. We believe on the basis of what we have done domestically, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.

Single Slope Roof Hot-Dipped Galvanized Steel Frame Metal Storage Building For Seafood 2


Our service



1- Customized design service

2- Quality Assurance Service

* Safety packing

* Insurance services

* Inspection before shipment

3- After-sales service

* Engineer guide on site

* Installation team service

* Email/phone call communication


Free steel building quote

Please provide as much information as possible about your future building plans and an online free price quote will be prepared for you immediately. Be sure and include your building site’s location in order to generate an accurate quote. If you are not sure of your building plans, leave your contact information and a qualified representative at TPA housing will contact you to discuss your needs. Your representative will work with you to meet any design or budget challenge and begin working towards a solution to simplify the building process.

Payment Terms

1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order

Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
