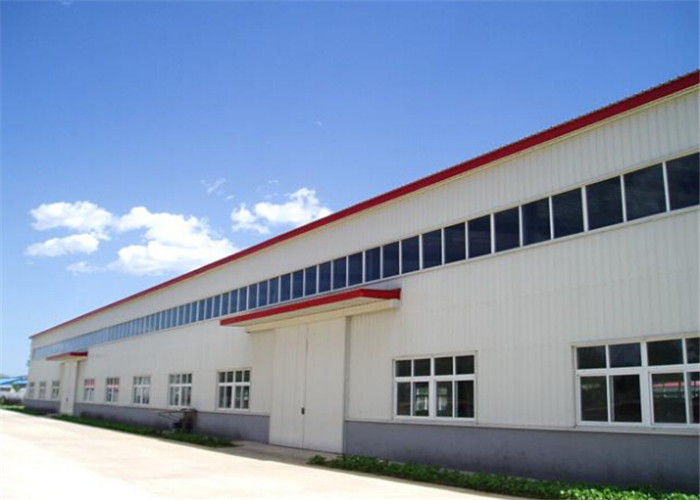

Prefabricated steel warehouse & garage steel workshop buildings kits with crane
Product Description
Product type: steel workshop buildings
We supply steel structure buildings, Frame, Beam, Roof Construction in China.Steel structure nowdays is very popular,and it has been in use for a wide range of commercial, industrial, agricultural, residential and recreational applications.
Steel Commercial Buildings vs Traditional Commercial Buildings
STEEL COMMERCIAL BUILDING PROS
Design flexibility allows for future expansion
Simple bolt-together construction saves time and money
50-year structural warranty no matter the location or size of building
Process performance of steel
The processing of steel into the required structural components requires a series of processes, including various machining (milling, planing, hole making), cutting, cold, heat correction and welding.
Steel structure building feactures:
1. Steel structural components are produced in the factory, reducing on-site workload, shortening construction period.
2. light weight, high strength, the weight of the house built with steel structure is about 1/2 of the reinforced concrete house.
3. Steel can be recycled, and there is less environmental pollution when it is built and removed.
4. safety and reliability, good seismic and wind resistance, strong load capacity.
Steel workshop buildings materials component :
| Main Steel Frame | H section steel | Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface processing | Alkyd paint or galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Belt bar | Φ89*3, Steel Q235, processed and painted | |
| Small brace | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Outer-roof panel | Sandwich panel or corrugated steel plate | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Gutter | Made from 0.8mm thick sheet steel | |
| Rainspout | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Ventilation equipment | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |
Our services
1. Project Services
Simple or complex,our specical project services team quickly an expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high quality metal building system under your brand name.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal
buildings.
Steel structure projects we have undertaken recently
Steel Buildings for Sale at the Best Prices,just choosing the Right Building for You~
We'd love to give fully support for your further inquiry!
