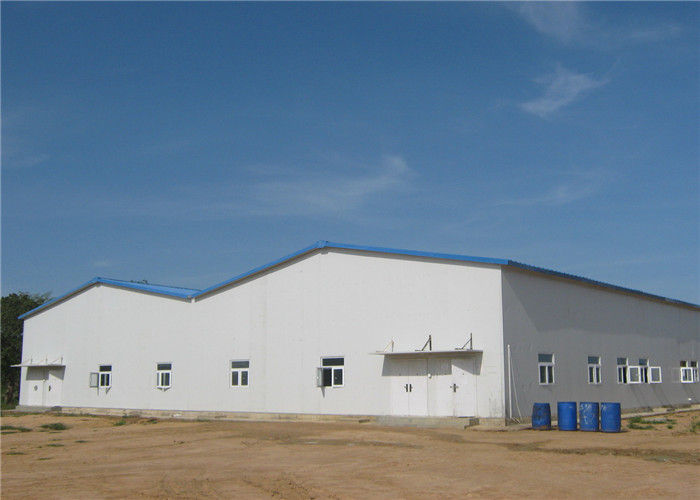

Double Span Light Weight Steel Frame Storage Buildings Construction Project
  • Double Span Light Weight Steel Frame Storage Buildings Construction Project

Double Span Light Weight Steel Frame Storage Buildings Construction Project

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO,BV,SGS
Model Number TPA-SFS6
Product Details
Keyword:
Steel Structural Workshop
Type:
Light Steel
Steel Frame:
Q235 Q345 Low Carbon Steel
Wall And Roof:
Sandwich Panel/Color Steel Sheet
Insulation:
EPS, Glass Wool, Rock Wool, PU
Thickness:
50mm 75mm 100mm 125mm 150mm
Doors:
Rolling Door Or Sliding Door
Windows:
Aluminum/ PVC Sliding Window
High Light:

steel storage buildings

,

prefab storage buildings

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description



Double Span Light Weight Steel Frame Storage Buildings Construction Project​



Product description



The steel structure is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, one unit can achieve 12 to 18 meters in span, and it could be also combined with another unit by span each other, to achieve more than span space. Comparing with the traditional steel structure, it owns simple architecture, low cost material, small dimension transport, steel structure lifespan can be up to 50 years, it can be used repeatedly.

The steel structure is widespread, it can be used as small and medium-sized factories, warehouses, workshop, storage, exhibition halls, large and medium-sized restrooms, repair shops, etc.


Product material list



Name of material Specification and material
Embedded parts M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Steel column(Q345B) HN600X200X10X15
Steel column(Q345B) HN300X150X6.5X9
Roof column(Q345B) HN350X175X6X9
Floor main beam(Q345B) HN500X200X9X14
Tie rod 89*3.0
Horizontal support 16
Roof purlin(Galvanized) C180*60*20*2.0
Wall purlin(Galvanized) C180*60*20*2.0
connecting plate 6mm~20mm steel sheet
Roof Tile- Rock wool Sandwich panel 50mm color steel thickness: 0.426
Outside wall panel --Rock wool Sandwich panel 50mm color steel thickness: 0.426
Gutter 2.0mm Galvanized Gutter
Down pipe 110PVC
Trimming 1.0mm galvanized steel sheet


Steel structure building materials display

Double Span Light Weight Steel Frame Storage Buildings Construction Project 0


Steel provides several advantages over other building materials, such as wood:



1. Steel is structurally sound and manufactured to strict specifications.

2. Any excess material is 100% recyclable.

3. Steel does not easily warp, buckle, twist or bend, and is therefore easy to modify and offers design flexibility.

4. Steel is also easy to install.

5. Steel is cost effective and rarely fluctuates in price.

6. Steel allows for improved quality of construction and less maintenance, while offering improved safety and resistance.

7.With the propagation of mold and mildew in residential buildings, using steel minimizes these infestations. Mold needs moist, porous material to grow. Steel studs do not have those problems.


Installation

Double Span Light Weight Steel Frame Storage Buildings Construction Project 1


About US

TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.

Double Span Light Weight Steel Frame Storage Buildings Construction Project 2


Our service



1- Customized design service

2- Quality Assurance Service

* Safety packing

* Insurance services

* Inspection before shipment

3- After-sales service

* Engineer guide on site

* Installation team service

* Email/phone call communication


Free steel building quote

Please provide as much information as possible about your future building plans and an online free price quote will be prepared for you immediately. Be sure and include your building site’s location in order to generate an accurate quote. If you are not sure of your building plans, leave your contact information and a qualified representative at TPA housing will contact you to discuss your needs. Your representative will work with you to meet any design or budget challenge and begin working towards a solution to simplify the building process.

Payment Terms

1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order

Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
