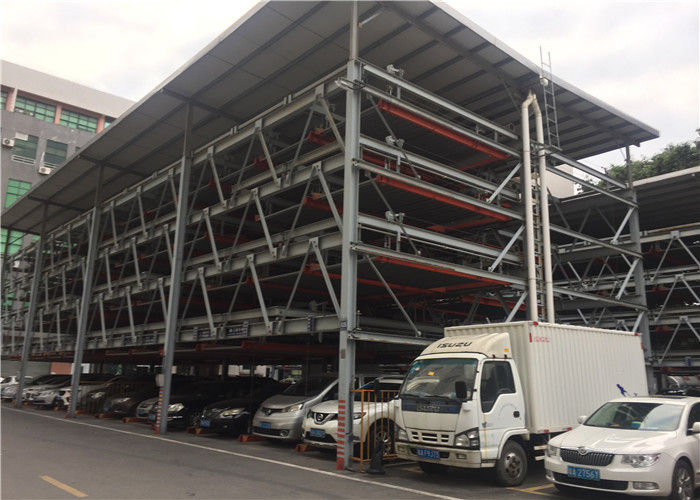

Multi Storey Floor Deck Metal Parking Structures , Car Parking Design Architecture

Multi Storey Floor Deck Metal Parking Structures , Car Parking Design Architecture

parking garage structure

metal parking structures

Place of Origin:

Guangdong Foshan Lishui, China

Brand Name:

TPA Housing



Model Number:


Contact Us
Request A Quote
Product Details
Q235 Q345 Low Carbon Steel
Product Name:
Car Park Shade Structure
Life Span:
Steel Frame About 50 Years
Structural Steel Fabrication:
Payment & Shipping Terms
Minimum Order Quantity
50 square meters
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Prefabricated Multi-storey Floor Deck Steel Car Parking Shade Structures​


Visit any major city, and steel is front and center - everything from girder slabs to staggered trusses on construction sites - as the skyline undergoes yet another change. Noting its highest strength-to-weight ratio and the capability to accommodate long spans and open-bay footprints, we expect this remarkable material to work its magic in the creation of looming skyscrapers and landmark buildings. However, steel also delivers when it comes to what might be considered more mundane architecture: parking structures.


1. What is steel structure?


Steel structure is a metal structure which is made of structural steel* components connect with each other to carry loads and provide full rigidity. Because of the high strength grade of steel, this structure is reliable and requires less raw materials than other types of structure like concrete structure and timber structure.

In modern construction, steel structure is used for almost every type of structure including heavy industrial buildings, multi-storey buildings, equipment support systems, infrastructure, bridges, towers, airport terminals, etc.
2. Why choose steel parking structures?


*Long Spans
Space availability for parking structures is often restricted, confined, and misshaped, but the design opportunity in steel is to optimize space usage through long open spans. Although long spans - typically 55 to 65 feet - may increase weight, the cost (due to fabrication and erection efficiencies) can be reduced by as much as 10 percent over conventional methods. Advantages of long spans include:

  • Column-free areas that simplify maintenance and improve illumination.
  • Less opportunity for damage to automobiles.
  • More openness and improved effect (safety/comfort) for patrons.
  • Greater flexibility to re-stripe stalls.
  • Fewer spaces lost to careless parkers in three-car bays.

Restrictions of space and accessibility of irregularly shaped or small sites, as well as limited foundation depths, can be addressed by incorporating lightweight steel frames in parking structures.


*Ease of Maintenance
Today’s modern protective coatings and/or high-performance paint systems protect steel-framed parking structures for 30 to 50 years, with merely minimal touch-ups. The open and readily accessible steel frame - a “standard” - simplifies surface inspection and maintenance.



3. Basic Design Requirements: design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
4. A steel structure building can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!


5. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.


6. Material list component


Embedded parts M30
High strength bolt M20, 10.9s M16,8.8S
Main beam(Q345B) HN800X300X14X22
Secondary beam(Q235B) HN200X100X4.5X7, [8 steel channel
Connecting plate 3~12mm
Floor deck 1.0mm
Fence 1.2m high zinc steel guardrail
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5

7.Loading pictures reference
Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
Multi Storey Floor Deck Metal Parking Structures , Car Parking Design Architecture 0
8. Steel Structure Building materials and accessories
Multi Storey Floor Deck Metal Parking Structures , Car Parking Design Architecture 1
Multi Storey Floor Deck Metal Parking Structures , Car Parking Design Architecture 2
