Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SSP4
Steel Structure Frame Subway Track Maintenance Steel Platform In Xiamen
Product description
Steel structure building is a metal structure fabricated with steel for internal support and for exterior cladding, as opposed to steel framed buildings which generally use other materials for floors, walls, and external decoration. Steel buildings are used for a variety of purposes including storage, work spaces and living accommodation. They are classified into specific types depending on how they are used.
Steel structure platform is available in a variety of forms and functions. The largest feature of the structure is the fully assembled structure, which is flexible in design. It can design and manufacture steels that meet the site requirements, functional requirements and meet logistics requirements according to different site conditions.
The platform structure usually consists of steel plate, main and secondary beams, columns, column support, stairs and railings.
Platform material list
Embedded parts | Anchor bolt | M24 |
Chemical bolt | M16 | |
High-strength bolts | M20 | |
Common bolt | M16 | |
Common bolt | M12 | |
Shear nail | M16 | |
Steel frame parts | Steel column(Q345B) | H400X250X6X10 |
Main beam(Q345B) | H500X250X6X10,H400X200X6X8 | |
Secondary beam | [20a channel @1220 C100X2.0@407 | |
Staircase | [20a channel + 5mmchequered plate | |
galvanized mesh | 2mm thickness | |
Connection plate |

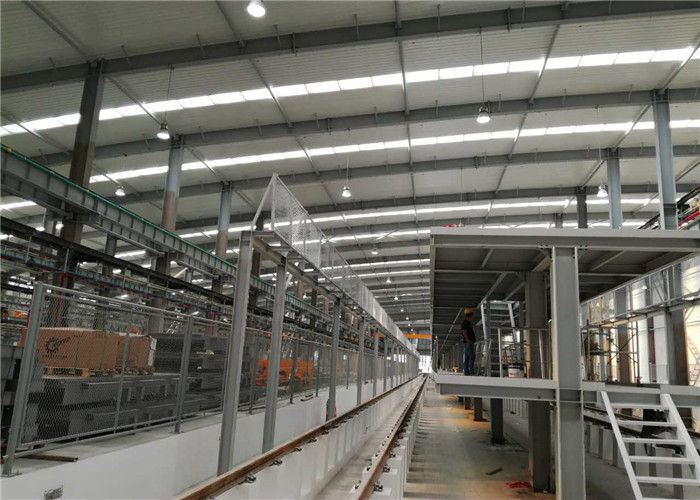

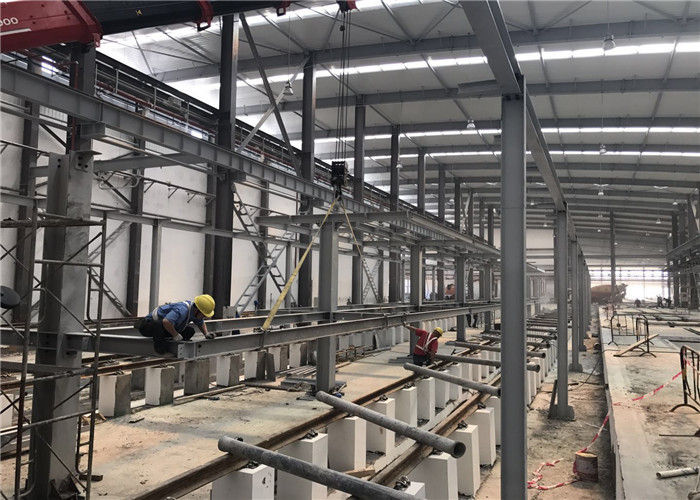

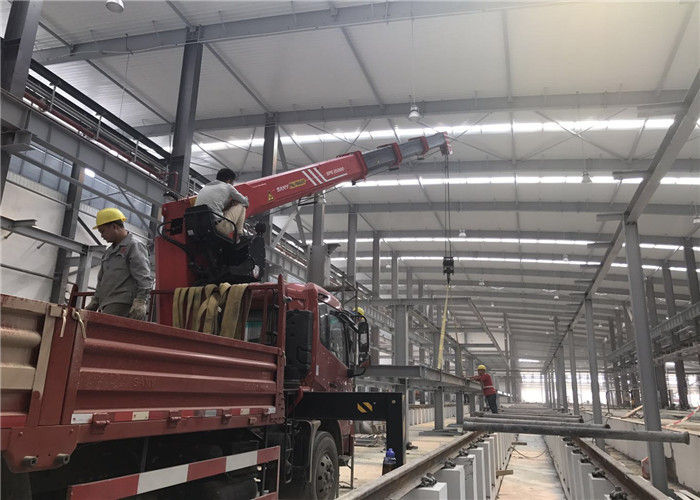

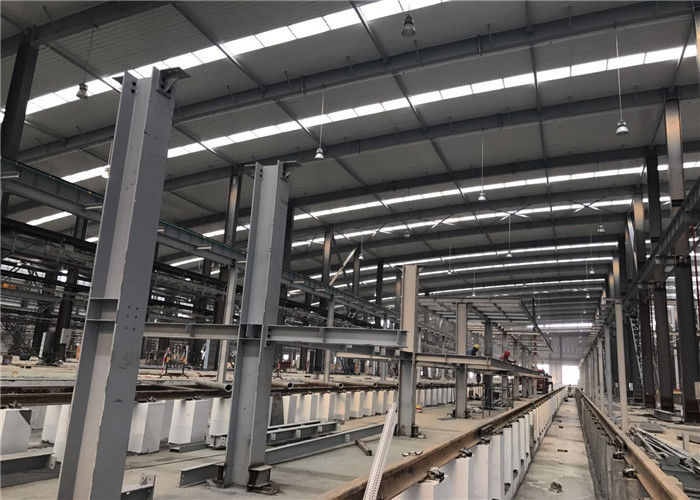

Product display
Steel structure platform plans for reference
Why steel ?
1. Steel can be recycled. Rather than paying landfill fees for non-recyclable construction waste, your company will be able to recycle steel and metal building components.
2. Steel is so durable, and requires so little maintenance, it is a more economic choice for building owners.
3. Innovation in steel production, combined with greater competition to meet rising steel demands, has brought steel prices lower than they've been in twenty years.
4. Due to a steel structures' almost unrivaled ability to withstand high winds, heavy snow loads, fire and seismic activities, combined with their resistance to pests and decay, insurance companies often offer lower premiums on policies underwritten for metal buildings.
5. Faster construction times means fewer interest payments to the lender, who typically requires that interest-payments are made through the duration of the construction process.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers and platform etc.
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication
Price
We can quote if you can offer the following information:
1) Length (side wall, m)?
2) Width (end wall, m)?
3) Wall Height (eave, m)?
4) Middle Column allowed or not?
5) Project location?
6) Snow load?
7) Wind load?
8) Seismic magnitude?
9) Mezzanine or not? And usage?
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completed. Always install several section to ensure no problems to installation
Loading
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
Call us today to get started with your steel building project !
