Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory

Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory

prefab container house

prefab sandwich panel house

Place of Origin:

Nanhai, Foshan, Guangdong

Brand Name:

TPA Housing

Certification:

ISO,SGS,BV

Model Number:

TPA-ST008

Contact Us
Request A Quote
Product Details
Features:
Waterproof, Fireproof, Earthquake Resistance
Use/application:
Workshop,Warehouse,Factory
Door:
Aluminum Alloy Door, Steel Door, Sandwich Panel Doo
Windows:
Aluminum Sliding Window+Security Mesh
Roof & Wall:
EPS Sandwich Panel
Size:
Customerized
Cladding Thickness:
0.326/0.376/0.426/0.476mm
Main Structural Life Span:
About 50 Years
Payment & Shipping Terms
Minimum Order Quantity
1 units
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C
Supply Ability
100000 square meters per month
Product Description



Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory



Product type: Steel Structure Warehouse





Product Description

A steel structure warehouse building is crafted from steel. From the beams to the columns, these steel warehouses are meant to provide a sturdy warehouse but without the costs of a traditional warehouse. This type of infrastructure is more cost-effective and lightweight, making them much easier to put up if you are in a hurry or you are on a budget. Its advantages are convenience on transportation and installation, beautiful appearance, generous, max stack 3 floors, excellent seismic performance.

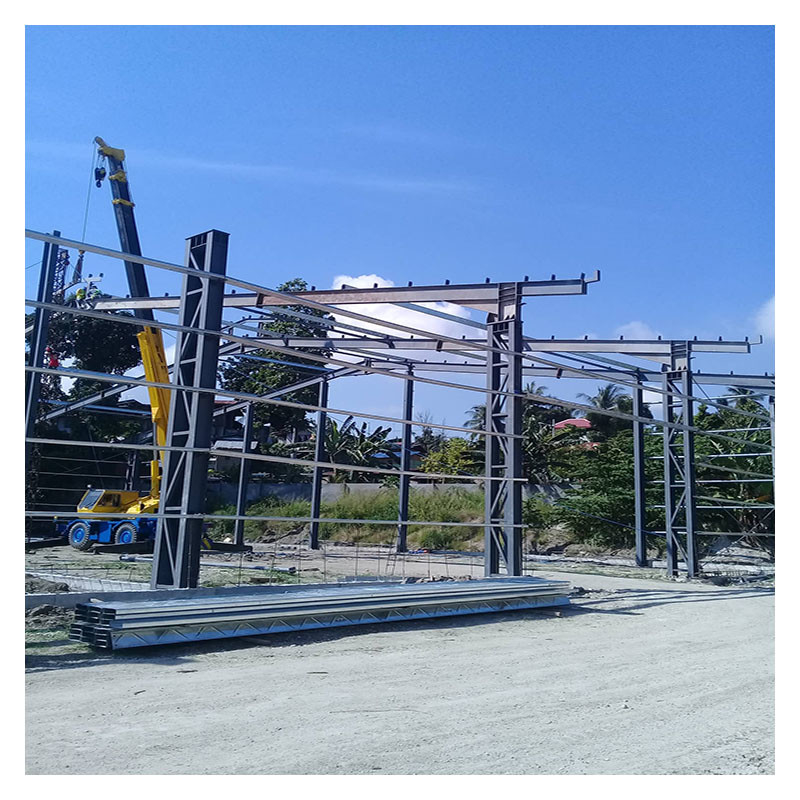

Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory 0

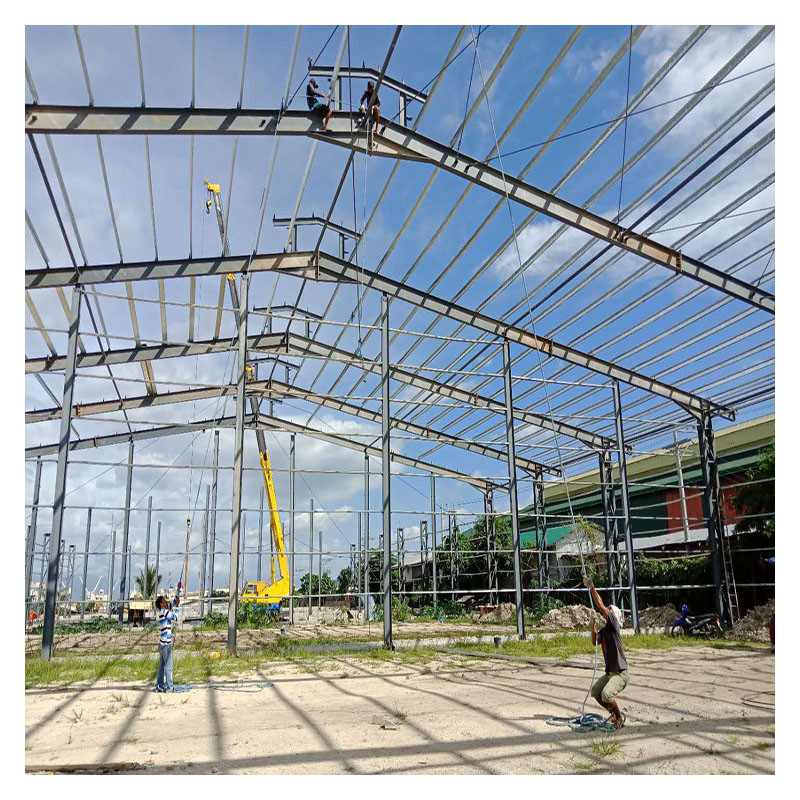

Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory 1

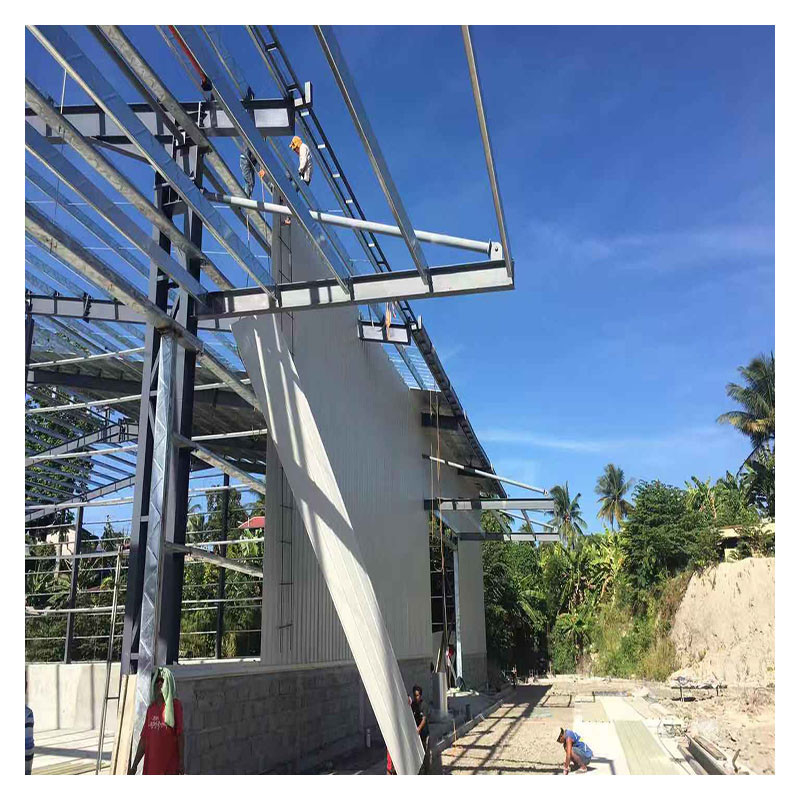

Philippine Steel Structure For Wide Expanse Of Workshop Warehouse Factory 2

Steel Structure Construction Warehouse for industry Material Specification

Main Steel Frame H section steel Q345 steel 8mm/10mm
  Welding Automatic submerged arc welding
  Rust removal Sand blasting
  Surface processing Alkyd paint or galvanized
  Intensive bolt Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
  Cross support Φ20, Steel Q235, processed and painted
  Belt bar Φ89*3, Steel Q235, processed and painted
  Small brace Φ12,Steel Q235, processed and painted
  Ordinary bolt Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
  Outer-roof panel Sandwich panel or corrugated steel plate
  Transparent lighting panel 6mm thick PVC
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Gutter Made from 0.8mm thick sheet steel
  Rainspout Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
  Wall sandwich panel or corrugated steel plate
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Axial fan Axial fan
  Doors & windows Rolling door/sliding door PVC/alu/steel window



TPA-HOUSING


We focus on producing custom-made economic and environmentally friendly prefab houses. With the specialized technology, professional design team, and high-quality construction team, we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.





FAQ



1. What's your delivery time?
The normal order delivery time is 2-30 days after receiving the deposit.
Big order delivery time should confirm with the order management dept.

2. What is your payment term?
30% deposit in advance, balance before shipment.

3. Is it difficult to build a prefab house?
Easy to install, installation video and guide book send to you showing how to fast installation.
Or we can send the engineer or installation team to the construction site.



We'd love to give full support for your further inquiry!
