Place of Origin:
Guangdong,China
Brand Name:
TPA housing
Certification:
TPA-SSW35
Model Number:
TPA

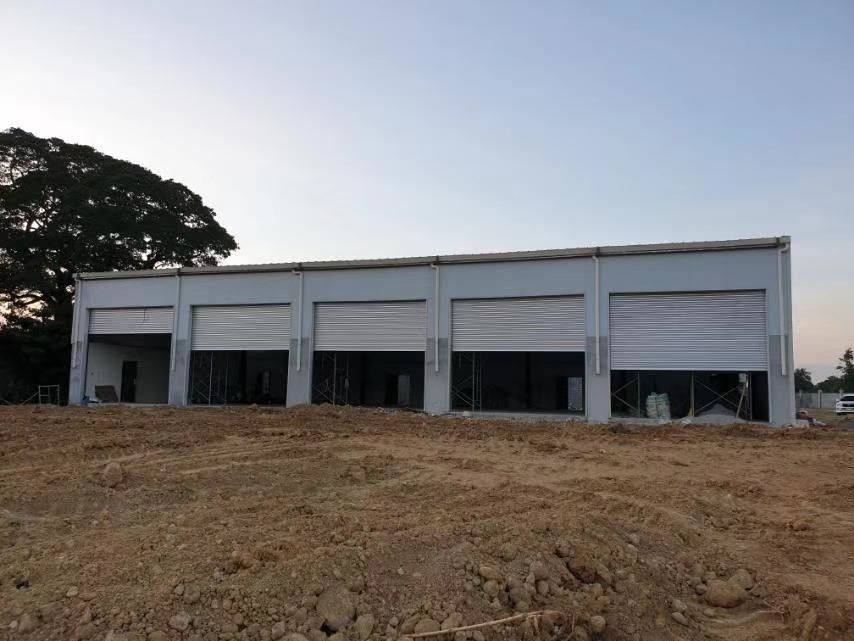

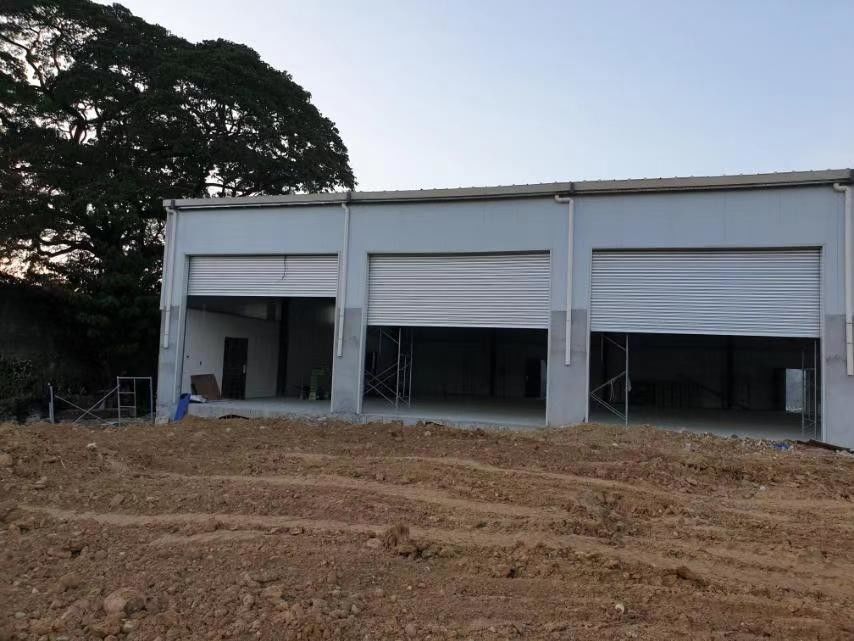

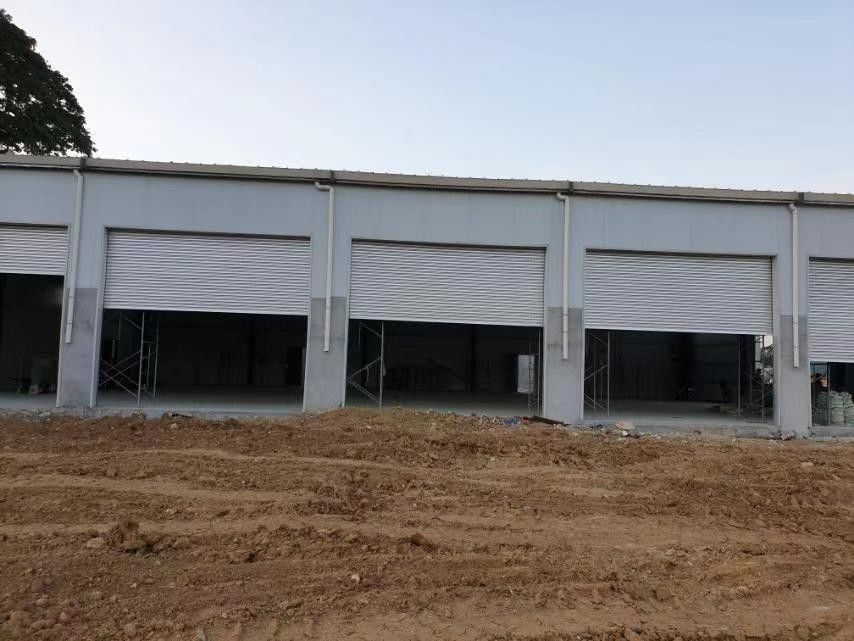

Corrugated color bone roof cladding steel structure storage in Manila, Philippines
Product Information
Product type:Steel structure warehouse
Corrugated color bone roof cladding steel structure storage in Manila, Philippines
Our steel structure building is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Application
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Steel Structure house building material components
Main Steel Frame | H section steel | Q235,Q345 steel 8mm/10mm |
Welding | Automatic submerged arc welding | |
Rust removal | 2.5 Sand blasting | |
Surface processing | Alkyd paint or hit dip galvanized | |
Intensive bolt | Grade 10.9 | |
Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
Cross support | Φ20, Steel Q235, processed and painted | |
Tie rod | Φ89*3, Steel Q235, processed and painted | |
Small bracing | Φ12,Steel Q235, processed and painted | |
Ordinary bolt | M12,M20 Galvanized bolt | |
Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
Roof panel | Sandwich panel or corrugated steel sheet | |
Transparent lighting panel | 6mm thick PVC(sky light) | |
Accessories | Glass cement, self-tapping screws, etc. | |
Trimming | Made from 0.5mm thick, colored sheet steel | |
Gutter | PVC gutter or 2.0mm galvanized gutter | |
Down pie | Φ110PVC | |
Walls | Purlin | C160*60*2.5,Steel Q235, painted |
Wall | sandwich panel or corrugated steel sheet | |
Accessories | Glass cement, self-tapping screws, etc. | |
Trimming | Made from 0.5mm thick, colored sheet steel | |
ventilation fan | 600x600 or customized size | |
Doors & windows | Rolling door/sliding door PVC/alu/steel window |
Steel Structure Construction Characteristics
1. Environmentally friendly, no waste produced
2. Flexibility when fixing doors, windows and interior partitions
3. Beautiful appearance, different colors for the walls and roof.
4. Cost saving and convenient to transport
5. Rust proof with generally more than 15 years service life
6. Safe and stable, can withstand a grade 8 earthquake
Steel Structure storage drawings
About US
TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
Steel structure container loading
Products & Service Scope:
Design& Engineering service, steel building, space frames, portable cabins, tubular steel structures, basic building elements (built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, tempcon (sandwich) panels
Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
Payment Terms:
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market:
Our main markets are Southeast Asia,Africa,Middle East,some island countries and also for other countries and regions.Customized design,OEM design,wholesale and retail are all acceptable.
We'd love to give fully support for your further inquiry!
