100mm Q235 Metal Frame Storage Building With PVC Sliding Window

100mm Q235 Metal Frame Storage Building With PVC Sliding Window
100mm Q235 Metal Frame Storage Building With PVC Sliding Window 100mm Q235 Metal Frame Storage Building With PVC Sliding Window 100mm Q235 Metal Frame Storage Building With PVC Sliding Window 100mm Q235 Metal Frame Storage Building With PVC Sliding Window

Large Image :  100mm Q235 Metal Frame Storage Building With PVC Sliding Window

Product Details:
Place of Origin: Guangdong Foshan Lishui, China
Brand Name: TPA Housing
Certification: ISO,BV,SGS
Model Number: TPA-SFS18
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: In bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 100000 square meters per month

100mm Q235 Metal Frame Storage Building With PVC Sliding Window

Description
Steel Frame: Q235 Q345 Low Carbon Steel Wall And Roof: Sandwich Panel/Color Steel Sheet
Insulation: EPS, Glass Wool, Rock Wool, PU Thickness: 50mm 75mm 100mm 125mm 150mm
Doors: Rolling Door Or Sliding Door Windows: Aluminum/ PVC Sliding Window
Type: Steel Building Keyword: Steel Warehouse
High Light:

100mm Metal Frame Storage Building

,

Q235 Metal Frame Storage Building

Prefabricated Large Span Galvanized Demountable Steel Frame Storage Buildings


Product description

The steel building is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, one unit can achieve about 30 meters in span, and it could be also combined with another unit by span each other, to achieve more than span space. Comparing with the traditional steel construction, it owns simple architecture, low-cost material, small dimension transport, steel structure lifespan can be up to 50 years, it can be used repeatedly.

The steel structure is widespread, it can be used as small and medium-sized factories, steel warehouses, steel workshops, steel storage, exhibition halls, large and medium-sized restrooms, repair shops, etc.


Product material list



Name of material Specification and material
Embedded parts M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Steel column(Q345B) HN600X200X10X15
Steel column(Q345B) HN300X150X6.5X9
Roof column(Q345B) HN350X175X6X9
Floor main beam(Q345B) HN500X200X9X14
Tie rod 89*3.0
Horizontal support 16
Roof purlin(Galvanized) C180*60*20*2.0
Wall purlin(Galvanized) C180*60*20*2.0
connecting plate 6mm~20mm steel sheet
Roof Tile- Rock wool Sandwich panel 50mm color steel thickness: 0.426
Outside wall panel --Rock wool Sandwich panel 50mm color steel thickness: 0.426
Gutter 2.0mm Galvanized Gutter
Downpipe 110PVC
Trimming 1.0mm galvanized steel sheet

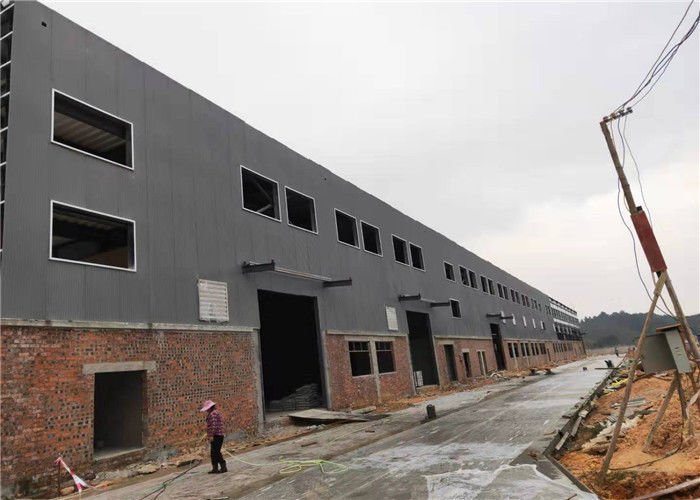

Steel structure building materials display

100mm Q235 Metal Frame Storage Building With PVC Sliding Window 0

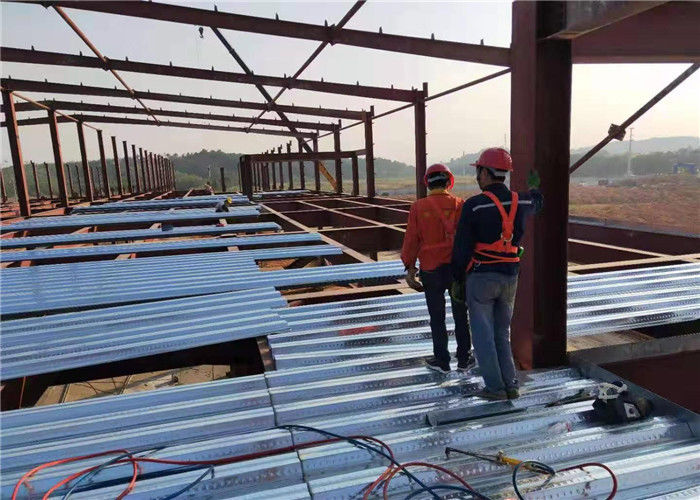

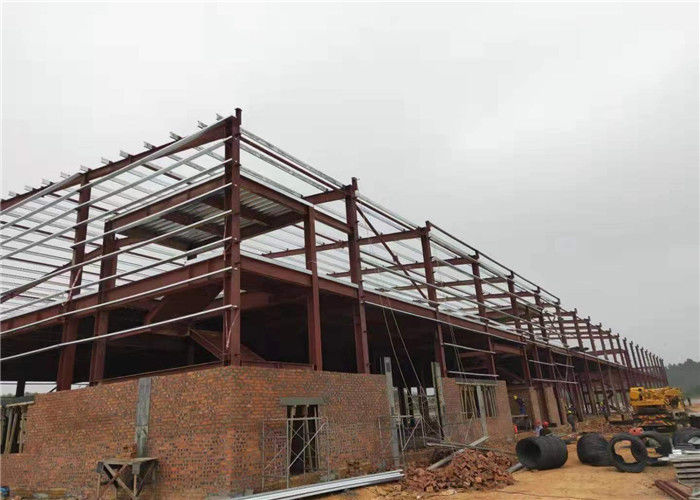

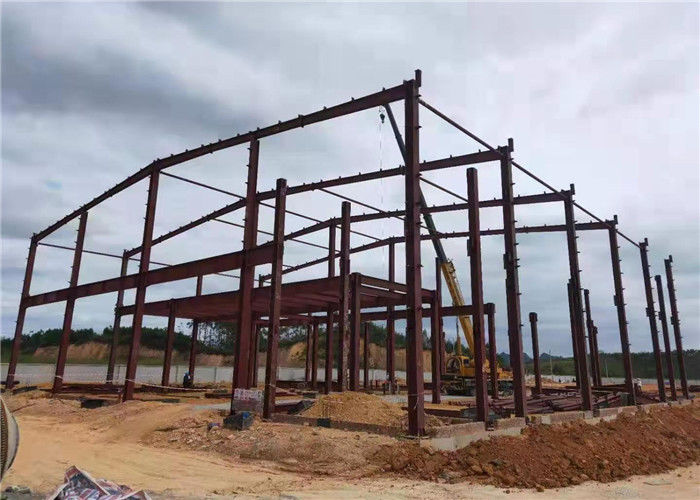

Installation

100mm Q235 Metal Frame Storage Building With PVC Sliding Window 1

About us

TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab House Co. Limited is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshops with a total area of 20,000sqare meter plants and equipped with an automatic spraying line. Our capacity is about 1000,000 square meters of annual output.
For nearly a decade, we have been positioned our business for the domestic market and earned waves of customers for stable purchase. From these two years, we begin our overseas business. Luckily, we have a good team that profession in design, installation and export. We believe on the base of what we have done in domestic, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.

100mm Q235 Metal Frame Storage Building With PVC Sliding Window 2


Our service



1- Customized design service

2- Quality Assurance Service

* Safety packing

* Insurance services

* Inspection before shipment

3- After-sales service

* Engineer guide on site

* Installation team service

* Email/phone call communication


Free steel building quote

Please provide as much information as possible about your future building plans and an online free price quote will be prepared for you immediately. Be sure and include your building site’s location in order to generate an accurate quote. If you are not sure of your building plans, leave your contact information and a qualified representative at TPA housing will contact you to discuss your needs. Your representative will work with you to meet any design or budget challenge and begin working towards a solution to simplify the building process.

Payment Terms

1) Payment: L/C at sight or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order

Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.

If you are interested in a steel building or need a building price, call today!
