Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO, SGS,BV
Model Number:
TPA-LSB48

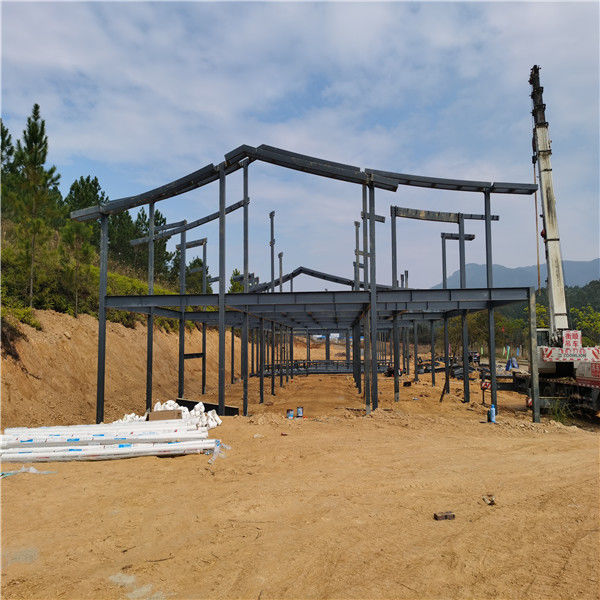

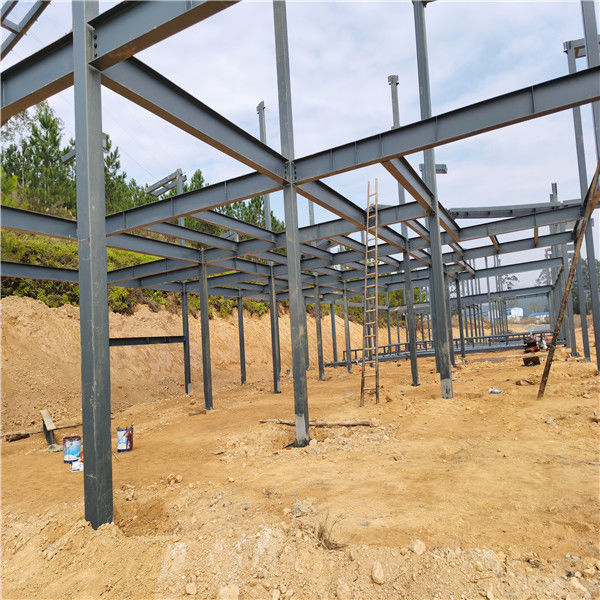

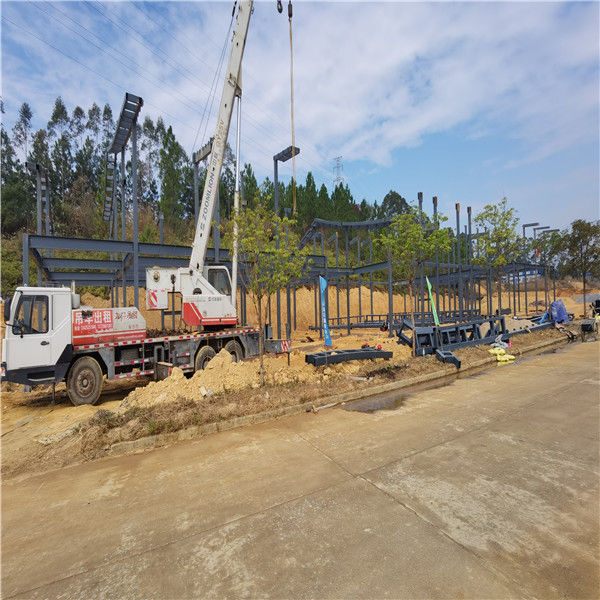

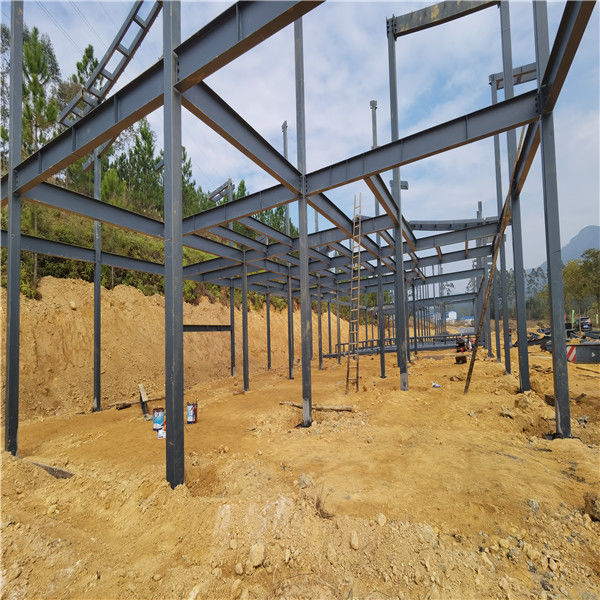

Lightweight Steel Frame Structure Construction Building Project For Guanyin Temple
1. Product material parameter
Anchor bolt | M20 |
High strength bolt | M20, 10.9s |
Shear nail | M16 |
Common bolt | M20 |
Brace | M12 |
Tie rod | Ø12 |
Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
Roof beam(Q345B) | HN340X250X9X14 |
Roof frame beam(Q345B) | HN294X200X8X12 |
Floor main beam(Q345B) | HN294X200X8X12 |
Floor secondary beam(Q345B) | HN244X175X7X11 |
Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
Stair beam(Q235B) | H300X200X6X8 |
Roof purlin | C140X60X20X3.0 |
Connecting plate | 3~8mm |
Roof tile | 75mm rock wool, color sheet both sides 0.426mm |
Wall panel | 75mm rock wool, color sheet both sides 0.426mm |
Floor deck |
1.0mm |
Steel door |
900*2100 |
Aluminum windows | 2000*1500 |
Zinc steel handrails | Square tube80X40+40+30+20 |
Trimming | 1.0mm galvanized sheet, color steel sheet |
2. About this building
Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high-quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops, and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.
3. Advantage of steel structure construction
Following are a list of advantages of steel structure construction offers:
1. Steel is a highly durable metal. It can withstand a considerable amount of external pressure. Hence, steel structures are earthquake resistant whereas concrete structures are brittle. Concrete is not as resistant as steel.
2. Steel structures have a good load carrying capacity unlike concrete structures, which have a low load-carrying capacity.
3. Steel is a tensile metal. It has a high strength to weight ratio. Steel structures weigh 60% lesser than concrete.
4. Steel structures can be made without a foundation but this does not apply to concrete structures as they are heavy.
5. The construction process is faster with steel structures as they are easy to erect. This contributes to faster project completion. On the other hand, concrete construction is time-consuming.
6. Having a good scrap value also makes structural steel a better option than concrete which has practically no scrap value.
7. Steel structures can be easily fabricated and mass-produced. They are so versatile that they can be easily assembled, disassembled, and replaced. Steel structures can be modified even for last-minute changes.
8. Another advantage of steel structures is that they can be constructed off-site by professional steel fabricators and then assembled on site.
9. Steel structures are an eco-friendly option as they are easily recyclable. This means you get to save money on waste management.
10. Lastly, steel structures are easy to transport as they are lightweight. Steel structure construction is a safe option, there are no health hazards of using steel structures in construction.
4. Basic Design Requirements: design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
5. An steel structure building can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!
6. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) To give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.
7.Loading pictures reference
The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
8. Steel Structure Building materials and accessories
9. Steel structure installation picture for reference
