Product Details:
|
| Steel Frame: | Q235 Q345 H Steel/square Tube/C Purlin | Wall/Roof: | Sandwich Panel / Color Steel Sheet |
|---|---|---|---|
| Insulation: | EPS, Glass Wool, Rock Wool, PU | Thickness: | 50mm 75mm 100mm 125mm 150mm |
| Surface: | Hot-dipped Galvanized/Painting | Color: | Up To Customers' Requested |
| Product Name: | Steel Structural Building | Dimension: | Up To Customers' Requests |
| High Light: | Cement Board Steel Structure Homes,125mm Steel Structure Homes,Sandwich Panel Steel Structure Building |
||

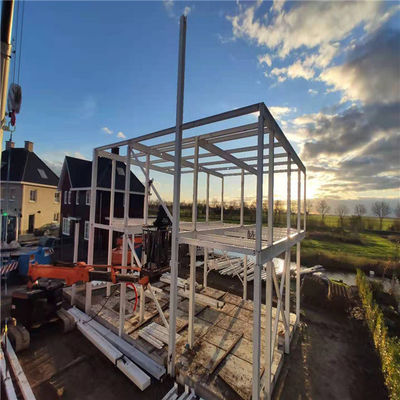

Luxury Steel Frame Cement Board Steel Structure Building Homes With Floor Deck
Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.
Product features
1. Easy to dismantle and assemble (because of connection with bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly
Product technological parameters
| Embedded parts | Name of material | Specification and material |
| Anchor bolt | M30 | |
| High strength bolt | M20,10.9S | |
| Common bolt | M16 | |
| Galvanized bolt | M12 | |
| Shear nail | M16 | |
| Main steel frame | Steel column(Q345B) | HN298*149*5.5*8 |
| Wind resistance column(Q345B) | HN248*124*5*8 | |
| Roof column(Q345B) | HN248*124*5* | |
| Tie rod | Ø 89*3.0 | |
| Horizontal support | Ø 16 | |
| Roof purlin(Galvanized) | C140*45*20*2. | |
| Wall purlin(Galvanized) | C140*45*20*2. | |
| connecting plate | 6mm～20mm steel sheet | |
| Maintenance | Roof Tile- PU sandwich panel | 50mm color steel thickness: 0.426mm |
| Outside wall panel --PU sandwich panel | 50mm color steel thickness: 0.426mm | |
| Gutter | 2.0mm Galvanized Gutter | |
| Downpipe | 110PVC | |
| Trimming | 1.0mm galvanized steel sheet |
Steel structure building accessories
Wall&roof system
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions.
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years.
7. Fast construction ,easy installation and convenient to transport.
Steel structure model display
Open top container loading
The loading of steel structures requires workers, forklifts, and cranes.
About TPA
TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
We can quote if you can offer the following information
1. Size: Length,Width,Roof Height and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated steel sheet or EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and window
6. Surface: Twice anti-corrosive primer + finish painting or Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per clients' requests.
