Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SH10
DIP Galvanized Steel Structure Warehouse For Storage
Product description
A steel building is a metal structure fabricated with steel for the internal support and for exterior cladding, as opposed to steel framed buildings which generally use other materials for floors, walls, and external envelope. Steel buildings are used for a variety of purposes including storage, work spaces and living accommodation. They are classified into specific types depending on how they are used.
Product features
1. Easy to dismantle and assemble (because of connection with bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly
Product technological parameters
Embedded parts | Name of material | Specification and material |
Anchor bolt | M30 | |
High strength bolt | M20,10.9S | |
Common bolt | M16 | |
Galvanized bolt | M12 | |
Shear nail | M16 | |
Main steel frame | Steel column(Q345B) | HN298*149*5.5*8 |
Wind resistance column(Q345B) | HN248*124*5*8 | |
Roof column(Q345B) | HN248*124*5* | |
Tie rod | Ø 89*3.0 | |
Horizontal support | Ø 16 | |
Roof purlin(Galvanized) | C140*45*20*2. | |
Wall purlin(Galvanized) | C140*45*20*2. | |
connecting plate | 6mm~20mm steel sheet | |
Maintenance | Roof Tile- PU sandwich panel | 50mm color steel thickness: 0.426mm |
Outside wall panel --PU sandwich panel | 50mm color steel thickness: 0.426mm | |
Gutter | 2.0mm Galvanized Gutter | |
Downpipe | 110PVC | |
Trimming | 1.0mm galvanized steel sheet |
Steel structure building accessories
Wall&roof system
Steel provides several advantages over other building materials, such as wood:
Projects installation display

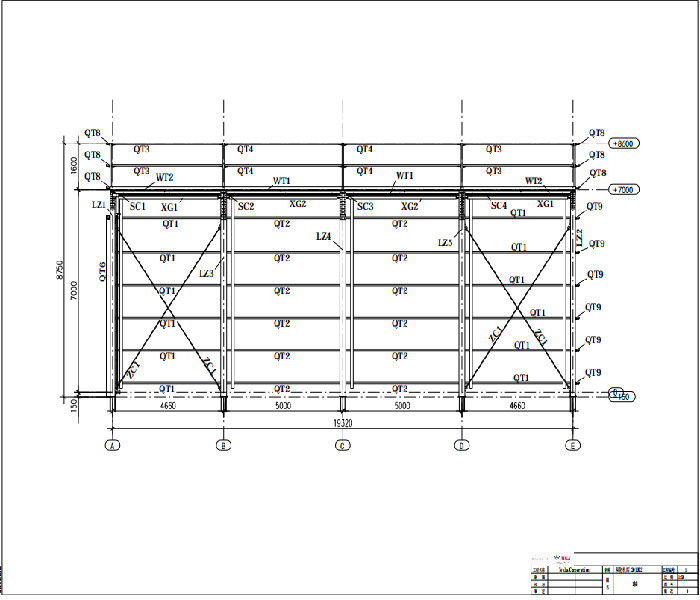

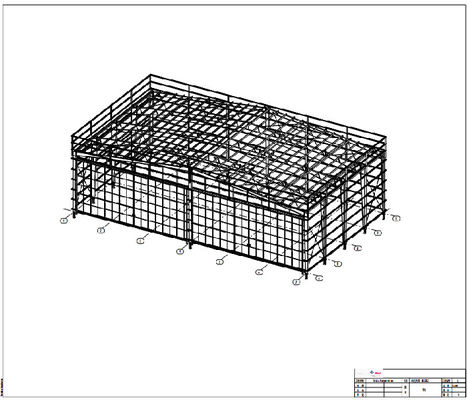

Included with your custom steel structure buildings are computer-produced drawings, which provide all the necessary information for an engineer to prepare the proper foundation for your steel building. And you’ll receive detailed drawings and technical support during the erection of your building. If necessarye, we also could dispatch engineer to guide on site.
Specifications:
1) Main Steel: Q355 and Q235
2) Column & Beam: Pre-engineered welded or hot rolled
section
3) Connection method of steel structure: welding connection or bolt connection
4) Wall B Roof: ES, Rockwool,
PU sandwich profiled steel sheet
5) Door: rolled-up door or sliding door
6) Window: PVC or aluminum window 7) Surface Protection: Hot-dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT, etc
Our steel workshop processing display
