Glass Wool Insulation Prefabricated Steel Workshop Buildings
  • Glass Wool Insulation Prefabricated Steel Workshop Buildings
  • Glass Wool Insulation Prefabricated Steel Workshop Buildings
  • Glass Wool Insulation Prefabricated Steel Workshop Buildings
  • Glass Wool Insulation Prefabricated Steel Workshop Buildings

Glass Wool Insulation Prefabricated Steel Workshop Buildings

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO,BV,SGS
Model Number TPA-SWB38
Product Details
Steel Frame:
Q235 Q345 H Steel
Wall/Roof:
Sandwich Panel / Color Steel Sheet
Insulation:
EPS, Glass Wool, Rock Wool, PU
Thickness:
50mm 75mm 100mm 125mm 150mm
Surface:
Hot-dipped Galvanized/Painting
Color:
Up To Customers' Requested
Product Name:
Steel Structural Building
Dimension:
Up To Customers' Requests
High Light:

Prefabricated Steel Workshop Buildings

,

Q345 Steel Workshop Buildings

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Long Life Span Steel Structure Prefabricated Workshop Building

Product description


Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/Storage/ Suburban Buildings/ Warehouses/ Workshops etc.

Glass Wool Insulation Prefabricated Steel Workshop Buildings 0

Product features

1. Easy to dismantle and assemble (because of connection with bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly


Product technological parameters



Embedded parts Name of material Specification and material
Anchor bolt M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Main steel frame Steel column(Q345B) HN298*149*5.5*8
Wind resistance column(Q345B) HN248*124*5*8
Roof column(Q345B) HN248*124*5*
Tie rod Ø 89*3.0
Horizontal support Ø 16
Roof purlin(Galvanized) C140*45*20*2.
Wall purlin(Galvanized) C140*45*20*2.
connecting plate 6mm~20mm steel sheet
Maintenance Roof Tile- PU sandwich panel 50mm color steel thickness: 0.426mm
Outside wall panel --PU sandwich panel 50mm color steel thickness: 0.426mm
Gutter 2.0mm Galvanized Gutter
Downpipe 110PVC
Trimming 1.0mm galvanized steel sheet


Steel structure building accessories

Glass Wool Insulation Prefabricated Steel Workshop Buildings 1



Wall&roof system



Glass Wool Insulation Prefabricated Steel Workshop Buildings 2

Product Characteristics

1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions.
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years.
7. Fast construction ,easy installation and convenient to transport.

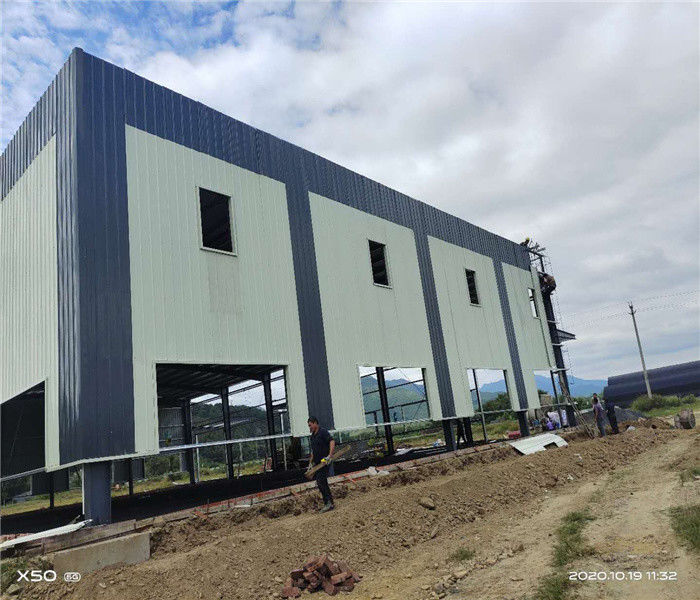

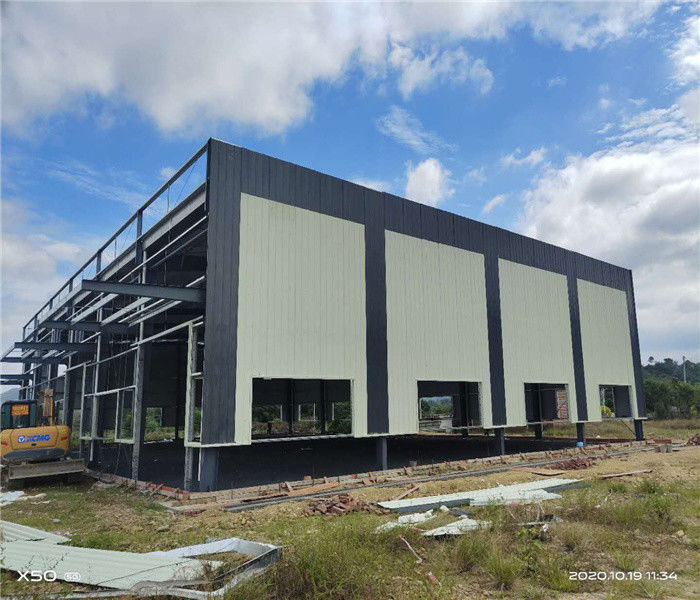

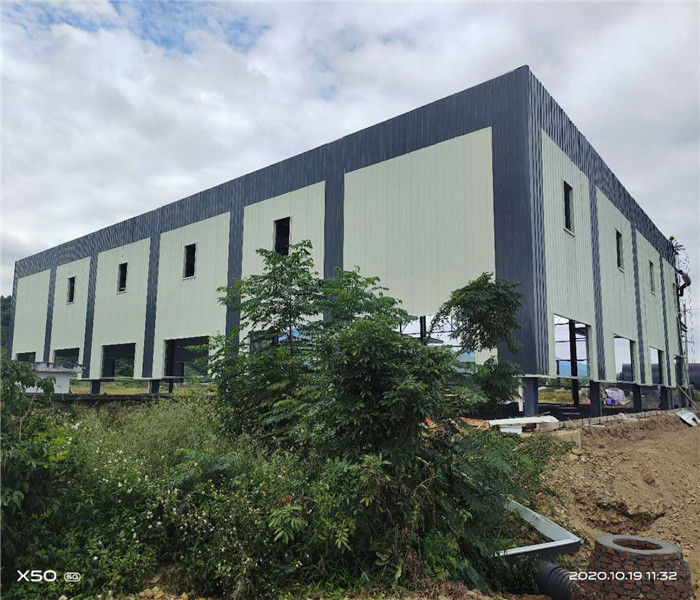

Projects installation display



Included with your custom steel structure buildings are computer-produced drawings, which provide all the necessary information for an engineer to prepare the proper foundation for your steel building. And you’ll receive detailed drawings and technical support during the erection of your building. If necessarye, we also could dispatch engineer to guide on site.

Glass Wool Insulation Prefabricated Steel Workshop Buildings 3

About US

TianPuAn Building Materials Technology Co.,Ltd., also known as TianPuAn Prefab house Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been position our business for the domestic market and earned waves customers for stable purchase. From these two years, we begin our oversea business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done in domestic , we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.

Glass Wool Insulation Prefabricated Steel Workshop Buildings 4

We can quote if you can offer the following information

1. Size: Length,Width,Roof Height and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated steel sheet or EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and window
6. Surface: Twice anti-corrosive primer + finish painting or Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per clients' requests.
