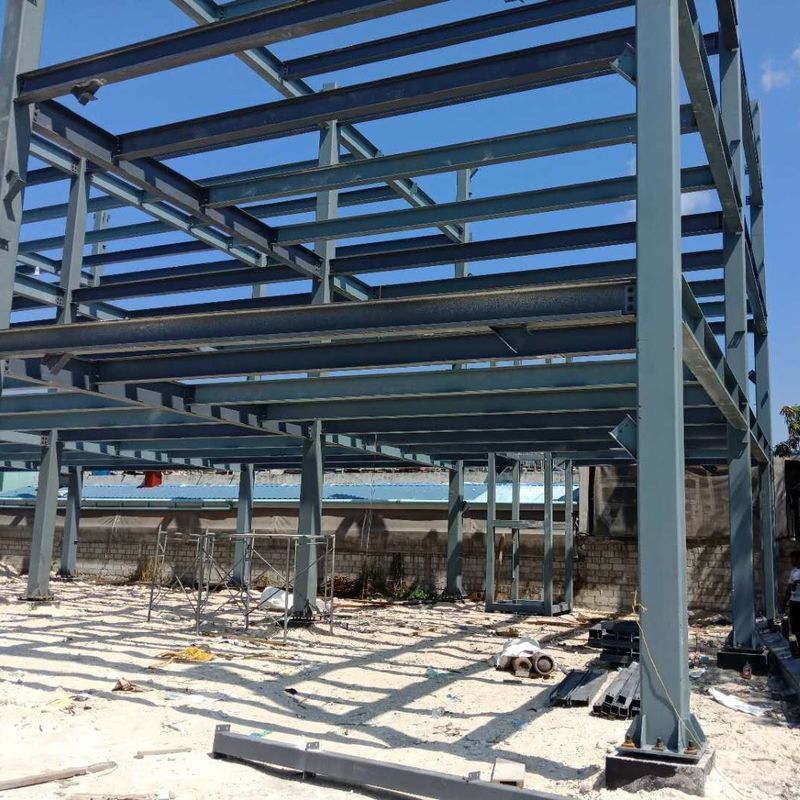

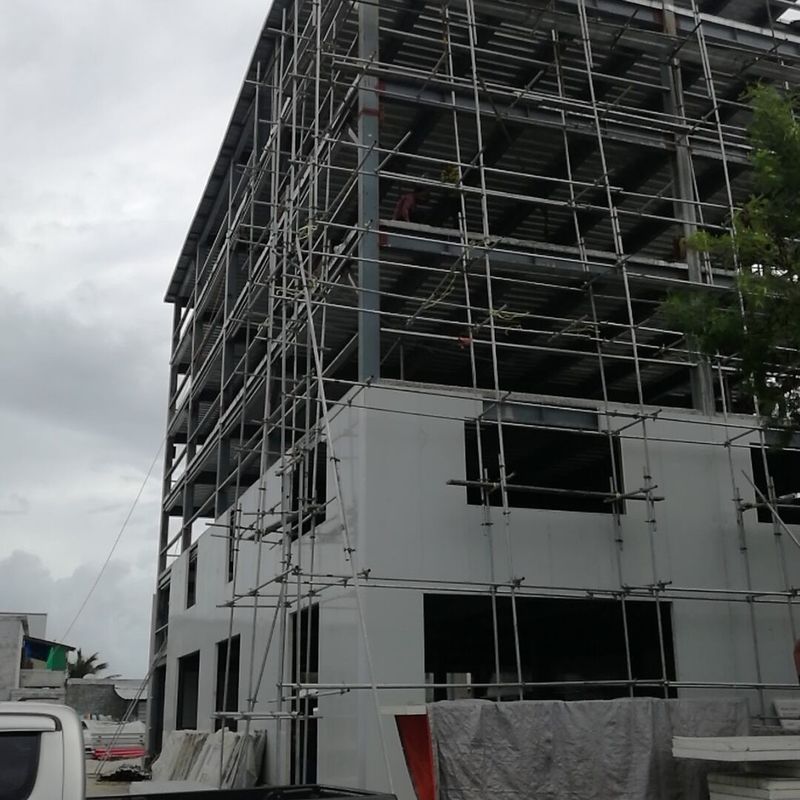

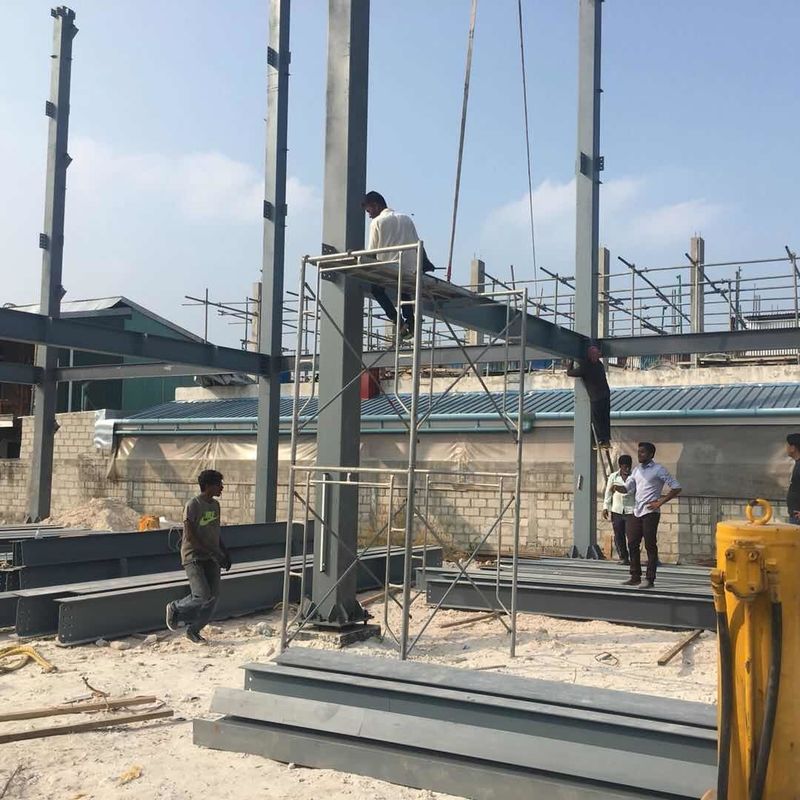

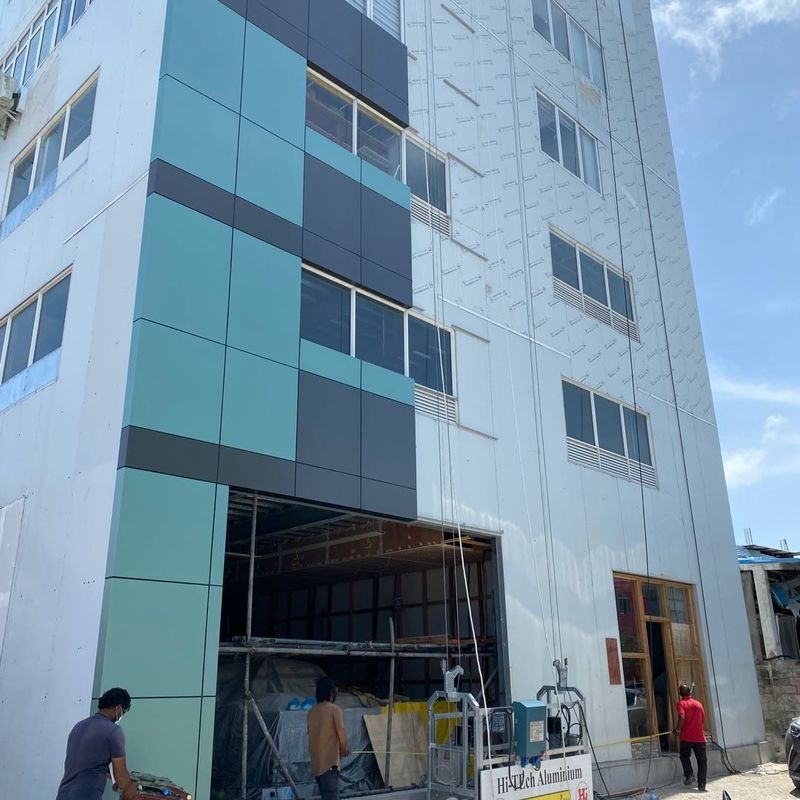

H Section Seven Storey Light Steel Structure Constrcution Building

H Section Seven Storey Light Steel Structure Constrcution Building
H Section Seven Storey Light Steel Structure Constrcution Building
H Section Seven Storey Light Steel Structure Constrcution Building H Section Seven Storey Light Steel Structure Constrcution Building H Section Seven Storey Light Steel Structure Constrcution Building H Section Seven Storey Light Steel Structure Constrcution Building H Section Seven Storey Light Steel Structure Constrcution Building

Large Image :  H Section Seven Storey Light Steel Structure Constrcution Building

Product Details:
Place of Origin: Guangdong Foshan Lishui, China
Brand Name: TPA Housing
Certification: ISO, SGS,BV
Model Number: TPA-LSB49
Payment & Shipping Terms:
Minimum Order Quantity: 50 square meters
Price: Negotiable
Packaging Details: In bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 100000 square meters per month

H Section Seven Storey Light Steel Structure Constrcution Building

Description
Material: Q235 Q345 Low Carbon Steel Type: Light Steel Structure Frame
Wall: Metal Sheet,sandwich Panel Size: Customized
Life Span: Steel Frame About 50 Years Structural Steel Fabrication: Painting/galvanizing
Grade: Q235, Q355B Window: Aluminum Alloy, PVC Window, Plastic Steel Window, Plastic Steel Or Aluminum Alloy, Sliding
Roofing: Sandwich Panel. Single Steel Sheet, EPS Sandwich Panel Column: Welded H Steel, Welded H Beam, H Galvanized Steel
High Light:

Seven Storey Light Steel Structure

,

H Section Light Steel Structure

,

Sandwich Panel Light Steel Structure

Large H Section Steel Seven Storey Light Steel Structure Construction Building



1. Product material parameter



Anchor bolt M20
High strength bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool, color sheet both sides 0.426mm
Wall panel 75mm rock wool, color sheet both sides 0.426mm
Floor deck

1.0mm

Steel door

900*2100

Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet





2. Multi-story steel structure building



Multi-story / High rise Steel Framed Structure is a new type of building structure system, it's connected with H, I section steel column and beam, combined into the main body structure; With all sorts of the plank as the roof and wall, match with artifacts, door to wait to form a complete building system.
Steel Framed structure is mainly used in hotel office school, hospital, shopping mall, residential and exhibition hall, etc.





3. Advantage of steel structure construction

1. Good seismic performance, 2. Fast construction and lightweight 3. Low basic cost and environmental protection 4. Industrial production The construction industry in China is gaining more and more attention and has a good development prospect.
Main Steel Grade:
Q355 Q345 Q235 Q355B Q345B Q235B
Beam & Column:
Welded or Hot rolled H I Section Column and Beam
Purlin:
Hot Dipped Galvanized C Z Purlin
Bolt Accessories:
Foundation bolt & High -Strength Bolts & General Bolt
Foor decking
688 or 750 Hot-dipped galvanized floor decking slab
Wall:
Light partition wall// Curtain glass wall / Sandwich panel wall // Aluminium sheet
Structure Surface
Hot dip galvanized or painted
Application
Multi Floor Commercial Building:Hotel/Office/School/Shooping Mall/Residence/Warehouse
Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know the building length, width, height and local weather(wind speed). We will quote for you promptly.





4. Basic Design Requirements: design Load: (very important)



1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:



5. A steel structure building can also be used for:



1) Industrial Buildings

2) Manufacturing Facilities

3) Warehouses

4) Construction Equipment Storage

5) Machinery Storage

6) Tool Storage

7) Warehouse Expansion

8) & More, tell us about your needs here!





6. Drawings & Quotation:


1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) To give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.





7.Loading pictures reference



The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.



H Section Seven Storey Light Steel Structure Constrcution Building 0





8. Steel Structure Building materials and accessories



H Section Seven Storey Light Steel Structure Constrcution Building 1

H Section Seven Storey Light Steel Structure Constrcution Building 2





9. Steel structure installation picture for reference



H Section Seven Storey Light Steel Structure Constrcution Building 3
