Place of Origin:
Foshan, Guangdong
Brand Name:
TPA-Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SWB39
Pre Engineering Two Floor Steel Structure Warehouse/Workshop Building
Product Description
Product type: steel workshop building
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed exhibition hall, agricultural storage, logistic centers etc.
Steel structure workshop has features of high fire resistance, strong corrosion resistance. It's mainly referred to
as the main bearing component is composed of steel.Including the steel columns, steel beam, steel structure,
steel roof truss.Each component using welds, bolts or rivets to connect.
Steel building materials component
| Embedded parts | Anchor bolt | M30 |
| High strength bolt | M20,10.9S | |
| Common bolt | M20 | |
| Galvanized bolt | M12 | |
| Shear studs | M16 | |
| Brace | M12 | |
| Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
| Wind column(Q235B) | HN300X150X5.5X8 | |
| Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
| Roof frame beam(Q235B) | HN400*200*7*11 | |
| Floor beam(Q235B) | HN350X175X6X9 | |
| Tie rod | Ø89*3.0 | |
| Horizontal bracing | Ø20 | |
| Column bracing | Ø20 | |
| Wall purlin(Galvanized) | C160*50*20*2.0 | |
| Roof purlin(Galvanized) | C160*50*20*2.0 | |
| Connecting plate | 4mm～20mm steel sheet | |
| Maintenance | Roof tile | 50mm sandwich panel(steel sheet thk:0.276mm, density:80kg/m³ ) |
| Wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Partition wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Rolling door(automatic) | W4500*H5000 | |
| Steel door | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC | |
| Downpipe | PVC110 | |
| Trimming | 1.0mm galvanized /steel sheet | |
| Decoration | Office floor tile | 800*800 |
| Outdoor electric gate (W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
| Small gate (W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. Steel components are resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction, easy installation and convenient to transport.
Price
Basic Design Requirements: design Load (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Building Purpose:
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Workshop
F. Office Space
G. Animal Farm (please confirm what kind of animal)

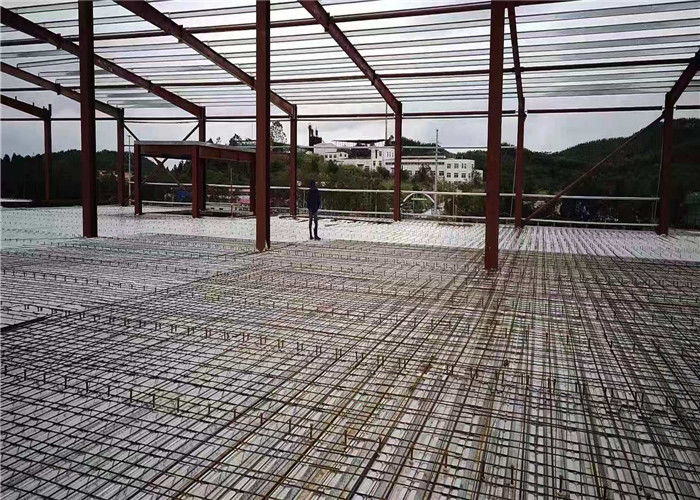

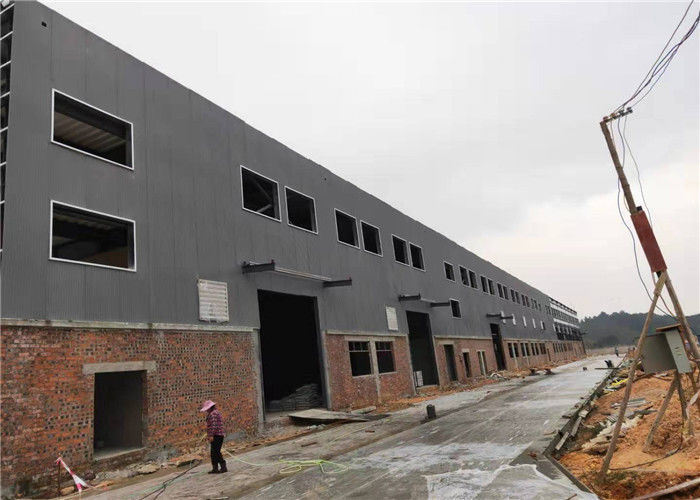

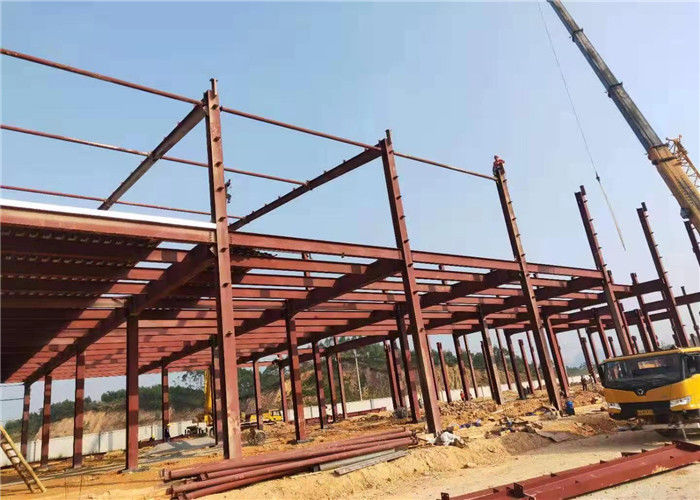

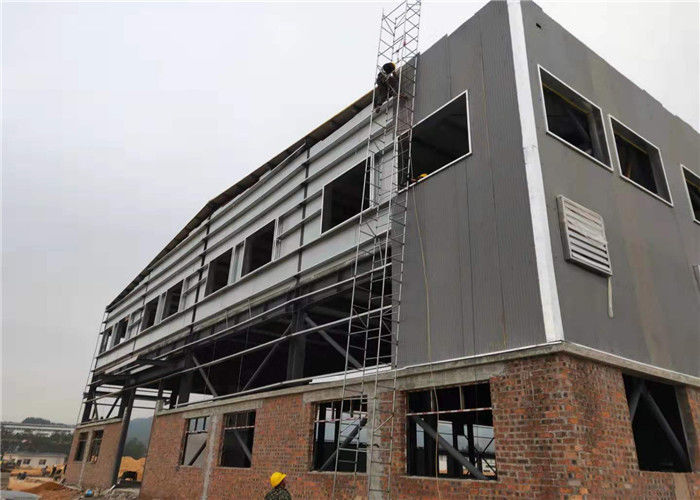

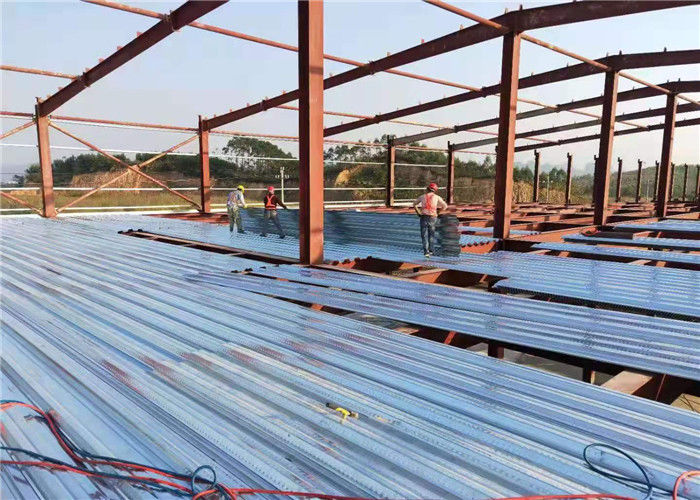

Steel building pictures display
About us
Foshan TianPuAn Building Materials Technology Co., Ltd. (TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with a total area covered 20,000square meters plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Project Services
Simple or complex, our special project services team quickly and expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high-quality metal building systems under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
Send your inquiry directly to us
