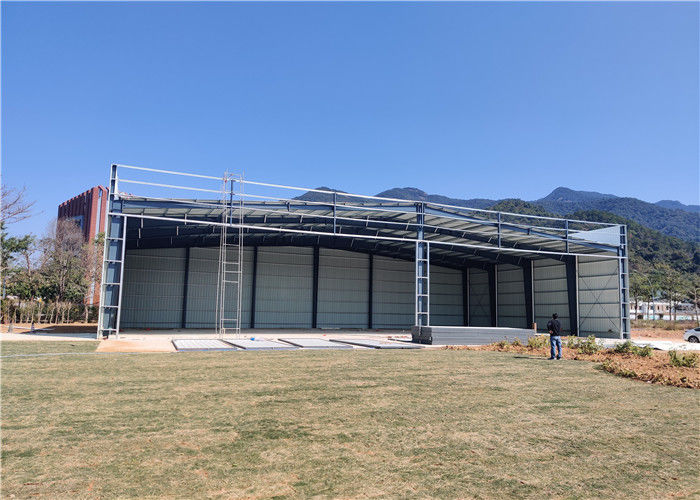

Large Span Sandwich Panel Steel Structure Hangar For Aircraft
  • Large Span Sandwich Panel Steel Structure Hangar For Aircraft
  • Large Span Sandwich Panel Steel Structure Hangar For Aircraft
  • Large Span Sandwich Panel Steel Structure Hangar For Aircraft

Large Span Sandwich Panel Steel Structure Hangar For Aircraft

Place of Origin Guangdong Foshan Lishui, China
Brand Name TPA Housing
Certification ISO,BV,SGS
Model Number TPA-SH1
Product Details
Steel Frame:
Q235 Q345 Low Carbon Steel
Wall/Roof:
Sandwich Panel / Color Steel Sheet
Insulation:
EPS, Glass Wool, Rock Wool
Thickness:
50mm, 75mm, 100mm
Surface:
Hot-dipped Galvanized/Painting
Color:
Customers' Requested
Product Name:
Steel Structural Building
Application:
Steel Warehouse / Workshop / Storage / Hangar Etc
High Light:

Sandwich Panel Steel Structure Hangar

,

Aircraft Steel Structure Hangar

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Large Span Steel Sheet/Sandwich Panel Steel Structure Aircraft Hangars

Product description


The steel airport building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed exhibition hall, agricultural storage, logistic centers, and platform, etc.


Steel structure hangars are a kind of durable and strong material. It can meet the requirements for personal aviation storage, commercial aircraft, and private jets. Steel is the best construction material for aircraft hangars due to its flexible design, durability, and resistance to harsh weather, water, mold, and termites.


Why steel structure?



The layout and height requirements of the hangar are special, which will affect the structure of the hangar directly. Because of the large span of the hangar, the proportion of structural dead load (mainly roof system) in the total load is also large. If the structural dead weight can be reduced, it will be obtained. Obvious economic results have been achieved.


The steel structure has the advantages of high strength, lightweight, small section, weldability, and simple manufacturing process.
Therefore, it is common to use steel structures as roof bearing systems in long-span structures. Space structure system has a good force and lightweight, which can solve some problems that plane structure system can not solve.




Product material list



Embedded parts Name of material Specification and material
Anchor bolt M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Main steel frame Steel column(Q345B) HN298*149*5.5*8
Wind resistance column(Q345B) HN248*124*5*8
Roof column(Q345B) HN248*124*5*
Tie rod Ø 89*3.0
Horizontal support Ø 16
Roof purlin(Galvanized) C140*45*20*2.
Wall purlin(Galvanized) C140*45*20*2.
connecting plate 6mm~20mm steel sheet
Maintenance Roof Tile- PU sandwich panel 50mm color steel thickness: 0.426mm
Outside wall panel --PU sandwich panel 50mm color steel thickness: 0.426mm
Gutter 2.0mm Galvanized Gutter
Downpipe 110PVC
Trimming 1.0mm galvanized steel sheet


Steel Structure Building materials display

Large Span Sandwich Panel Steel Structure Hangar For Aircraft 0


Product features


1. Easy to dismantle and assemble (because of connection with bolts)
2. High structural stability
3. Good appearance
4. Flexible design
5. Large span and large height
6. Short delivery time
7. Good heat insulation effect
8. Good ventilation effect
9. Long service life
10. Environmentally friendly

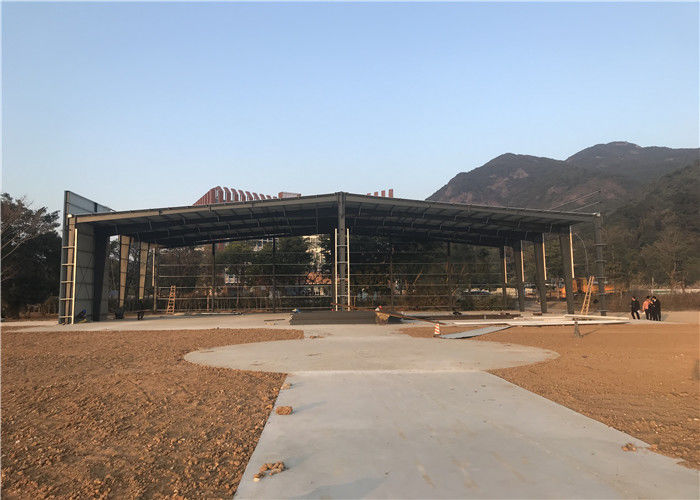

Projects installation display



Included with your custom steel structure buildings are computer-produced drawings, which provide all the necessary information for an engineer to prepare the proper foundation for your steel building. And you’ll receive detailed drawings and technical support during the erection of your building. If necessary, we also could dispatch an engineer to guide on site.

Large Span Sandwich Panel Steel Structure Hangar For Aircraft 1

About us

TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab House Co. Limited Start is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshops with a total area of 20,000sqare meters of plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been positioned our business for the domestic market and earned waves of customers for stable purchases. From these two years, we begin our overseas business. Luckily, we have a good team who profession in design, installation, and export. We believe based on what we have done domestically, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.

Large Span Sandwich Panel Steel Structure Hangar For Aircraft 2

We can quote if you can offer the following information

1. Size: Length, Width, Roof Height, and Eave Height.
2. Column and Beam: Hot rolled or welded H section beam.
3. Purlin: C-section.
4. Roof and Wall panel: Single layer corrugated sheet or EP/Rock Wool/PU
sandwich panel.
5. Doors and Windows: Rolling up / sliding / side-hung door and window
6. Surface: Twice anti-corrosive primer + finish painting or Hot-dipped Galvanized
7. Local Climate: 1.Wind speed 2.Snow load 3.Earthquake grade if have
8. Drawing: 1. Quote as per clients' drawing 2. Design as per clients' requests.

Payment Terms

1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order

Market


Products have been exported to North America, the Middle East, Africa, Asia, and other countries and regions.

If you are interested in a steel structure building or need a building price, call today!
