Place of Origin:
Foshan,China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SSH6
Customized Cement Sandwich Panel Steel Villa House For Residential Building
Product type: Steel Structure Homes
Product description
Light steel villa offer several advantages over more typical approaches to homebuilding. Its superior materials and fully-engineered design make it more durable, economical, and environmentally responsible.
Material List
| Name of material | Specification and material |
| Expansion bolt | M16 |
| Galvanized bolt | M12 |
| Self-tapping nail | M5 |
| Steel column(Q235B) | HN346*174*6*9 |
| Steel column(Q2355B) | HN298*149*5.5*8 |
| Roof column(Q235B) | HN198*99*4.5*7 |
| Column bracing | ∅89*3.0 |
| Connecting plate | |
| Roof purlin(Galvanized) | C80*40*20*1.8 |
| Roof tile | 50mm EPS sandwich panel+Resin tile |
| Outside wall panel | 100mm fiber cement board |
| Outside wall cladding | 9mm fiber cement board |
| Interior wall | 75 light gauge steel frame+6mm Calcium silicate board (including glass wool) |
| Floor tile | 600*600 |
| Toilet ceramic tile | 300*300 |
| Ceiling | PVC gypsum board |
| Gutter | PVC |
| Downpipe | PVC |
| Trimming | 1.0mm galvanized steel sheet |

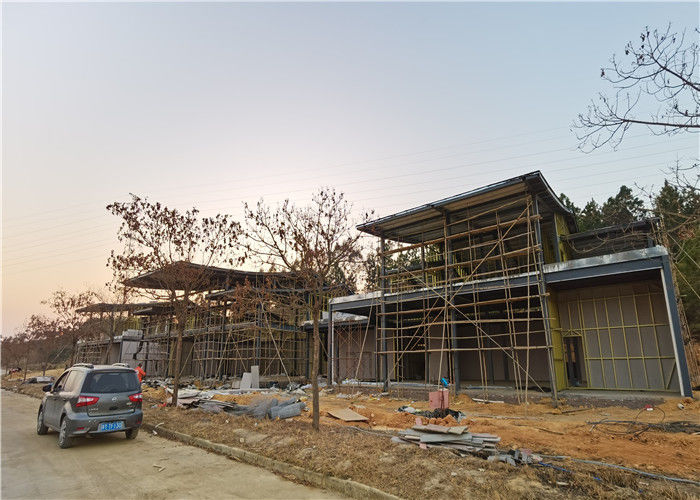

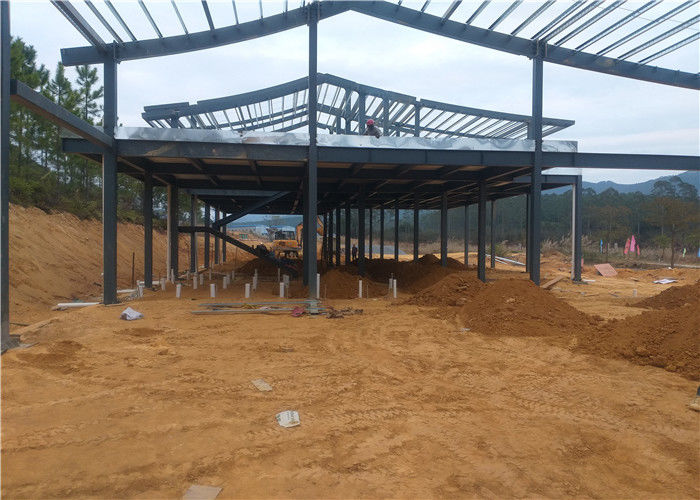

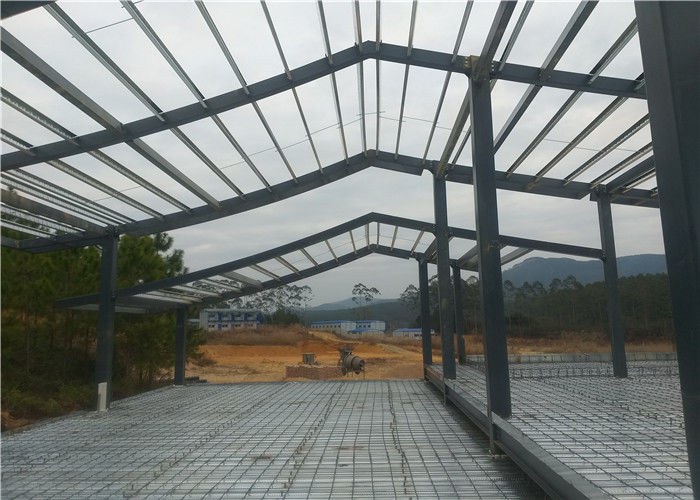

Steel Structure House Display
Steel Structure Homes Description
Light steel keel villa automated production of main body structure, a plurality of wall and roof system, factory production to accelerate installation speed. The performance advantages of light steel structure housing: more flexible, more economical, more efficient, more secure, more durable, more assured, more comfortable more energy, more environmentally friendly, reducing the impact on the environment and pollution, realize green low carbon building a human dream.
Product Characteristics
1.Low maintenance costs
2.Environmentally friendly, recycling.
3.Flexibility when fixing doors, windows, and interior partitions
4.Steel structure construction is strong, durability and stability.
5.steel components are resistant to termites and other destructive insects.
6.Long service life for more than 50 years
7.Fast construction, easy installation, and convenient transport.
Applications
1) Residence
2) Tourist and holiday house
3) Family house
4) Government residential project
5) Real estate development project
6) Constructions for other purposes
About us
TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab House Co. Limited is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshop with total area 20,000sqare meter plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters annual output.
For nearly a decade, we have been positioned our business for the domestic market and earned waves of customers for stable purchase. From these two years, we begin our overseas business. Luckily , we have a good team who profession in design, installation and export. We believe on the base of what we have done domestically, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
Drawings & Quotation
1) Customized design is welcomed. As long as you like, we can design and provide drawings for you.
2) Length (sidewall, m)?
3) Width (end wall, m)?
4) Wall Height (eave, m)?
5) Middle Column allowed or not?
6) Project location?
7) Snow load?
8) Wind load?
9) Seismic magnitude?
10) Mezzanine or not? And usage?
Products & Service Scope
Design& Engineering service, steel building, space frames, portable cabins, tubular steel structures, basic building elements (built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, tempcon (sandwich) panels.
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
Contact us today to discuss your steel framing kits for the custom home project!
