Place of Origin:
Foshan, Guangdong
Brand Name:
TPA-Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-LSB54
H Section Beam Construction Design Steel Structure Building / Warehouse
Product type: light steel structure building
Product Description
Steel structure warehouse is more cost-effective than other traditional concrete block building systems, cause steel is the super-strong material that can use less material to achieve the same structural scale. And all steel framing members are cut, welded, drilled, painted at the factory. They can be bolted together once they arrive at the construction site.
Materials component
| Embedded parts | M24/M27/M30 |
| High strength bolt / Common bolt /Turnbuckle /Galvanized bolt | M20 |
| Steel column(Q235B) | HN(200~500)*200*9*14 |
| Wind column(Q235B) | HN(198~400)*200*7*11 |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
| Tie rod | ∅89/114*3.0 steel bar |
| Horizontal bracing | ∅20/22/25 steel bar |
| Column bracing | ∅20/22/25 steel bar |
| Roof purlin (galvanized) | C160/180/220*2.0 |
| Wall purlin (galvanized) | C160/180/220*2.0 |
| Connecting plate | 3mm～12mm steel sheet |
| Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Gutter | PVC/Galvanized steel materials |
| Downpipe | ∅110 PVC materials |
| Electric galvanized rolling gate | W5000*H5000(customized size) |
| Sandwich panel door | W800*H2100(customized size) |
| Window | PVC/Aluminum sliding window W1100*H1200(customized) |
| Trimming | 1.0mm galvanized/ steel sheet |
Why choose us?
1. Superior Customer Service
*Our technician team will respond to your inquiry in time, discuss with you about your requirements and make a proposal according to your specifications with 48 hours.
2. Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3. After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completion. Always install several sections to ensure no problems with installation
Steel structure warehouse features
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
Price
We can quote if you can offer the following information:
| Item Name | |
| Size | Length,Width,Roof Height and Eave Height |
| Column and Beam | Hot rolled or welded H section beam |
| Purlin | C-section and Z-section |
| Roof and Wall |
Single-layer corrugated sheet sheet or EP/Rock Wool/PU sandwich panel |
| Door and Window | Rolling up / sliding / side-hung door and window |
| Surface | Painting or Hot-dipped galvanized |
| Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have |

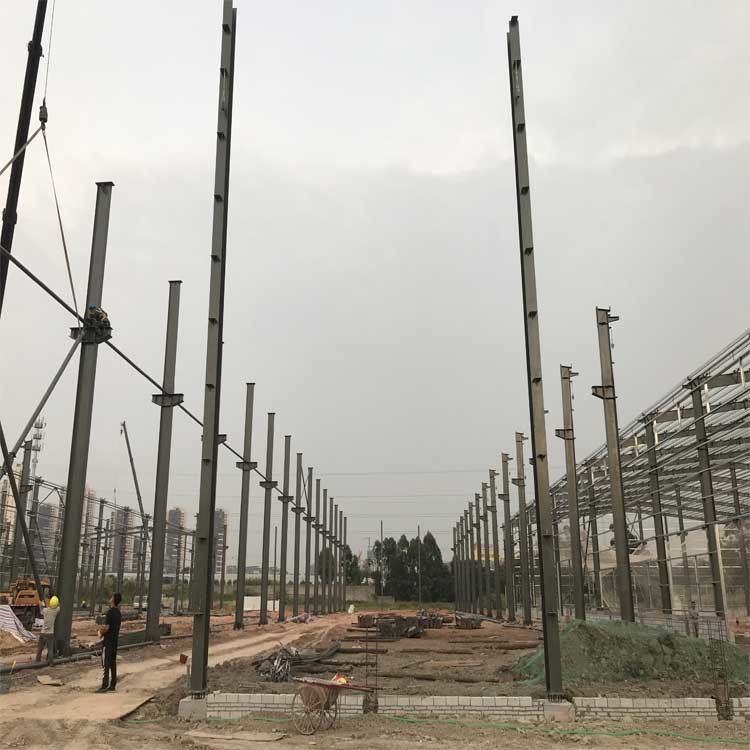

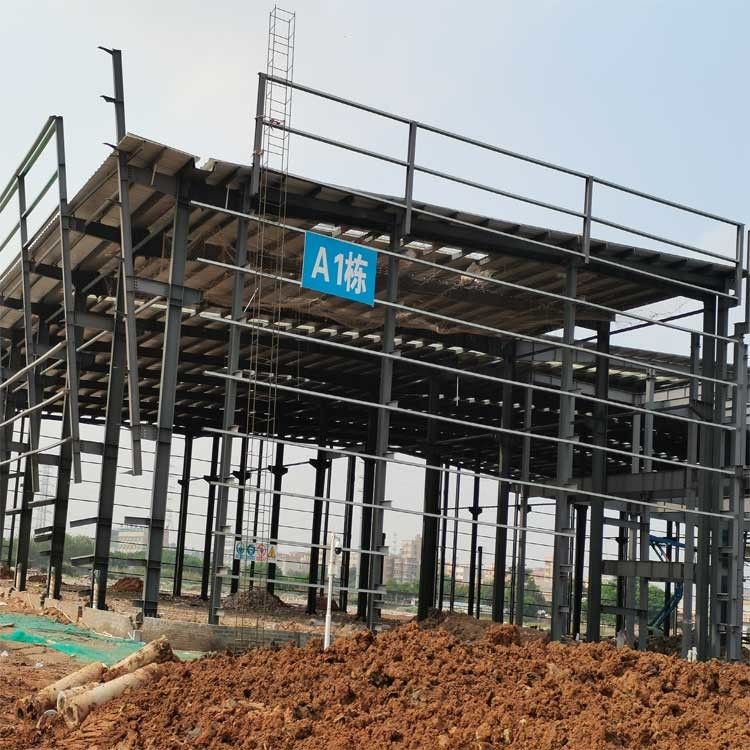

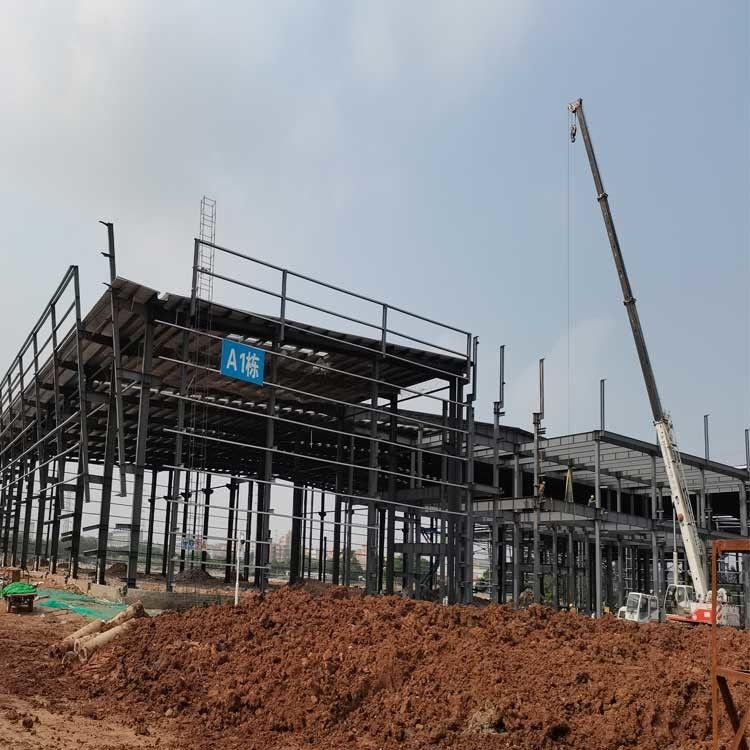

Light steel structure buildings pictures display
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with the total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Project Services
Simple or complex,our special project services team quickly an expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high-quality metal building system under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
4. Design Services
All of our engineers have at least 10 years of experience in this field. We can provide design expertise, construction knowledge you need to build your custom home in short time and within your budget. We help you to achieve the balance between quality, function and costs.
