1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures
1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures
1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures

Large Image :  1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures

Product Details:
Place of Origin: Guangdong Foshan Lishui, China
Brand Name: TPA Housing
Certification: ISO, SGS,BV
Model Number: TPA-LSB11
Payment & Shipping Terms:
Minimum Order Quantity: 50 square meters
Price: Negotiable
Packaging Details: In bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 100000 square meters per month

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures

Description
Material: Q235 Q355 Low Carbon Steel Life Span: Steel Frame About 50 Years
Structural Steel Fabrication: Painting/galvanizing Wall Panel: EPS/rock Wool/PU Sandwich Panel, Single Steel Sheet,
Installation: Installation Drawing Or Engineers Guidance Color: Customer Requirement
Roofing: Sandwich Panel. Single Steel Sheet

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures



1. Steel warehouse building material parameter



Anchor bolt M20
High streng bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool,color sheet both sides 0.426mm
Wall panel 75mm rock wool,color sheet both sides 0.426mm
Floor deck

1.0mm

Steel door

900*2100

Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet





2. About steel warehouse buildings

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 0

Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high-quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.





3. Why is steel used in building structures?



Steel is used because it binds well to concrete, has a similar thermal expansion coefficient and is strong and relatively cost-effective. Reinforced concrete is also used to provide deep foundations and basements and is currently the world's primary building material.



4. Basic Design Requirements: design Load: (very important)



1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:



5. What are the benefits of steel buildings?



Steel has a unique combination of properties that make it an ideal building material.

  • Steel's advantages in construction include speed, safety, optimal cost, reliability, lightweight, and design adaptability. ...
  • Quality and speed. ...
  • Strength and safety. ...
  • Economic efficiency. ...
  • Flexibility and expressiveness.




6. Steel structure building Drawings & Quotation:


1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exact quotation and drawings, please let us know the length, width, eave height, and local weather. We will quote for you promptly.



Our drawings are as follows:

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 1

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 2



7. Loading pictures of steel warehouse building reference



The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.



1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 3





8. Steel Structure warehouse materials and accessories



1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 4

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 5

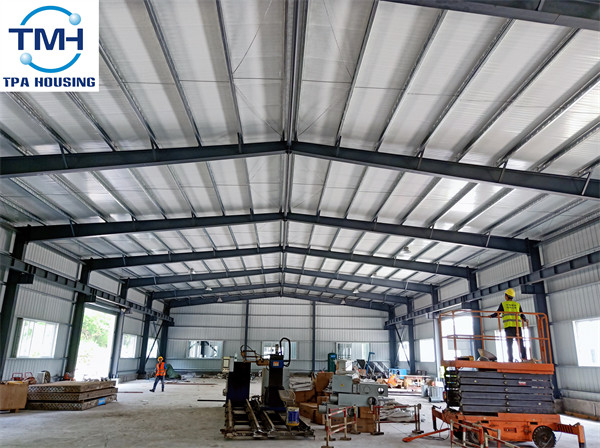

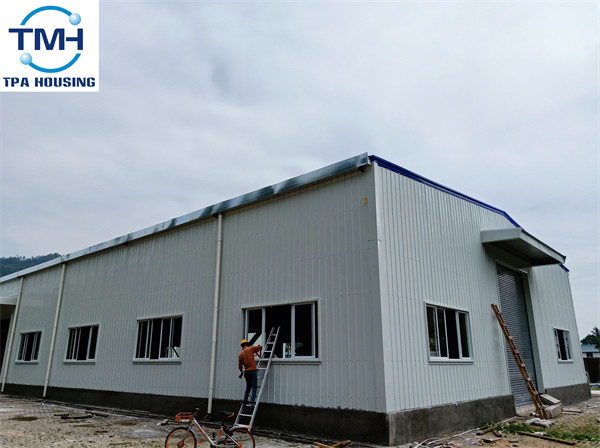

9. Steel structure building installation picture for reference

1680sqm Structural Steel H Beam Color Steel Sheet Light Steel Building Structures 6
