Place of Origin:
Foshan, Guangdong
Brand Name:
TPA-Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-LSB68
Rust-Proof Light Steel Structure Building For Low-Maintenance And High-Durability Construction
Product type: light steel structure building
Product Description
Steel structure building warehouse/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction ,easy installation and convenient to transport.
Materials component
| Embedded parts | M24/M27/M30 |
| High strength bolt / Common bolt /Turnbuckle /Galvanized bolt | M20 |
| Steel column(Q235B) | HN(200~500)*200*9*14 |
| Wind column(Q235B) | HN(198~400)*200*7*11 |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
| Tie rod | ∅89/114*3.0 steel bar |
| Horizontal bracing | ∅20/22/25 steel bar |
| Column bracing | ∅20/22/25 steel bar |
| Roof purlin (galvanized) | C160/180/220*2.0 |
| Wall purlin (galvanized) | C160/180/220*2.0 |
| Connecting plate | 3mm～12mm steel sheet |
| Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Gutter | PVC/Galvanized steel materials |
| Downpipe | ∅110 PVC materials |
| Electric galvanized rolling gate | W5000*H5000(customized size) |
| Sandwich panel door | W800*H2100(customized size) |
| Window | PVC/Aluminum sliding window W1100*H1200(customized) |
| Trimming | 1.0mm galvanized/ steel sheet |
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process step.
3. Inspection during production.
4. Inspection after completed. Always install several sections to ensure no problems with installation
Steel structure buildings features
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
Price
We can quote if you can offer the following information:
| Item Name | |
| Size | Length, Width, Roof Height, and Eave Height |
| Column and Beam | Hot rolled or welded H section beam |
| Purlin | C-section and Z-section |
| Roof and Wall |
Single-layer corrugated sheet or EP/Rock Wool/PU sandwich panel |
| Door and Window | Rolling up / sliding / side-hung door and window |
| Surface | Painting or Hot-dipped galvanized |
| Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have |

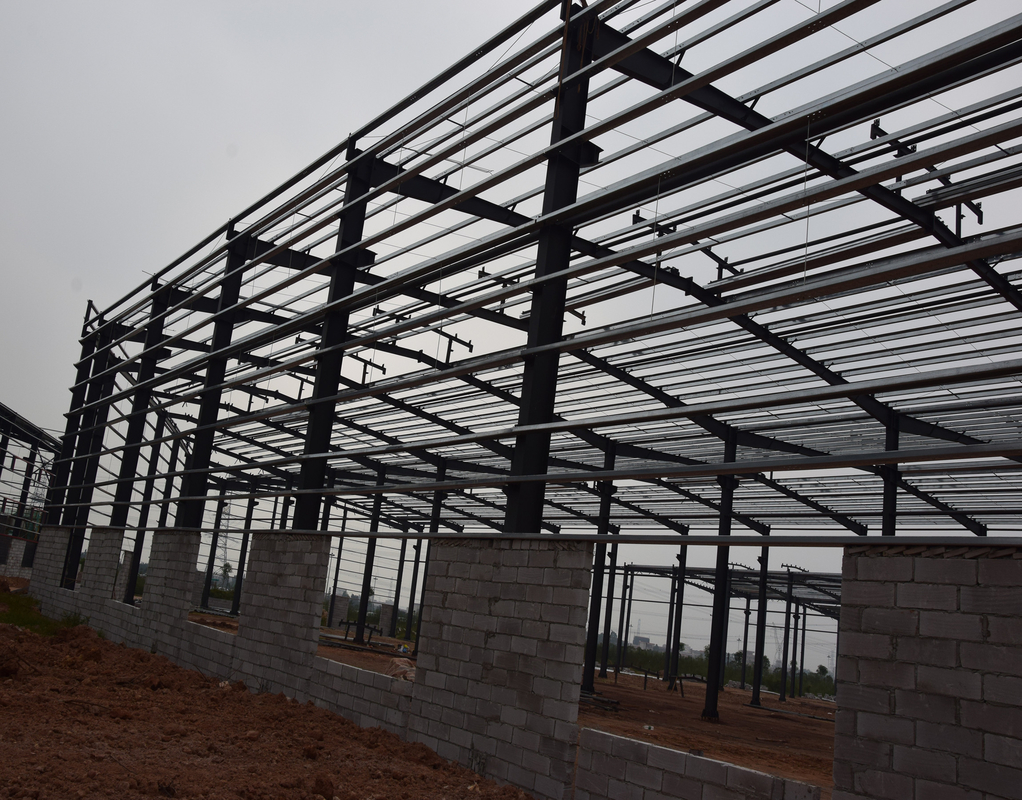

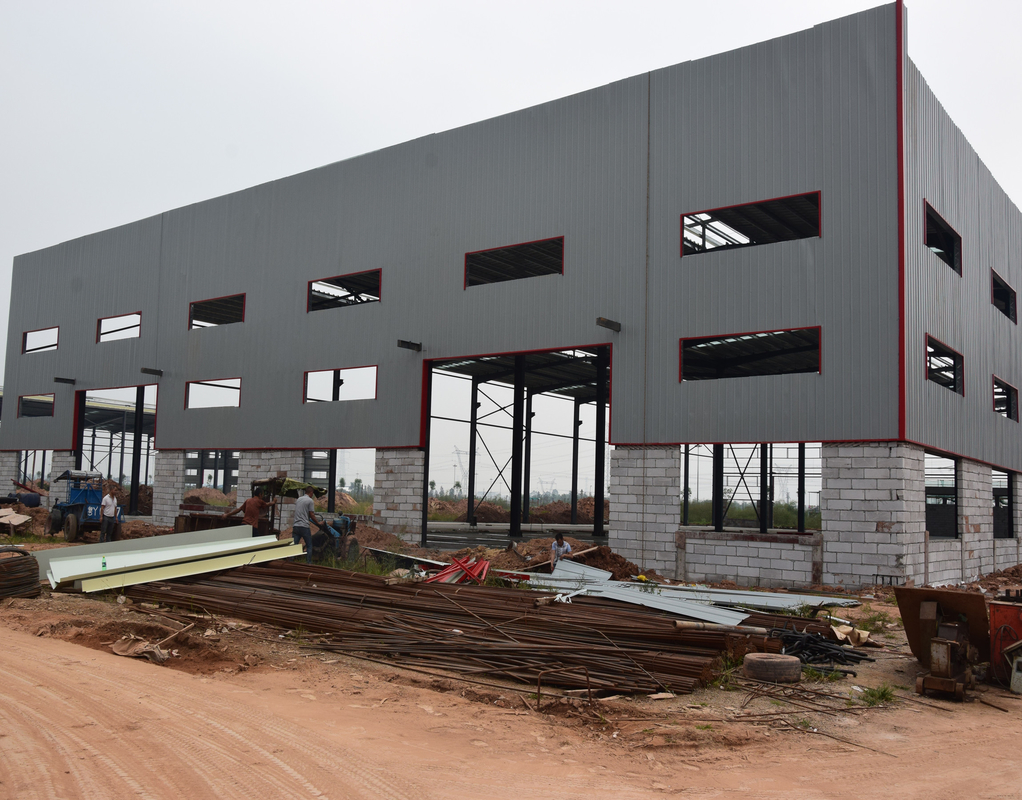

Light steel structure buildings pictures display
About us
Foshan TianPuAn Building Materials Technology Co., Ltd.(TPA housing), was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with the total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Project Services
Simple or complex, our special project services team quickly and expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high-quality metal building systems under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
4. Design Services
Send your inquiry directly to us
