Customizable Steel Structure Workshop With High-Strength Materials And Easy Installation
Product Description
Product type: Steel workshop building
Steel structure workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Steel structure buildings features
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
Materials component
| Embedded parts | Anchor bolt | M30 |
| High strength bolt | M20,10.9S | |
| Common bolt | M20 | |
| Galvanized bolt | M12 | |
| Shear studs | M16 | |
| Brace | M12 | |
| Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
| Wind column(Q235B) | HN300X150X5.5X8 | |
| Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
| Roof frame beam(Q235B) | HN400*200*7*11 | |
| Floor beam(Q235B) | HN350X175X6X9 | |
| Tie rod | Ø89*3.0 | |
| Horizontal bracing | Ø20 | |
| Column bracing | Ø20 | |
| Wall purlin(Galvanized) | C160*50*20*2.0 | |
| Roof purlin(Galvanized) | C160*50*20*2.0 | |
| Connecting plate | 4mm～20mm steel sheet | |
| Maintenance | Roof tile | 50mm sandwich panel(steel sheet thk:0.276mm, density:80kg/m³ ) |
| Wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Partition wall panel | 50mm sandwich panel (steel sheet thk:0.276mm, density:80kg/m³ ) | |
| Rolling door(automatic) | W4500*H5000 | |
| Steel door | W1000*H2100/W850*H2100 | |
| Sandwich panel door | W5000*H3500 | |
| Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
| Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
| Gutter | PVC | |
| Down pipe | PVC110 | |
| Trimming | 1.0mm galvanized /steel sheet | |
| Decoration | Office floor tile | 800*800 |
| Outdoor electric gate (W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
| Small gate (W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |

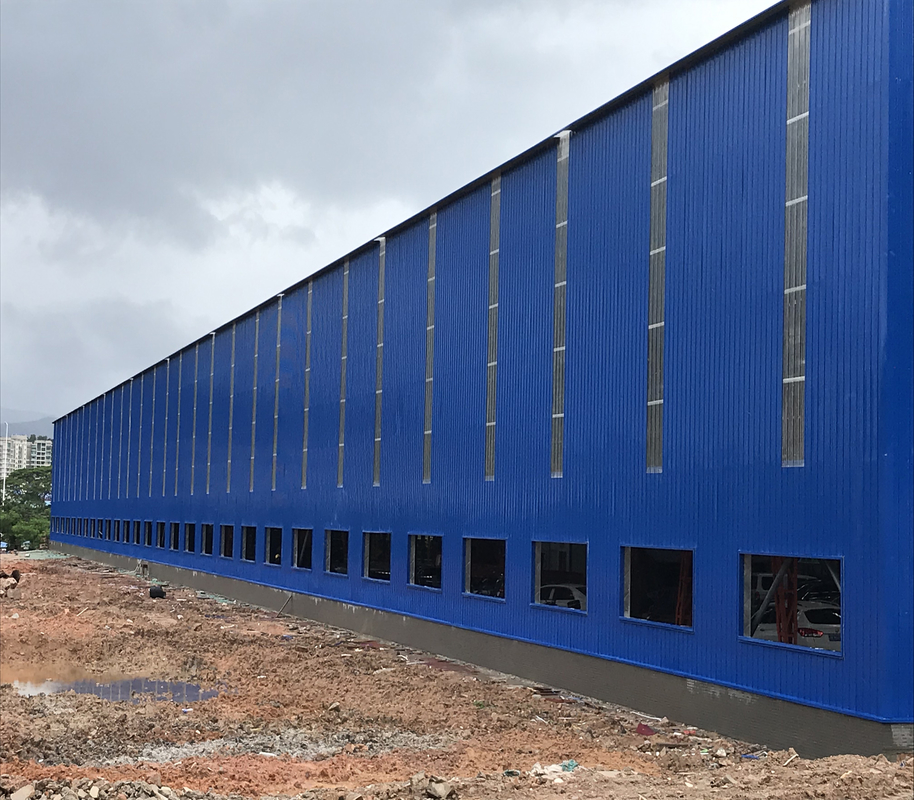

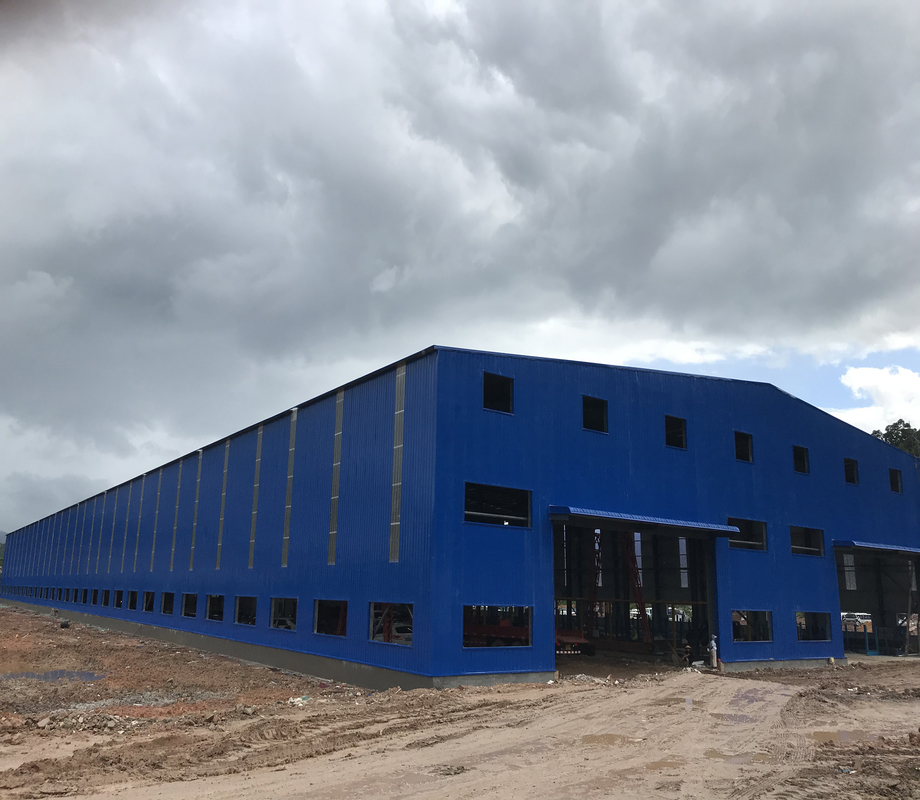

Installation pictures
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops,
and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. Steel components is resistant to termites and other destructive insects.
6. Long service life for more than 50 years
7. Fast construction ,easy installation and convenient to transport.
Price
Basic Design Requirements: design Load (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Building Purpose:
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Workshop
F. Office Space
G. Animal Farm (please confirm what kind of animal)
Our workshop factory disply
Our company have more than 10 years experiences in manufacturing steel structure building(like warehouse etc..), prefab house, light steel villa, container house and fence as well.
Most of our engineers have worked in steel structure building for more than 5 years,we can make good solution according to your requirements.
Our services
1. Design Services
2. Project Services
Simple or complex, our special project services team quickly and expertly handles your project.
3. Private manufacturing services(OEM)
We can manufacture and deliver high-quality metal building systems under your brand name.
Private Label Services.
4.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
We'd love to give fully support for your further inquiry!
