Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout
  • Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout
  • Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout

Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout

Place of Origin Foshan,Guangdong
Brand Name TPA Housing
Certification ISO,SGS,BV
Model Number TPA-SWB41
Product Details
Size:
Customized
Steel Structure:
H Beam, C Channel, Steel Sheeting
Key Word:
Steel Workshop Building
Steel Work:
Comment Steel/galvanized Steel
Steel Fabrication:
Cutting,Sanding,Painting
Doors:
Rolling Door/Sliding Door
Windows:
Aluminum/PVC Sliding Window
Add Colors:
Roof, Walls And Steel Frame
Finished:
Hot Dipped Galvanized
Life Span:
More Than 50 Years
High Light:

Long Span Steel Structure Workshop

,

Hot Dip Galvanized Steel Structure Workshop

Payment & Shipping Terms
Minimum Order Quantity
I unit
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
L/C, T/T
Supply Ability
30000~50000 per month
Product Description

Hot-Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout



Product Description

Product type: steel workshop buildings



A steel structure workshop is a modern building system that utilizes a primary steel framework consisting of H-section, Z-section, and U-section steel components. It is designed to be lightweight yet sturdy. The roof and walls of the workshop are constructed using a diverse range of panels and other elements, including windows, doors, and cranes, to provide flexibility and functionality.





Steel workshop buildings materials component :

Main Steel Frame H section steel Q345 steel 8mm/10mm
  Welding Automatic submerged arc welding
  Rust removal Sand blasting
  Surface processing Alkyd paint or galvanized
  Intensive bolt Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
  Cross support Φ20, Steel Q235, processed and painted
  Belt bar Φ89*3, Steel Q235, processed and painted
  Small brace Φ12,Steel Q235, processed and painted
  Ordinary bolt Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
  Outer-roof panel Sandwich panel or corrugated steel plate
  Sky light 6mm thick PVC
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Gutter Made from 0.8mm thick sheet steel
  Rainspout Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
  Wall sandwich panel or corrugated steel plate
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Ventilation equipment Ventilation ball
  Doors & windows Rolling door/sliding door PVC/alu/steel window

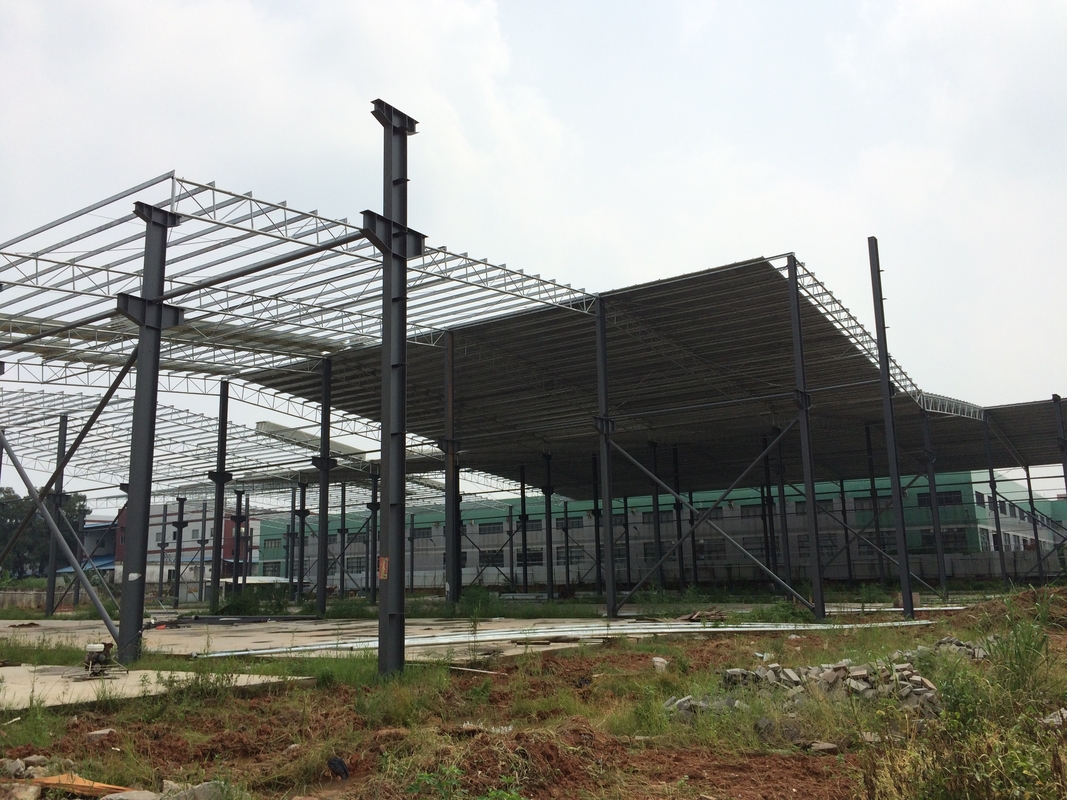

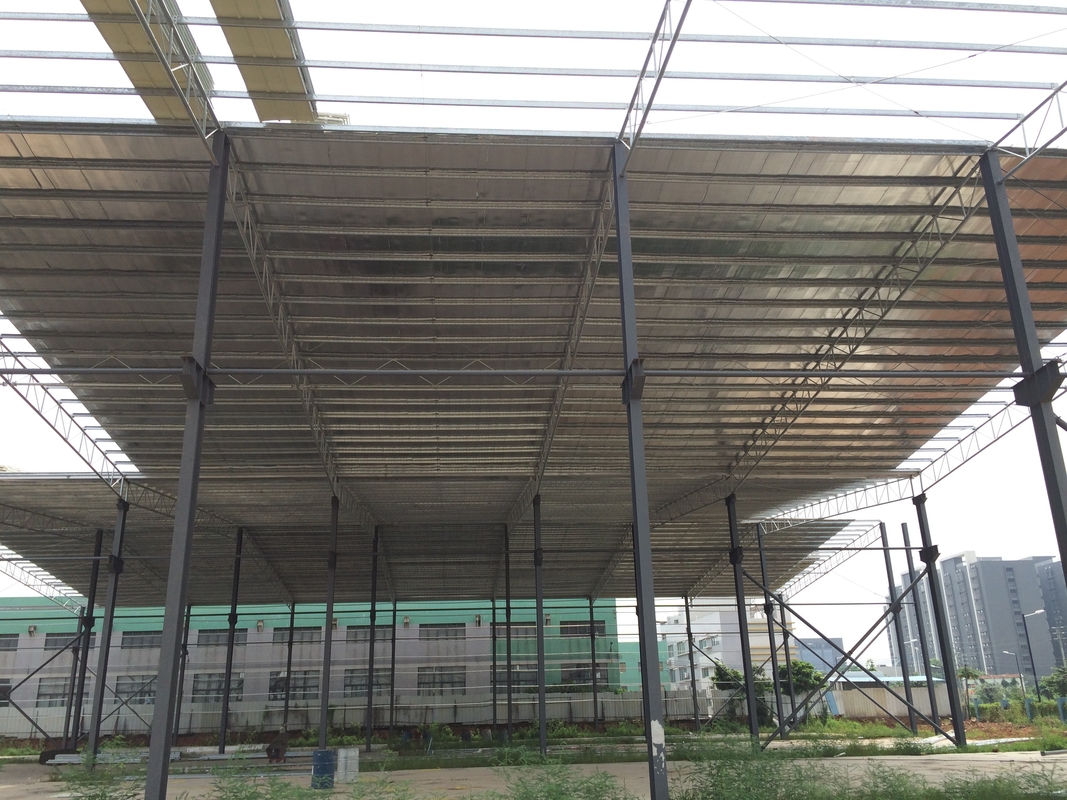

Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout 0

Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout 1



Steel Structure Features :
1. A strong steel
clear span framing.
2. Providing a column-free interior designed to accommodate a variety of layouts.
3. Versatility that can allows client to add any components, like windows,doors,interior partitions.
4. Cost saving and easy to transport.
5.
Wind resistance rating 120~150 km / h.

6. Seismic rating grade 8 earthquake.



Why choose Steel Structure?

1. Low maintenance
2. Energy efficiency
3. Durability
4. Pest resistance
5. Fire retardancy
6. May be less expensive to insure



Steel workshop installation pictures display :



Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout 2







Container loading :

Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout 3



About us
Foshan TianPuAn Building Materials Technology Co., Ltd. (TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with a total area covered 20,000square meters plant and equipped an automatic spraying line and automatic welding machine.

Hot Dip Galvanized Long Span Steel Structure Workshop With Efficient Production Flow And Layout 4



Our services



1. Design Services



2. Project Services

Simple or complex, our special project services team quickly and expertly handles your project.



3. Private manufacturing services(OEM)

We can manufacture and deliver high-quality metal building systems under your brand name.
Private Label Services.



4.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
