Long Span Durable Industrial Steel Structure Workshop Building For Efficient Production Flow
Product Description
Product type: steel workshop buildings
Our steel structure workshop is suitable for a wide range of industries, including manufacturing, assembly, fabrication, and warehousing. It provides a functional and reliable space to support efficient operations and promote productivity.
Steel Structure Features :
1. A strong steel clear span framing.
2. Providing a column-free interior designed to accommodate a variety of layouts.
3. Versatility that can allows client to add any components, like windows,doors,interior partitions.
4. Cost saving and easy to transport.
5. Wind resistance rating 120~150 km / h.
6. Seismic rating grade 8 earthquake.
Steel structure frame building benefit:
1. Wind resistance
The section steel structure has the advantages of light weight, high strength, good overall rigidity and strong deformability. The building's self-weight is only one fifth of that of the brick-concrete structure. It can withstand the hurricane of 70 meters per second, so that life and property can be effectively protected.
2. Safty and comfort
The light steel wall adopts high efficiency and energy saving system, which has breathing function and can adjust indoor air dry and humidity. The roof has ventilation function, which can form a flowing air room over the interior of the roof, and ensure the ventilation and heat dissipation demand of the interior of the roof.
3.Quick installation
All dry work construction is not affected by environmental season. A building of about 300 square meters can complete the whole process from foundation to decoration in only 5 workers and 20 working days.
Steel workshop buildings materials component :
| Main Steel Frame | H section steel | Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface processing | Alkyd paint or galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Belt bar | Φ89*3, Steel Q235, processed and painted | |
| Small brace | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Outer-roof panel | Sandwich panel or corrugated steel plate | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Gutter | Made from 0.8mm thick sheet steel | |
| Rainspout | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Ventilation equipment | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |

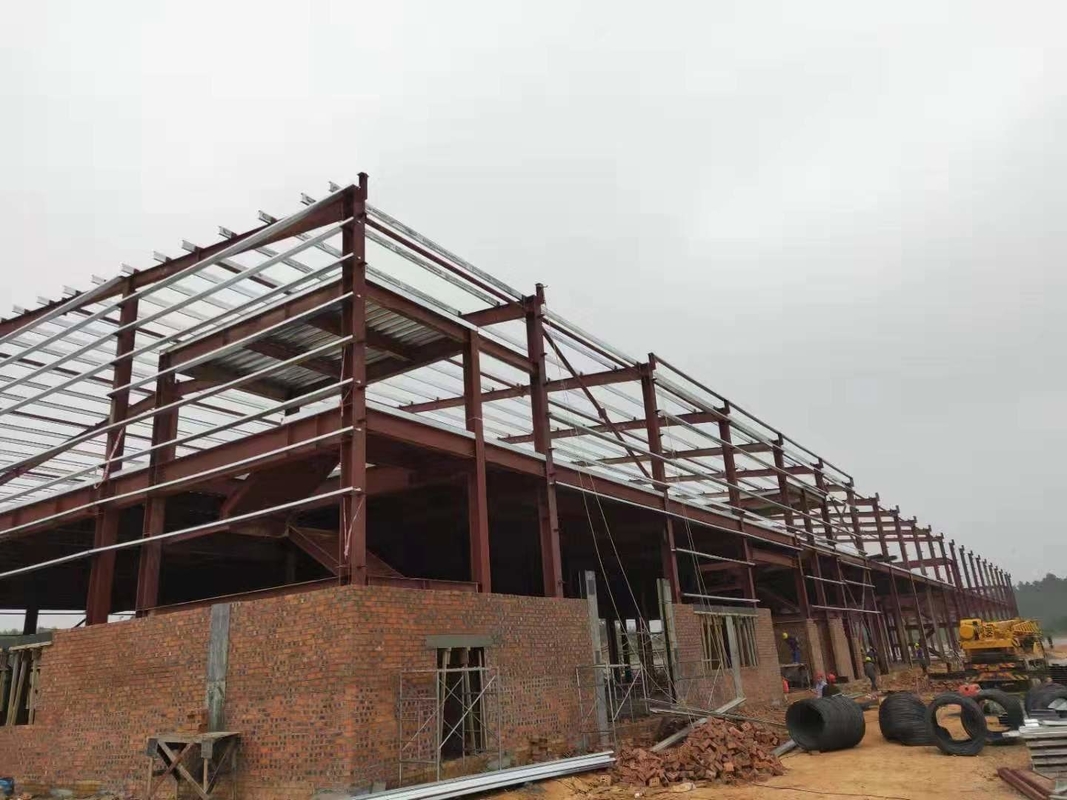

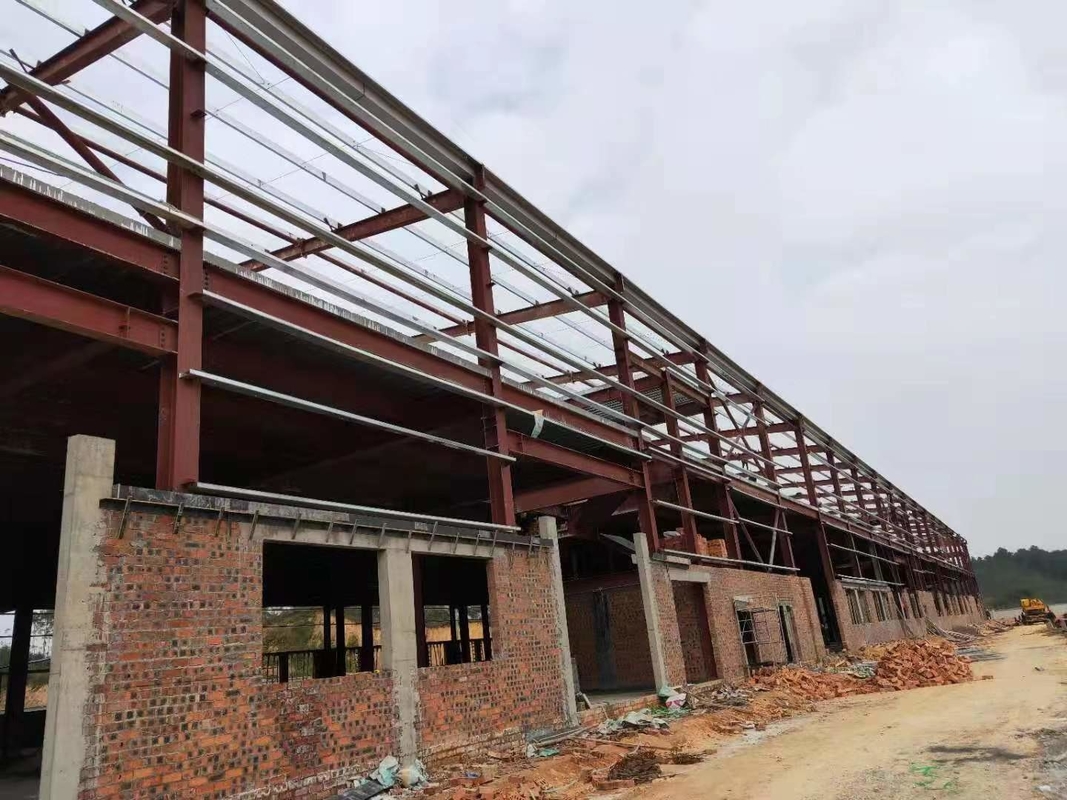

Steel workshop pictures display :
