Custom Industrial Light Steel Structure Warehouse Building For Quick Installation
  • Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation
  • Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation

Custom Industrial Light Steel Structure Warehouse Building For Quick Installation

Place of Origin Guangdong Foshan
Brand Name TPA Housing
Certification ISO, SGS,BV
Model Number TPA-SSW63
Product Details
Size:
Customized
Materials:
Q235 Q345 Low Carbon Steel
Standard:
GB
Type:
Light Steel Structure
Wall/Roof:
Sandwich Panel Or Color Steel Sheet
Structural Steel Fabrication:
Painting/galvanized
Column & Beam:
Hot Rolled / Welded H Section
Door:
Sliding / Rolling /Steel Door
Window:
PVC /Aluminum Alloy
Insulation:
EPS, Glass Wool, Rock Wool, PU
Purlin:
C/Z Galvanized Steel(Q235)
Life Span:
About 50 Years
High Light:

Industrial Light Steel Structure Warehouse

,

Quick Installation Steel Structure Warehouse

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Custom Design Industrial Light Steel Structure Warehouse Building For Quick Installation





Product material parameter



Anchor bolt M20
High streng bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool,color sheet both sides 0.426mm
Wall panel 75mm rock wool,color sheet both sides 0.426mm
Floor deck

1.0mm

Steel door

900*2100

Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet

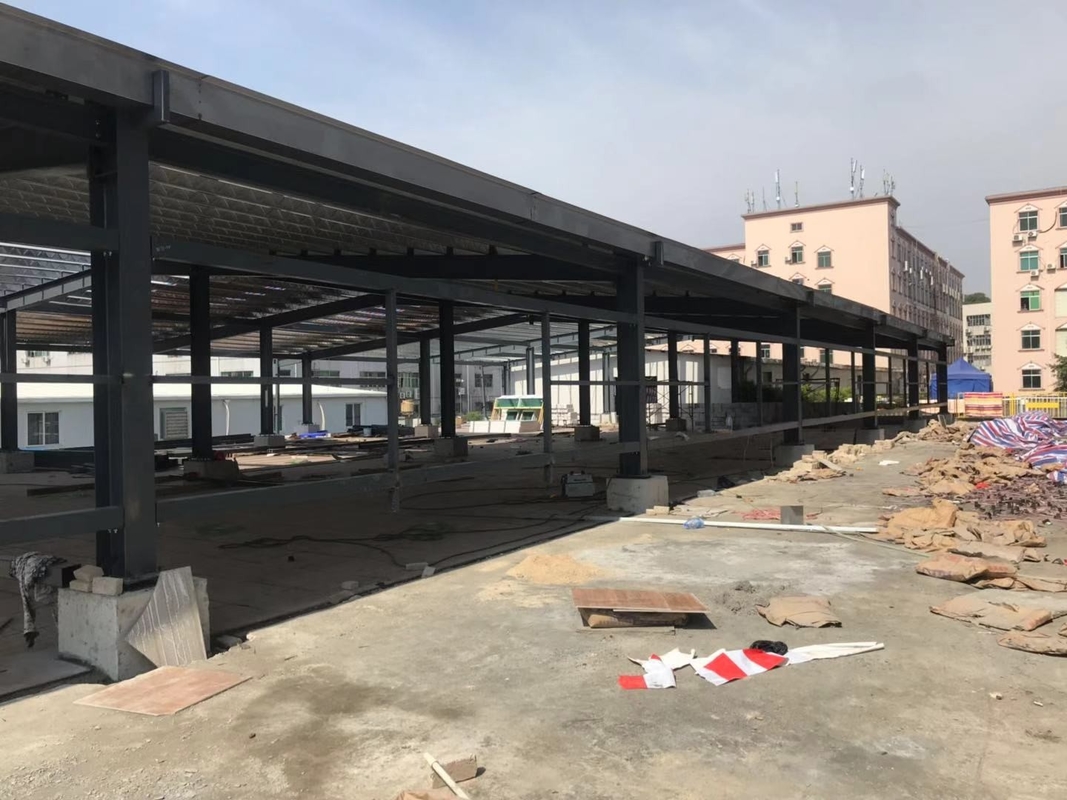

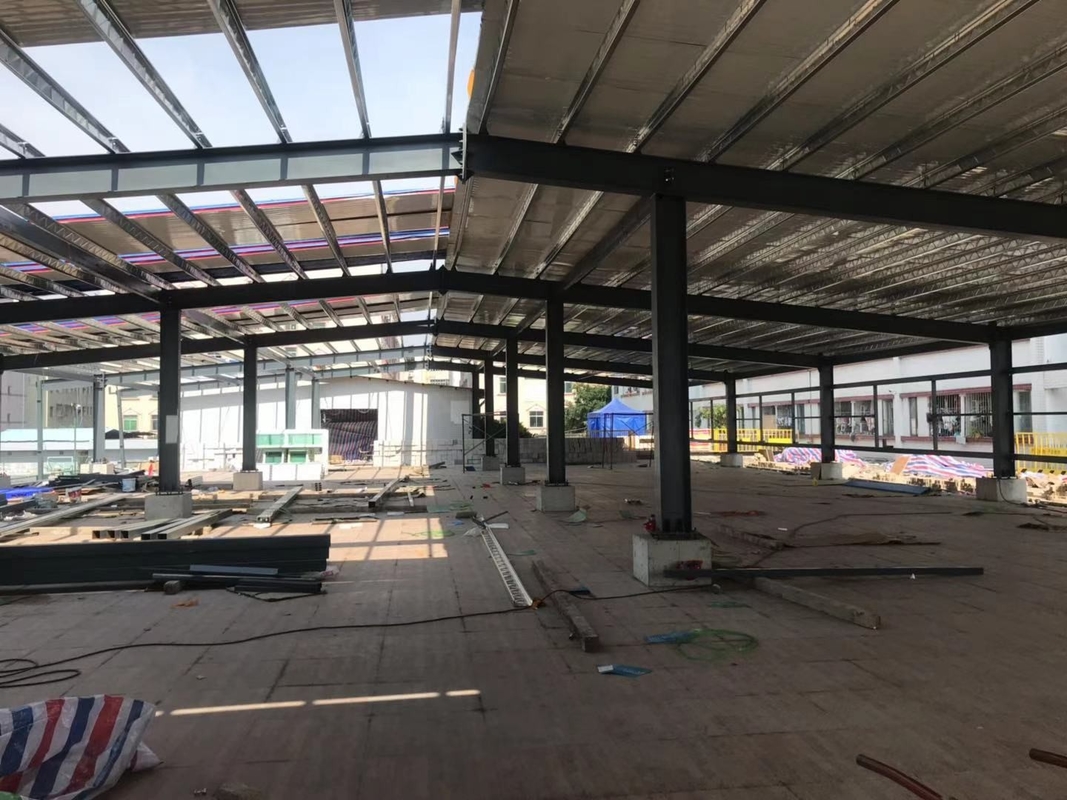

About this building



Our steel structure warehouse is a robust and versatile solution for efficient storage and logistics operations. Designed with high-quality steel components, it offers superior strength, durability, and cost-effectiveness for various industrial and commercial applications.

Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 0





Basic Design Requirements: design Load: (very important)



1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:





Drawings & Quotation:


1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.



Advantage of steel structure construction



1. Steel is a highly durable metal. It can withstand a considerable amount of external pressure. Hence, steel structures are earthquake resistant whereas concrete structures are brittle. Concrete is not as resistant as steel.

2. Steel structures have a good load carrying capacity unlike concrete structures, which have a low load carrying capacity.

3. Steel is a tensile metal. It has a high strength to weight ratio. Steel structures weigh 60% lesser than concrete.

4. Steel structures can be made without a foundation but this is not applicable to concrete structures as they are heavy.

5. The construction process is faster with steel structures as they are easy to erect. This contributes to faster project completion. On the other hand, concrete construction is time-consuming.

6. Having a good scrap value also makes structural steel a better option than concrete which has practically no scrap value.

7. Steel structures can be easily fabricated and mass produced. They are so versatile that they can be easily assembled, disassembled and replaced. Steel structures can be modified even for last minute changes.

8. Another advantage of steel structures is that they can be constructed off-site by professional steel fabricators and then assembled on site.

9. Steel structures are an eco-friendly option as they are easily recyclable. This means you get to save money in waste management.

10. Lastly, steel structures are easy to transport as they are lightweight. Steel structure construction is a safe option, there are no health hazards of using steel structures in construction.





Loading pictures reference



Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.



Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 1





Steel Structure Building materials and accessories



Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 2

Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 3



About us


Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.

Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 4

Custom  Industrial Light Steel Structure Warehouse Building For Quick Installation 5
