Two-Storey Prefabricated Light Steel Structures Building Construction For Fire Services
Product type: light steel structure building
Product Description
Our steel structure fire station is designed and engineered to provide a reliable and efficient facility for firefighting and emergency response operations. The fire station is constructed using high-quality steel components, ensuring durability, strength, and resilience to withstand various environmental conditions.
Features:
* Strong and Lightweight
* Durable
* Non-combustible
* Versatility
* Better for the Environment
* Sustainable Building Materia
Why steel?
1. Steel can be recycled. Rather than paying landfill fees for non-recyclable construction waste, your company will be able to recycle steel and metal building components.
2. Steel is so durable, and requires so little maintenance, it is a more economic choice for building owners.
3. Innovation in steel production, combined with greater competition to meet rising steel demands, has brought steel prices lower than they've been in twenty years.
4. Due to a steel structures' almost unrivaled ability to withstand high winds, heavy snow loads, fire and seismic activities, combined with their resistance to pests and decay, insurance companies often offer lower premiums on policies underwritten for metal buildings.
5. Faster construction times means fewer interest payments to the lender, who typically requires that interest-payments are made through the duration of the construction process.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed/ exhibition hall, agricultural storage, logistic centers etc.
Materials component
| Embedded parts | M24/M27/M30 |
| High strength bolt / Common bolt /Turn buckle /Galvanized bolt | M20 |
| Steel column(Q235B) | HN(200~500)*200*9*14 |
| Wind column(Q235B) | HN(198~400)*200*7*11 |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
| Tie rod | ∅89/114*3.0 steel bar |
| Horizontal bracing | ∅20/22/25 steel bar |
| Column bracing | ∅20/22/25 steel bar |
| Roof purlin (galvanized) | C160/180/220*2.0 |
| Wall purlin (galvanized) | C160/180/220*2.0 |
| Connecting plate | 3mm～12mm steel sheet |
| Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Gutter | PVC/Galvanized steel materials |
| Down pipe | ∅110 PVC materials |
| Electric galvanized rolling gate | W5000*H5000(customized size) |
| Sandwich panel door | W800*H2100(customized size) |
| Window | PVC/Aluminum sliding window W1100*H1200(customized) |
| Trimming | 1.0mm galvanized/ steel sheet |
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completed. Always install several section to ensure no problems to installation
Price
We can quote if you can offer the following information:
| Item Name | |
| Size | Length,Width,Roof Height and Eave Height |
| Column and Beam | Hot rolled or welded H section beam |
| Purlin | C-section and Z-section |
| Roof and Wall |
Single layer corrugated sheet sheet or EP/Rock Wool/PU sandwich panel |
| Door and Window | Rolling up / sliding / side-hung door and window |
| Surface | Painting or Hot-dipped galvanized |
| Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have |

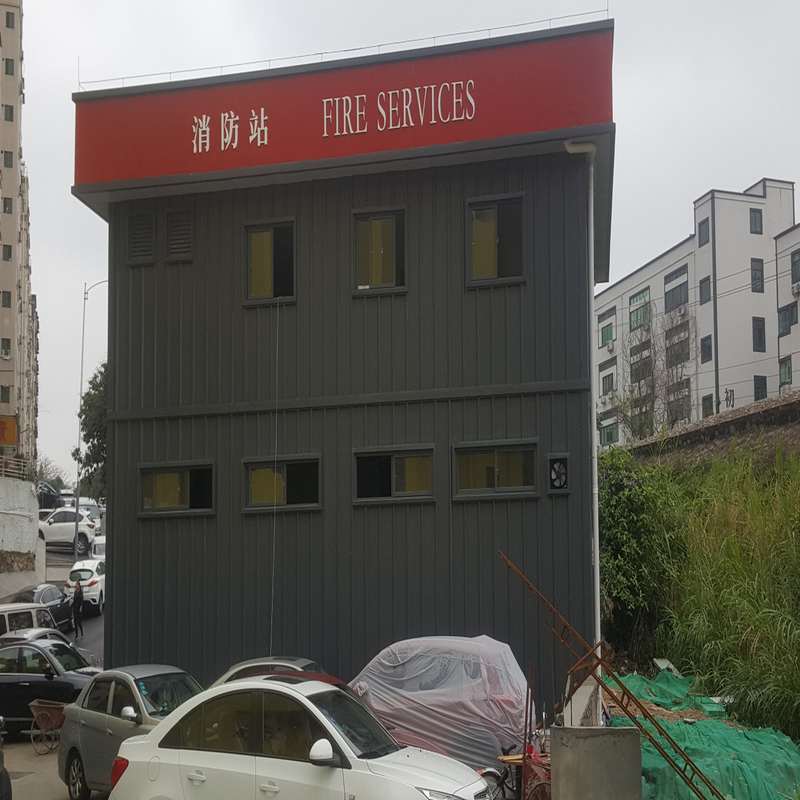

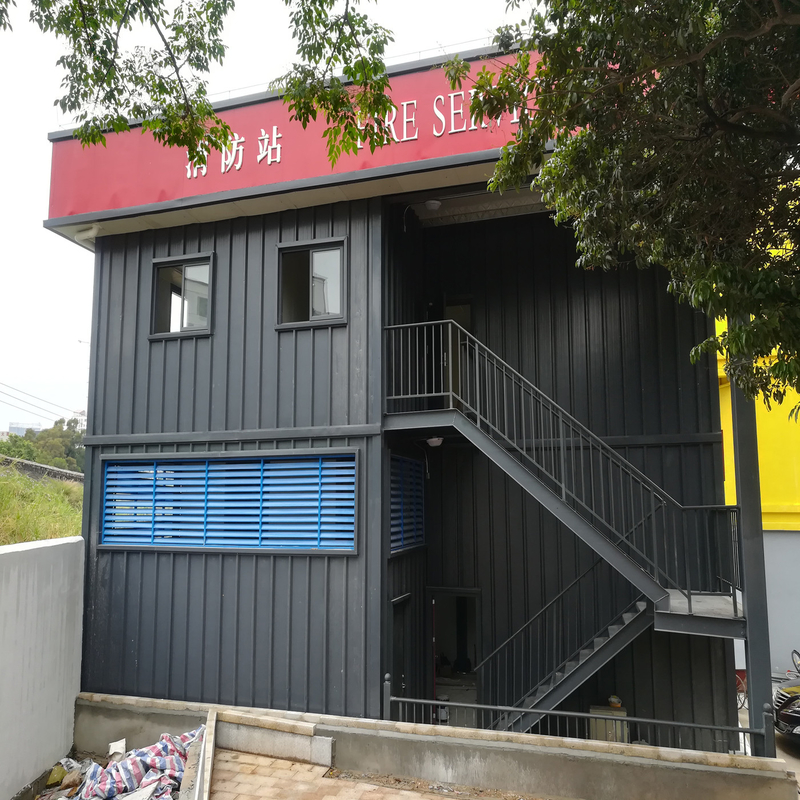

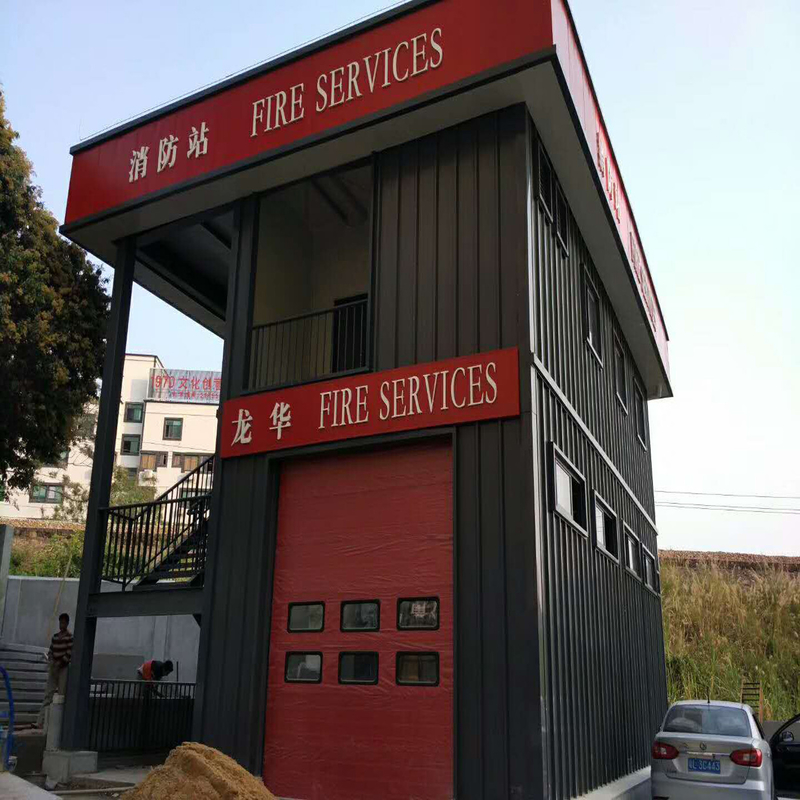

Light steel structure buildings installation pictures display
