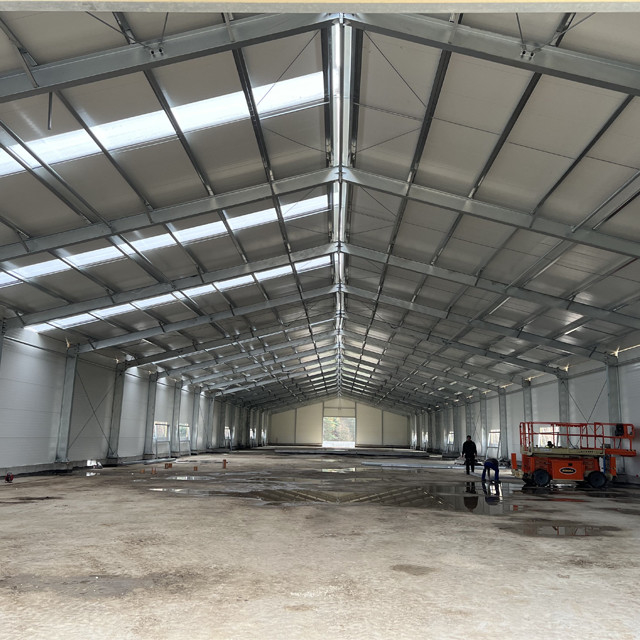

Prefabricated Steel Structure Warehouse Building with M20 Anchor Bolt & Rockwool Wall Panel
A steel structure warehouse building is crafted from steel. From the beams to the columns, these steel warehouses are meant to provide a sturdy warehouse but without the costs of a traditional warehouse. This type of infrastructure is more cost-effective and lightweight, making them much easier to put up if you are in a hurry or you are on a budget.
Product material parameter
|High strength bolt||M20, 10.9s|
|Column(Q345B)||Square tube250*250*10*10 Square tube250*250*5*5|
|Roof frame beam(Q345B)||HN294X200X8X12|
|Floor main beam(Q345B)||HN294X200X8X12|
|Floor secondary beam(Q345B)||HN244X175X7X11|
|Staircases(Q235B)||H200X200X6X8+5mm chequered plate|
|Roof tile||75mm rock wool, color sheet both sides 0.426mm|
|Wall panel||75mm rock wool, color sheet both sides 0.426mm|
|Zinc steel handrails||Square tube80X40+40+30+20|
|Trimming||1.0mm galvanized sheet, color steel sheet
Steel structure warehouse features:
Connection of a steel beam to a steel column?
The standard way of connecting beams to columns is to provide moment transfer through full penetration butt welds between the beam flanges and column flanges (strong axis connections) or continuity plates (weak axis connections) and to provide shear transfer through the beam web connection.
Steel structure Warehouse Drawings & Quotation:
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process step.
3. Inspection during production.
4. Inspection after completed. Always install several sections to ensure no problems with installation
We can quote if you can offer the following information:
|Size||Length, Width, Roof Height, and Eave Height|
|Column and Beam||Hot rolled or welded H section beam|
|Purlin||C-section and Z-section|
|Roof and Wall||Single-layer corrugated sheet or EP/Rock Wool/PU sandwich panel|
|Door and Window||Rolling up / sliding / side-hung door and window|
|Surface||Painting or Hot-dipped galvanized|
1.Wind speed 2.Snow load 3.Earthquake grade if have
