Place of Origin:
Foshan,Guangdong
Brand Name:
TPA Housing
Certification:
SGS,BV
Model Number:
TPA-ST014
The cost of light steel structures is already lower than that of reinforced concrete structures. When the span of the factory building is larger, its advantages become more obvious.
Product Description
Product type: Modern steel structure industrial factory building
Steel structure warehouse is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Why choose steel structure warehouse?
1. Light-weightness and more resistance to earthquakes and strong winds
2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel
3.Shorter construction period with the help of modularity and error-free prefabrication of building elements
4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory
5. Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space
Steel structure warehouse materials component
Embedded parts | M24/M27/M30 |
High strength bolt / Common bolt /Turn buckle /Galvanized bolt | M20 |
Steel column(Q235B) | HN(200~500)*200*9*14 |
Wind column(Q235B) | HN(198~400)*200*7*11 |
Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
Tie rod | ∅89/114*3.0 steel bar |
Horizontal bracing | ∅20/22/25 steel bar |
Column bracing | ∅20/22/25 steel bar |
Roof purlin (galvanized) | C160/180/220*2.0 |
Wall purlin (galvanized) | C160/180/220*2.0 |
Connecting plate | 3mm~12mm steel sheet |
Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
Gutter | PVC/Galvanized steel materials |
Down pipe | ∅110 PVC materials |
Electric galvanized rolling gate | W5000*H5000(customized size) |
Sandwich panel door | W800*H2100(customized size) |
Window | PVC/Aluminum sliding window W1100*H1200(customized) |
Trimming | 1.0mm galvanized/ steel sheet |
Steel structure warehouse features
a. Low maintenance costs
b. Environmentally friendly, recycling.
c. Flexibility when fixing doors, windows and interior partitions
d. Steel structure construction is strong, durability and stability.
e. Steel components is resistant to termites and other destructive insects.
f. Long service life for more than 50 years
g. Fast construction ,easy installation and convenient to transport.

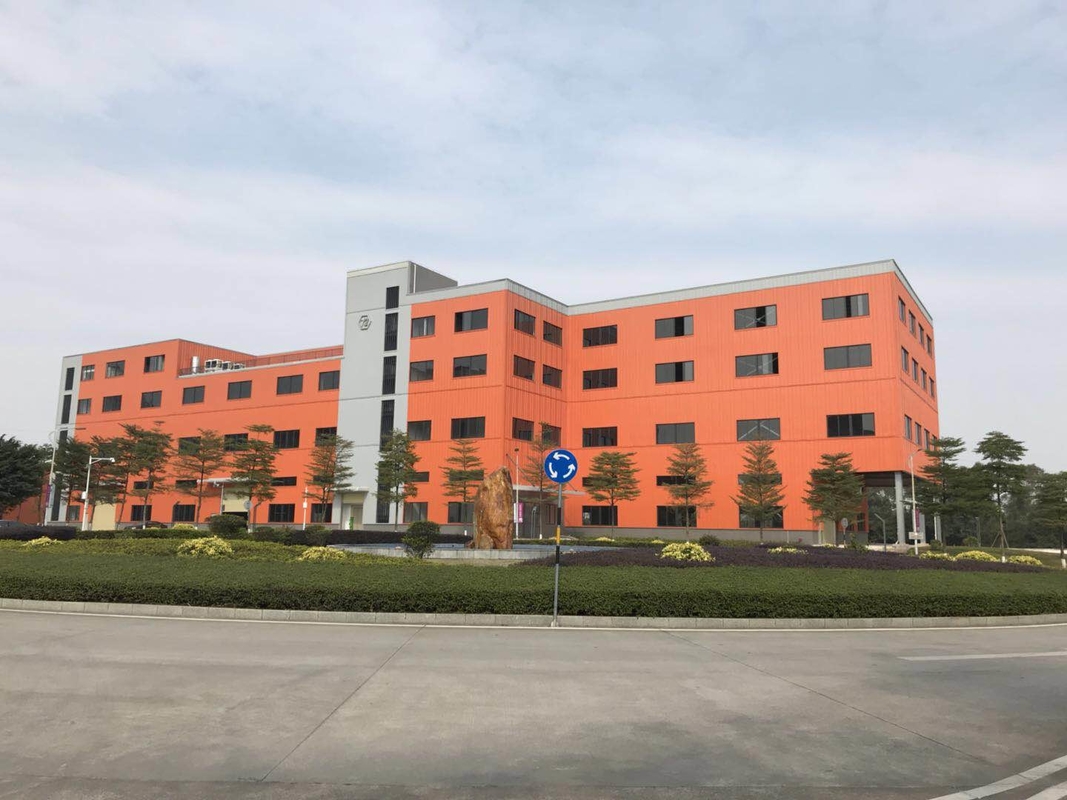

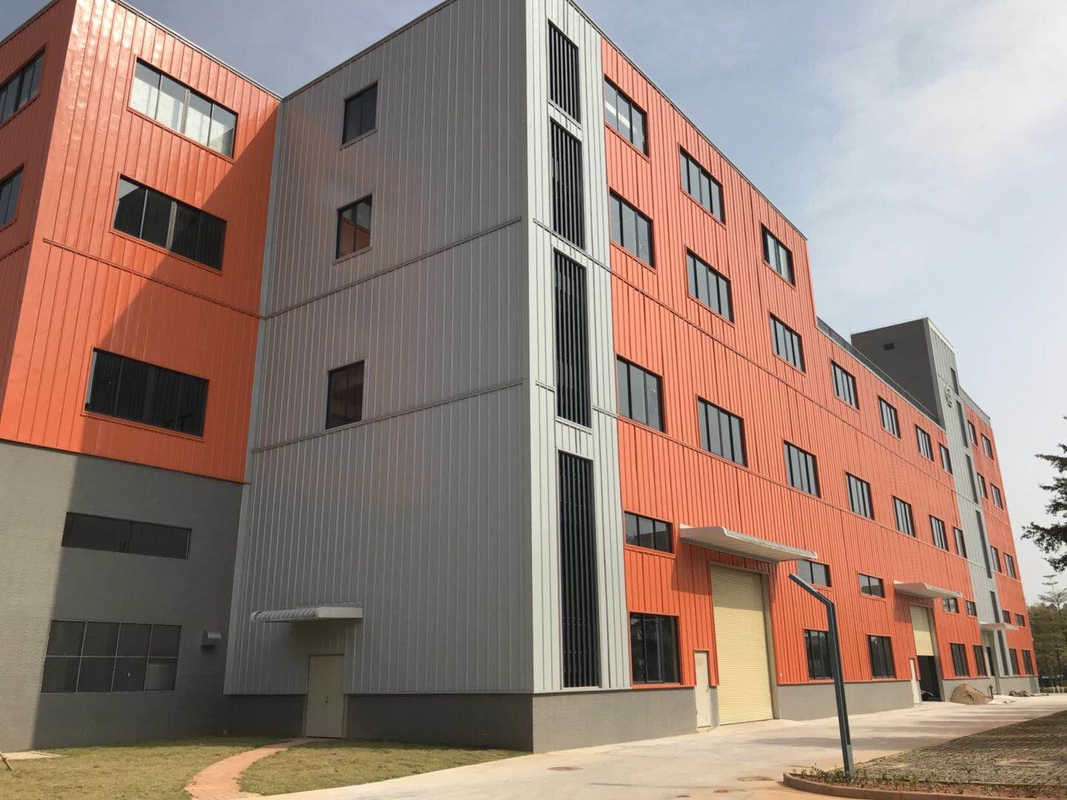

Product installation display
Why choose us
1- Customized design service
2- Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3- After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication
Send your inquiry directly to us
