High Durability Building Material For Tram Terminal Steel Structure Platform

High Durability Building Material For Tram Terminal Steel Structure Platform

High Durability Steel Structure Platform

Tram Terminal Steel Structure Platform

Place of Origin:

Guangdong Foshan Lishui, China

Brand Name:

TPA Housing

Certification:

ISO, SGS,BV

Model Number:

TPA-ST022

Contact Us
Request A Quote
Product Details
Material:
Q235 Q345 Low Carbon Steel
Type:
Light Steel Structure Frame Building
Size:
Customized
Life Span:
Main Steel Structure Frame Is About 50 Years
Structural Steel Fabrication:
Painting/galvanizing
Floor:
Steel Plate
Feature:
Secure, Durable
Product Name:
Steel Platform
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

High Durability Building Material For Tram Terminal Steel Structure Platform ​





1. Product material parameter



Anchor bolt M20
High streng bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool,color sheet both sides 0.426mm
Wall panel 75mm rock wool,color sheet both sides 0.426mm
Floor deck 1.0mm
Steel door 900*2100
Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet

High Durability Building Material For Tram Terminal Steel Structure Platform 0

2. About this building



Whether you’re expanding your current business or starting a new venture in the industrial sector, a metal or steel building from TPA Housing steel structure building is your solution. At the core of our success is a team of dedicated, skilled engineers who will provide you with a high quality product. They will take the time to help you design and achieve your vision. Industrial buildings such as warehouses, welding shops and heavy equipment storage facilities require durability and that’s exactly what you get when you purchase one of our steel buildings. No building is too large and no requirement is too complex.





3. Advantage of steel structure construction



Following are a list of advantages of steel structure construction offers:

1. Steel is a highly durable metal. It can withstand a considerable amount of external pressure. Hence, steel structures are earthquake resistant whereas concrete structures are brittle. Concrete is not as resistant as steel.

2. Steel structures have a good load carrying capacity unlike concrete structures, which have a low load carrying capacity.

3. Steel is a tensile metal. It has a high strength to weight ratio. Steel structures weigh 60% lesser than concrete.

4. Steel structures can be made without a foundation but this is not applicable to concrete structures as they are heavy.

5. The construction process is faster with steel structures as they are easy to erect. This contributes to faster project completion. On the other hand, concrete construction is time-consuming.

6. Having a good scrap value also makes structural steel a better option than concrete which has practically no scrap value.

7. Steel structures can be easily fabricated and mass produced. They are so versatile that they can be easily assembled, disassembled and replaced. Steel structures can be modified even for last minute changes.

8. Another advantage of steel structures is that they can be constructed off-site by professional steel fabricators and then assembled on site.

9. Steel structures are an eco-friendly option as they are easily recyclable. This means you get to save money in waste management.

10. Lastly, steel structures are easy to transport as they are lightweight. Steel structure construction is a safe option, there are no health hazards of using steel structures in construction.





4. Basic Design Requirements: design Load: (very important)



1. Snow load:

2. Wind load:
3. Seismic magnitude:

4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:



5. An steel structure building can also be used for:



1) Industrial Buildings

2) Manufacturing Facilities

3) Warehouses

4) Construction Equipment Storage

5) Machinery Storage

6) Tool Storage

7) Warehouse Expansion

8) & More, tell us about your needs here!

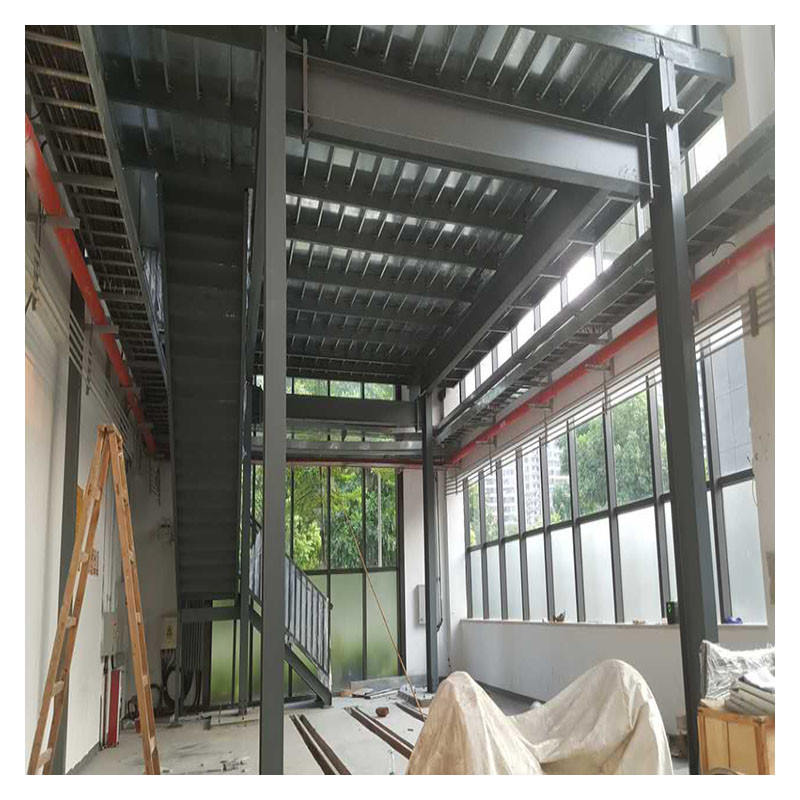

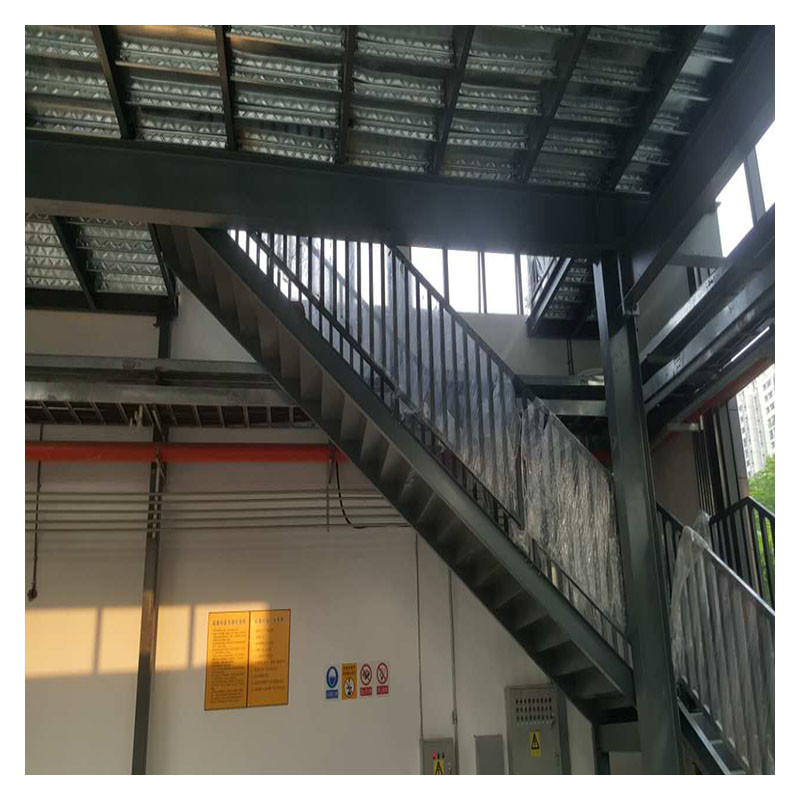

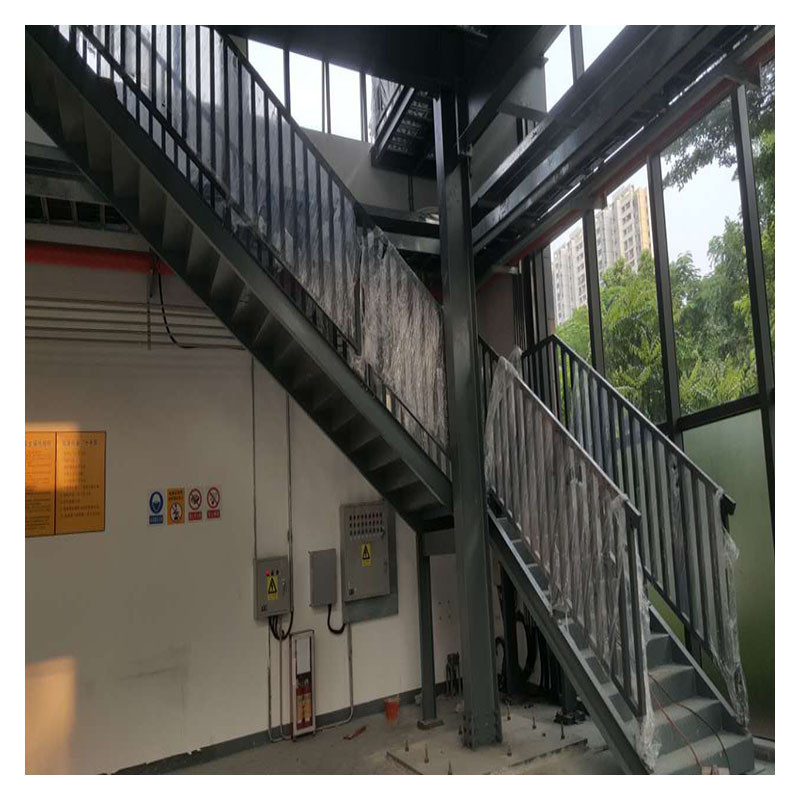

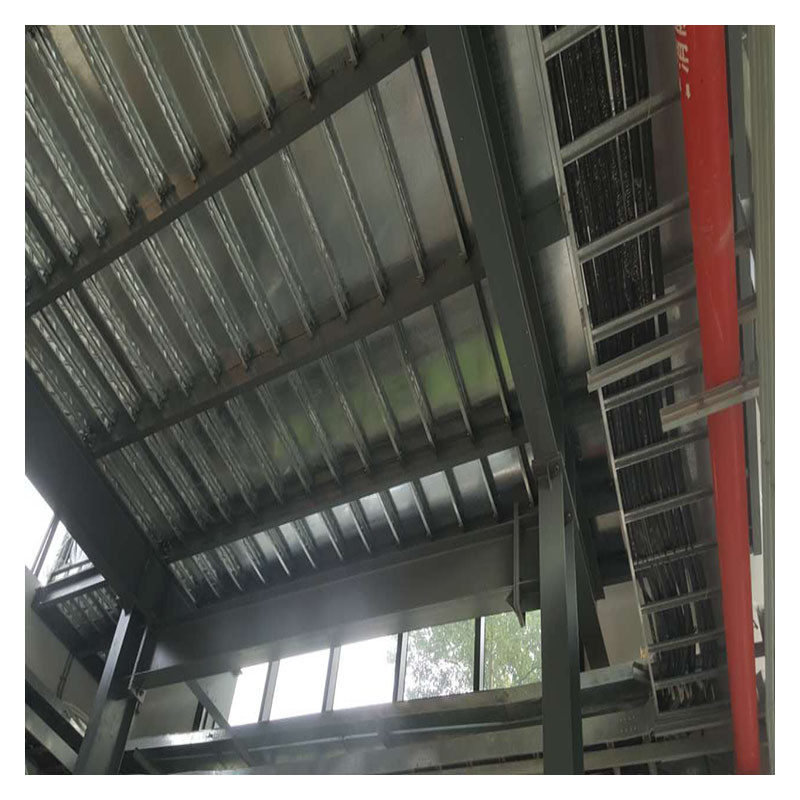

6.Reference production picture



High Durability Building Material For Tram Terminal Steel Structure Platform 1





7.About us



Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.



High Durability Building Material For Tram Terminal Steel Structure Platform 2



We look forward your inquire.
