Steel Structure Workshop Prefabricated Building Construction With Economical Design

Steel Structure Workshop Prefabricated Building Construction With Economical Design

Economical Steel Structure Workshop

Economical Design Steel Structure Workshop

Prefabricated Building Steel Structure Workshop

Place of Origin:

Foshan,Guangdong

Brand Name:

TPA Housing

Certification:

ISO,SGS,BV

Model Number:

TPA-SWB20

Contact Us
Request A Quote
Product Details
Keywork:
Workshop, Warehouse, Storage,building
Purlin Section:
C Or Z Galvanized Steel
Steel Finish Work:
Painting Steel Or Galvanized Steel
Size:
Customized
Type:
Light Steel Structure
Roof & Wall:
EPS Sandwich Panel
Advantage:
Anti-Rust
Surface Treatment:
Galvainzed
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
L/C, T/T
Supply Ability
30000~50000 per month
Product Description

Galvanized Anti-Rust Metal Manufacturing Factory Steel Structure



Product Description

Product type: steel workshop buildings



The light steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.

The structure is connected by bolts and the walls are fixed with rivets. The steel structure parts and panels are light and easy to pack and transport. The biggest advantage is highest possible quality, cause steel frame buildings but made in a factory ready to assemble at your lot.

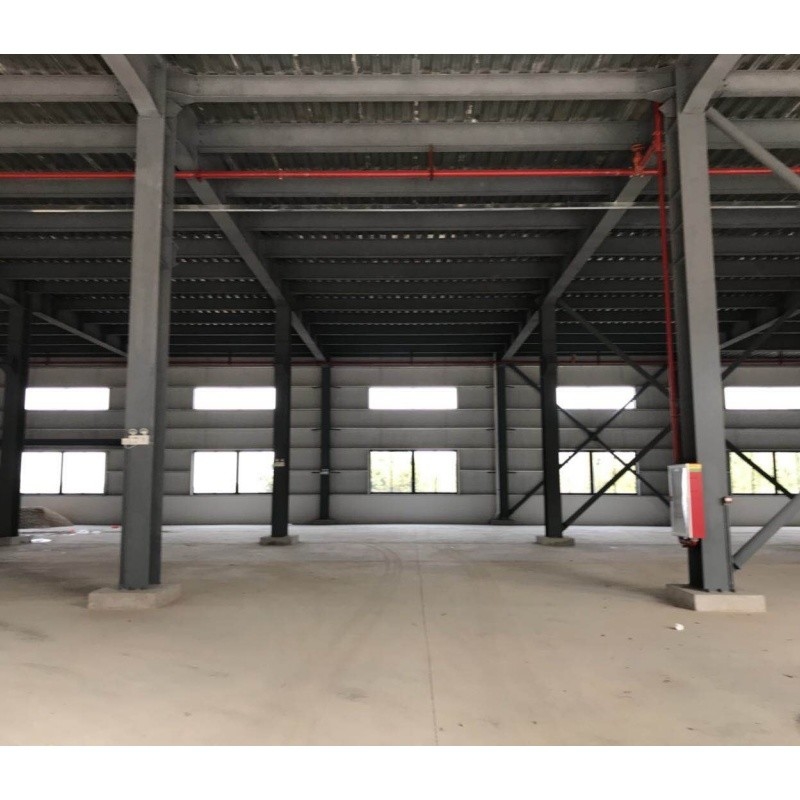

Steel Structure Workshop Prefabricated Building Construction With Economical Design 0

Steel building characteristics

- Light-weightness and more resistance to earthquakes and strong winds
- Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel
- Shorter construction period with the help of modularity and error-free prefabrication of building elements
- Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory
- Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space

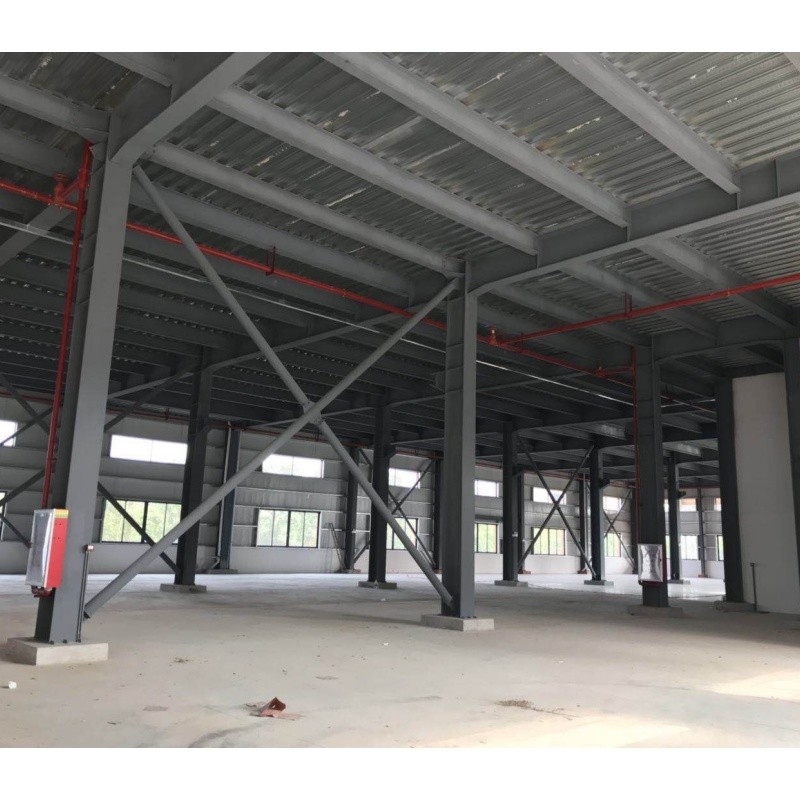

Steel Structure Workshop Prefabricated Building Construction With Economical Design 1

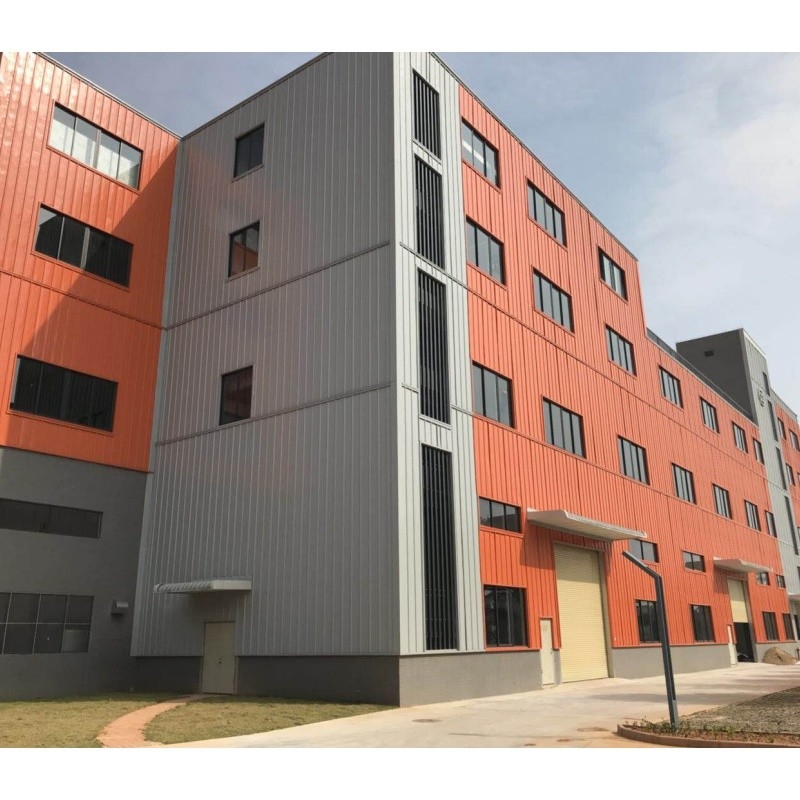

Steel Structure Workshop Prefabricated Building Construction With Economical Design 2

Steel workshop buildings materials component :

Main Steel Frame H section steel Q345 steel 8mm/10mm
  Welding Automatic submerged arc welding
  Rust removal Sand blasting
  Surface processing Alkyd paint or galvanized
  Intensive bolt Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
  Cross support Φ20, Steel Q235, processed and painted
  Belt bar Φ89*3, Steel Q235, processed and painted
  Small brace Φ12,Steel Q235, processed and painted
  Ordinary bolt Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
  Outer-roof panel Sandwich panel or corrugated steel plate
  Sky light 6mm thick PVC
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Gutter Made from 0.8mm thick sheet steel
  Rainspout Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
  Wall sandwich panel or corrugated steel plate
  Accessories Glass cement, self-tapping screws, etc.
  Edge cover Made from 0.5mm thick, colored sheet steel
  Ventilation equipment Ventilation ball
  Doors & windows Rolling door/sliding door PVC/alu/steel window

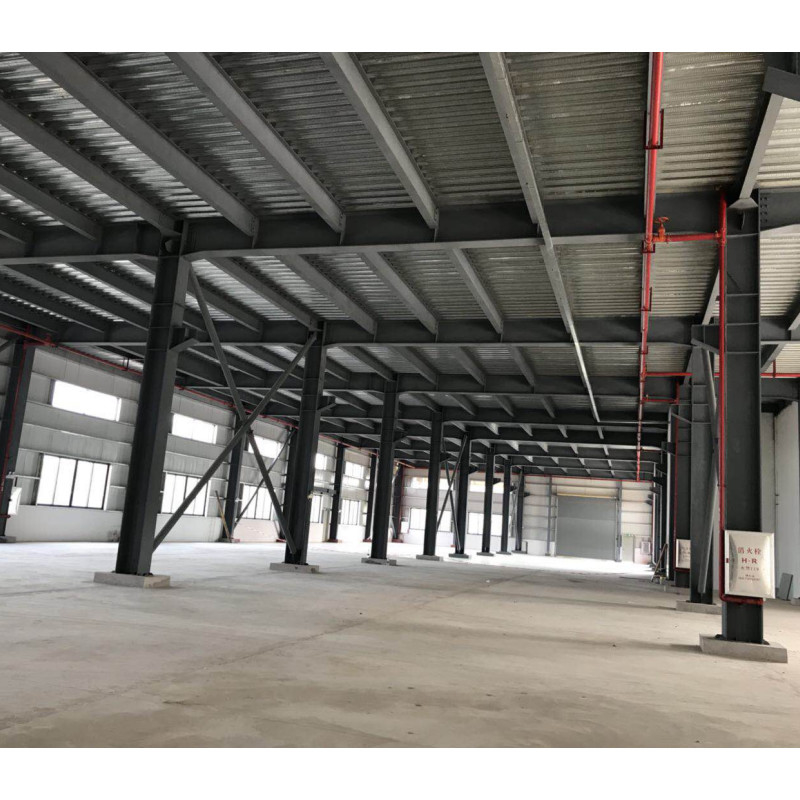

Steel Structure Workshop Prefabricated Building Construction With Economical Design 3

Why choose us
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication



Steel fabrication project display

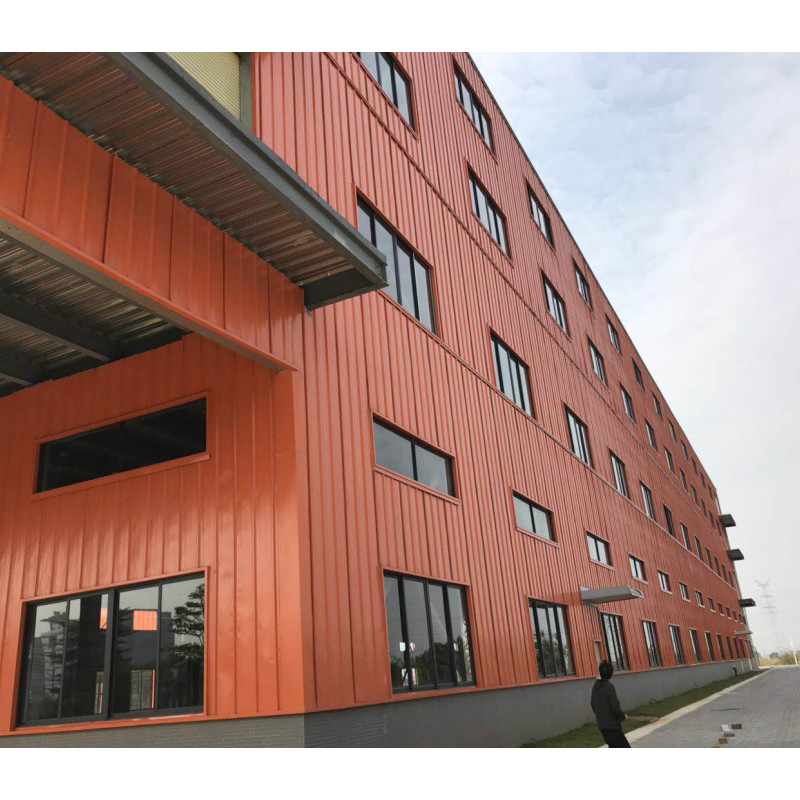

Steel Structure Workshop Prefabricated Building Construction With Economical Design 4
