Hot Styles Prefab Houses Steel Structure Hall Building

Hot Styles Prefab Houses Steel Structure Hall Building

Prefab Houses Steel Structure

Hot Styles Prefab Houses

Steel Structure Hall Building

Place of Origin:

Foshan, Guangdong

Brand Name:

TPA Housing

Certification:

ISO,SGS,BV

Model Number:

TPA-SD001

Contact Us
Request A Quote
Product Details
Color:
Up To Customers' Requirement
Application:
Light Steel Structure Hall Building,Leisure Villa
Life Span:
Steel Frame About 50 Years
Type:
Light Steel Structure Frame
Roof & Wall:
EPS Sandwich Panel
Thickness:
50 Mm
Dimension:
Up To Customers' Requirements
Key Word:
Steel Sturcture,Prefabricated Building
Window Material:
PVC/Aluminum Alloy
Material:
Q235 Q345 Low Carbon Steel
Insualtion:
50/75mm Rockwool/EPS/PU Sandwich Panel
Payment & Shipping Terms
Minimum Order Quantity
1 units
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C
Supply Ability
100000 square meters per month
Product Description

Hot Styles Prefab Houses Steel Structure Hall Building For Sale

Product type: Maldives three-story light steel structure holiday home


Production Characteristic

1. Strong construction,energy efficient,reduces construction time,cost saving,technology building,environmental friendly.

2.Construction-Dry construction method is adopted, which will not cause waste of water materials. Highly efficient and energy-saving, reducing construction time, saving costs, technological construction, and environmental protection.

3.Time-saving---TPA prefabricates every part of each house within the controlled environment of our factory, which greatly reduces the construction time consumed on site.

4. Cost Reduction---Unlike tradtional house builders,our prefabs technology significantly reduces the on-site workload, saving labor and cost.

5. Anti-earthquake Structure---It is a mature system named light gauge steel structure housing system. Our premium quality structural steel frames and building materials are selected to maximize safety and durability of each house.

6. Fresh Air Inside---We design our homes to maximize airflow and natural energy to keep spaces clean, bright and comfortable.

7. Water proof--we have a special treament for the waterproof

8.Usable area - The wall thickness of light steel structure is smaller, which can increase the effective usable area compared with brick-concrete structure.


Product Description

The main material of "Light Steel Villa" is light steel keel composed of hot-dip galvanized steel strips through cold rolling technology. After precise calculation and the support and combination of auxiliary parts, it has a reasonable bearing capacity to replace traditional houses. .


Materials component



Anchor boltM20
High strength boltM20, 10.9s
Shear nailM16
Common boltM20
BraceM12
Tie rodØ12
Column(Q345B)Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B)HN340X250X9X14
Roof frame beam(Q345B)HN294X200X8X12
Floor main beam(Q345B)HN294X200X8X12
Floor secondary beam(Q345B)HN244X175X7X11
Staircases(Q235B)H200X200X6X8+5mm chequered plate
Stair beam(Q235B)H300X200X6X8
Roof purlinC140X60X20X3.0
Connecting plate3~8mm
Roof tile75mm rock wool, color sheet both sides 0.426mm
Wall panel75mm rock wool, color sheet both sides 0.426mm
Floor deck1.0mm
Steel door900*2100
Aluminum windows2000*1500
Zinc steel handrailsSquare tube80X40+40+30+20
Trimming1.0mm galvanized sheet, color steel sheet

Hot Styles Prefab Houses Steel Structure Hall Building 0

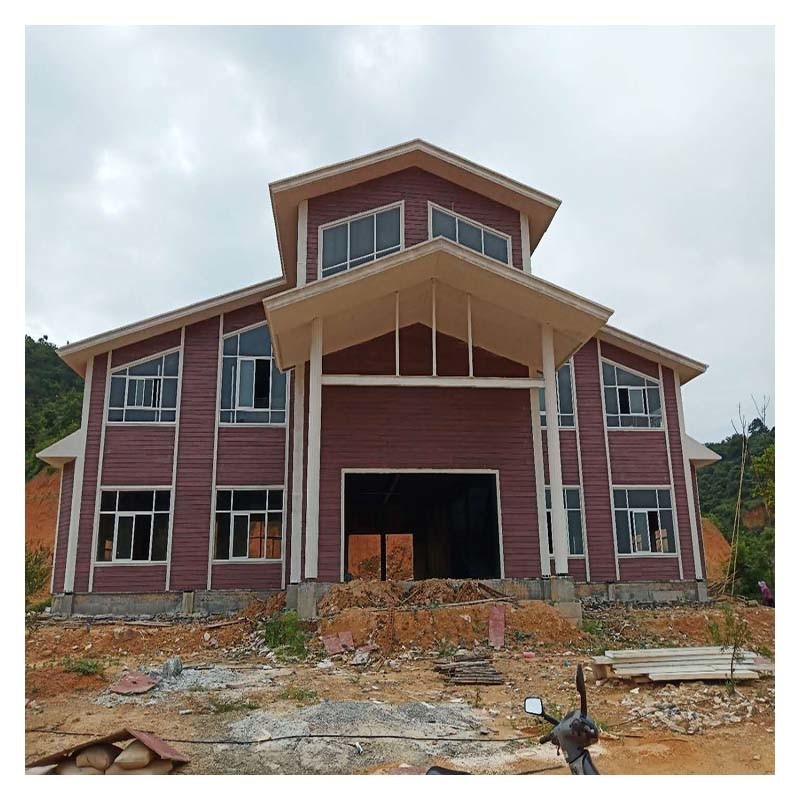

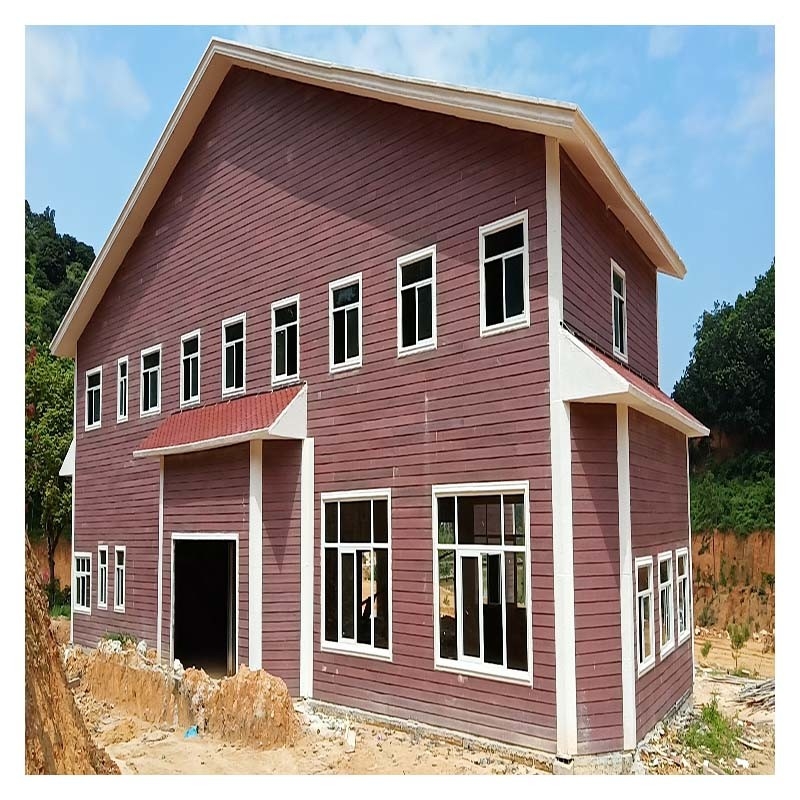

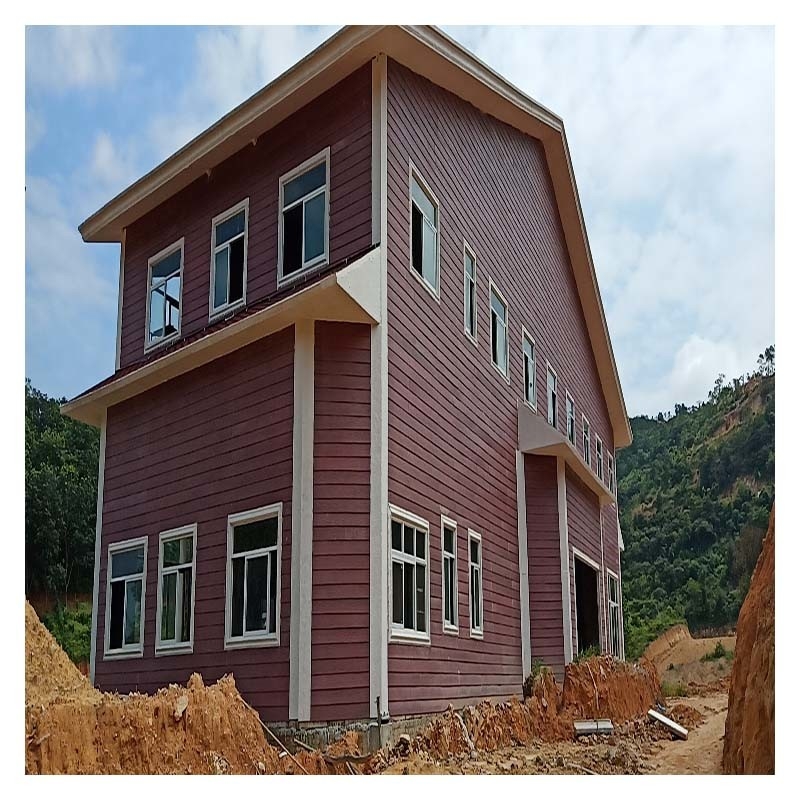

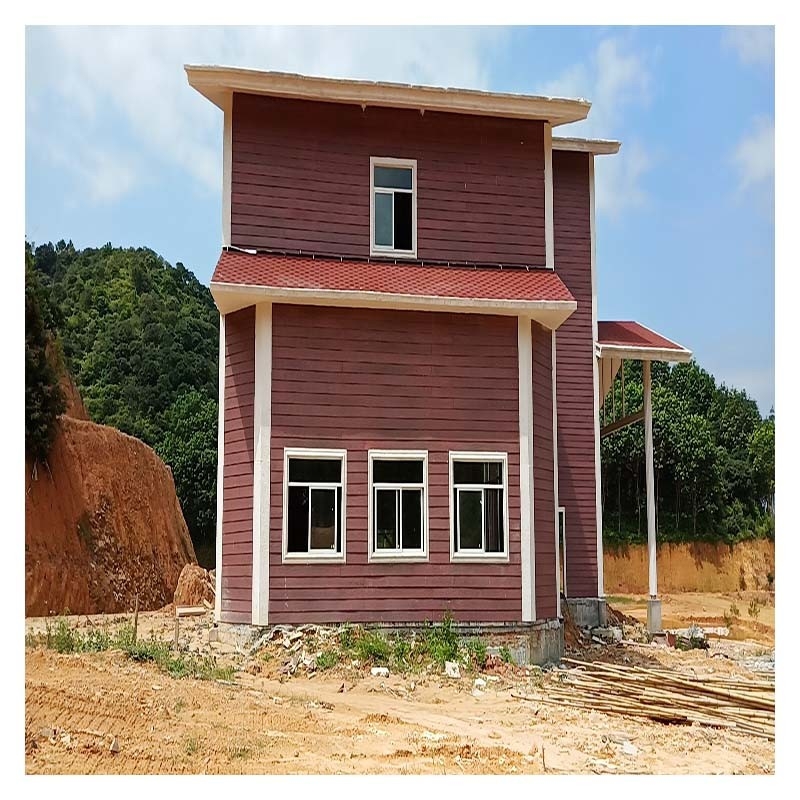

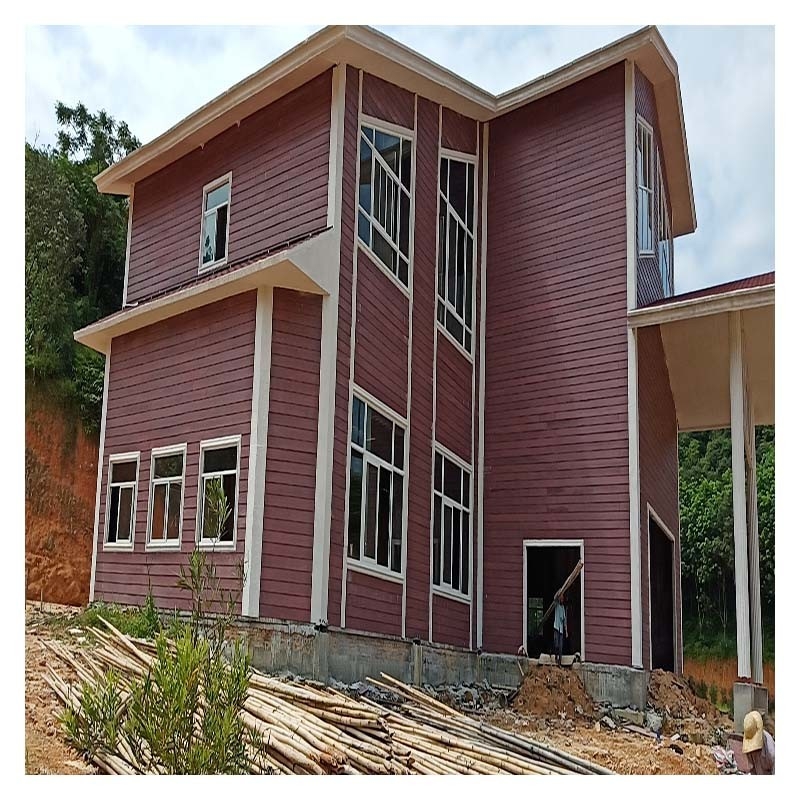

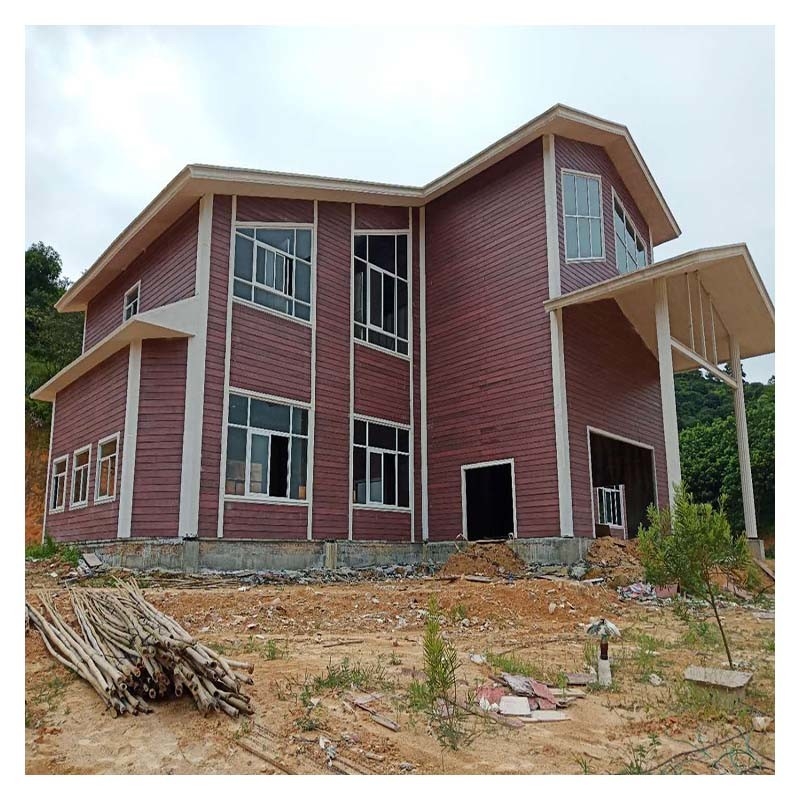

Installation disply
Hot Styles Prefab Houses Steel Structure Hall Building 1Hot Styles Prefab Houses Steel Structure Hall Building 2


Factory show
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.

We focus on producing custom-made economic and environmentally friendly prefab house. With the specialized techonology, professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.


Hot Styles Prefab Houses Steel Structure Hall Building 3
