Place of Origin:
Foshan, Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-HS013
Product Description
The main material of "Light Steel Villa" is light steel keel composed of hot-dip galvanized steel strips through cold rolling technology. After precise calculation and the support and combination of auxiliary parts, it has a reasonable bearing capacity to replace traditional houses. .Hot Styles Prefab Houses Steel Structure Hall Building For Sale
Product type:
Production Characteristic
1. Strong construction,energy efficient,reduces construction time,cost saving,technology building,environmental friendly.
2.Construction-Dry construction method is adopted, which will not cause waste of water materials. Highly efficient and energy-saving, reducing construction time, saving costs, technological construction, and environmental protection.
3.Time-saving---TPA prefabricates every part of each house within the controlled environment of our factory, which greatly reduces the construction time consumed on site.
4. Cost Reduction---Unlike tradtional house builders,our prefabs technology significantly reduces the on-site workload, saving labor and cost.
5. Anti-earthquake Structure---It is a mature system named light gauge steel structure housing system. Our premium quality structural steel frames and building materials are selected to maximize safety and durability of each house.
6. Fresh Air Inside---We design our homes to maximize airflow and natural energy to keep spaces clean, bright and comfortable.
7. Water proof--we have a special treament for the waterproof
8.Usable area - The wall thickness of light steel structure is smaller, which can increase the effective usable area compared with brick-concrete structure.
Materials component
| Name of material | Specification and material |
| Expansion bolt | M16 |
| Galvanized bolt | M12 |
| Self-tapping nail | M5 |
| Steel column(Q235B) | HN346*174*6*9 |
| Steel column(Q2355B) | HN298*149*5.5*8 |
| Roof column(Q235B) | HN198*99*4.5*7 |
| Column bracing | ∅89*3.0 |
| Connecting plate | |
| Roof purlin(Galvanized) | C80*40*20*1.8 |
| Roof tile | 50mm EPS sandwich panel+Resin tile |
| Outside wall panel | 100mm fiber cement board |
| Outside wall cladding | 9mm fiber cement board |
| Interior wall | 75 light gauge steel frame+6mm Calcium silicate board (including glass wool) |
| Floor tile | 600*600 |
| Toilet ceramic tile | 300*300 |
| Ceiling | PVC gypsum board |
| Gutter | PVC |
| Down pipe | PVC |
| Trimming | 1.0mm galvanized steel sheet |
Prefab house materials display

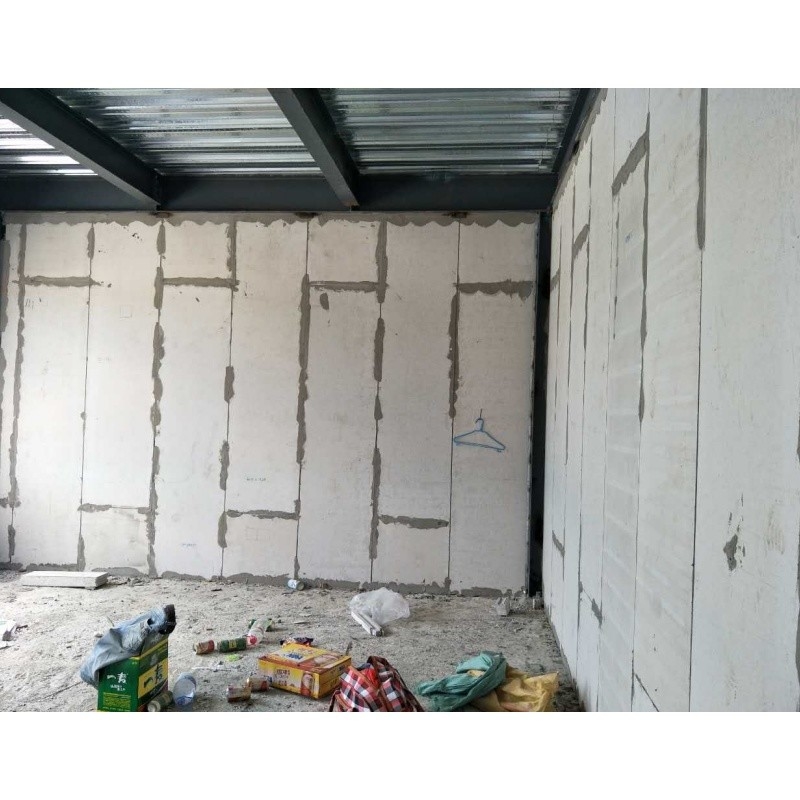

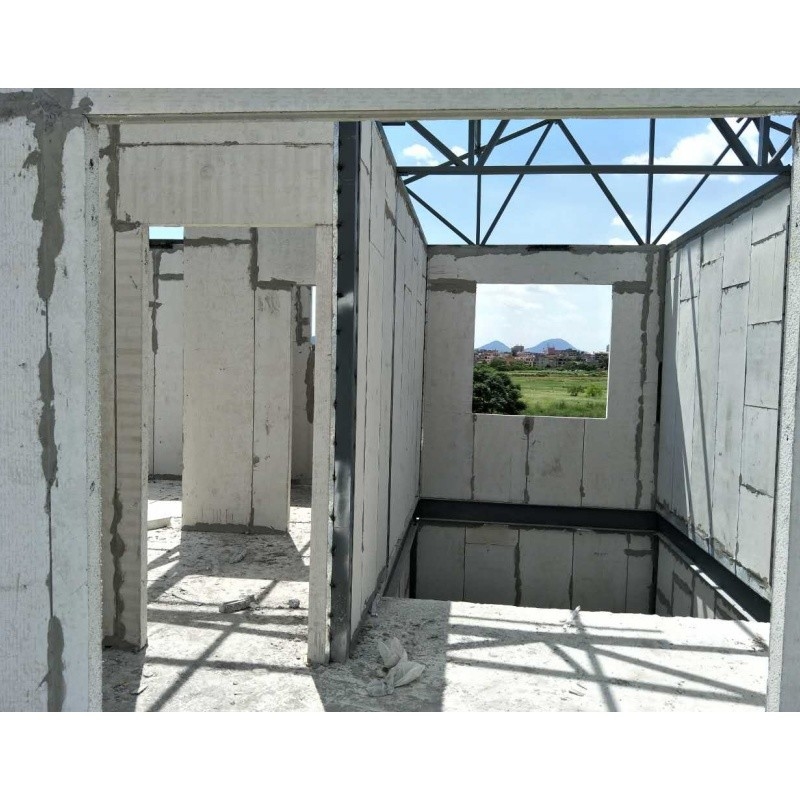

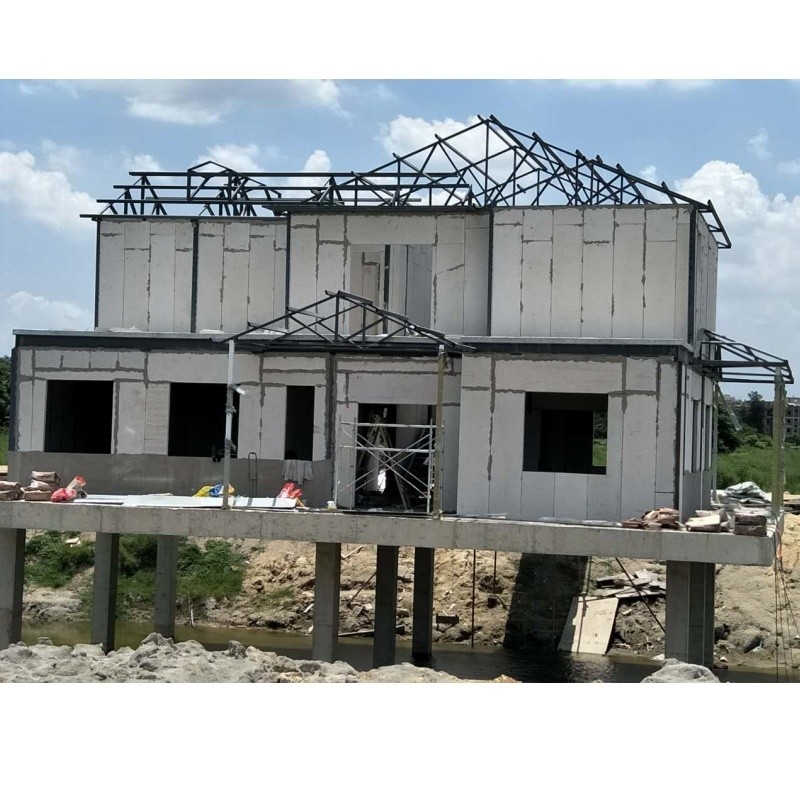

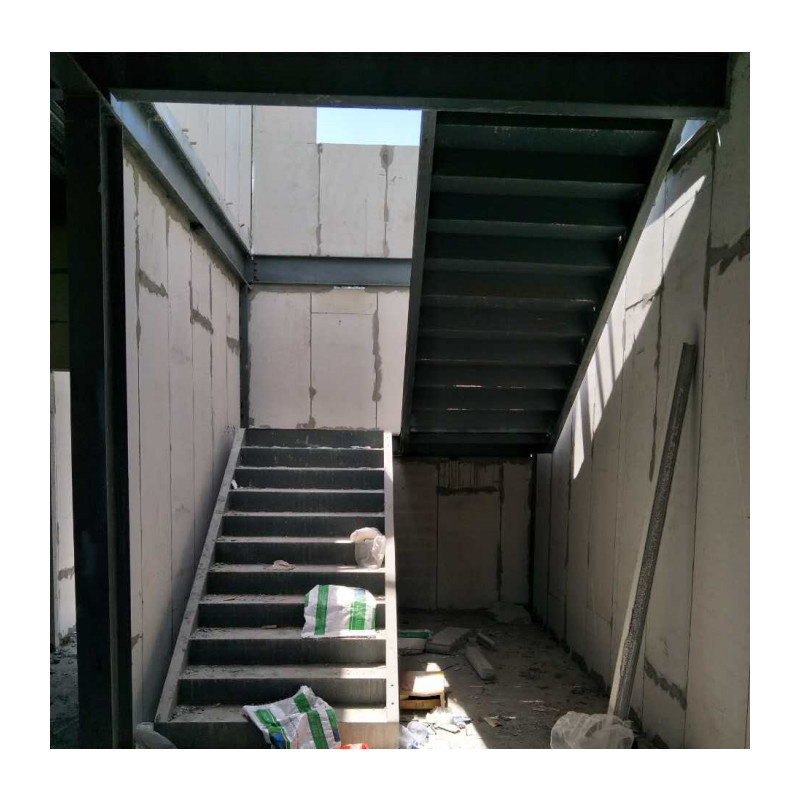

Installation disply

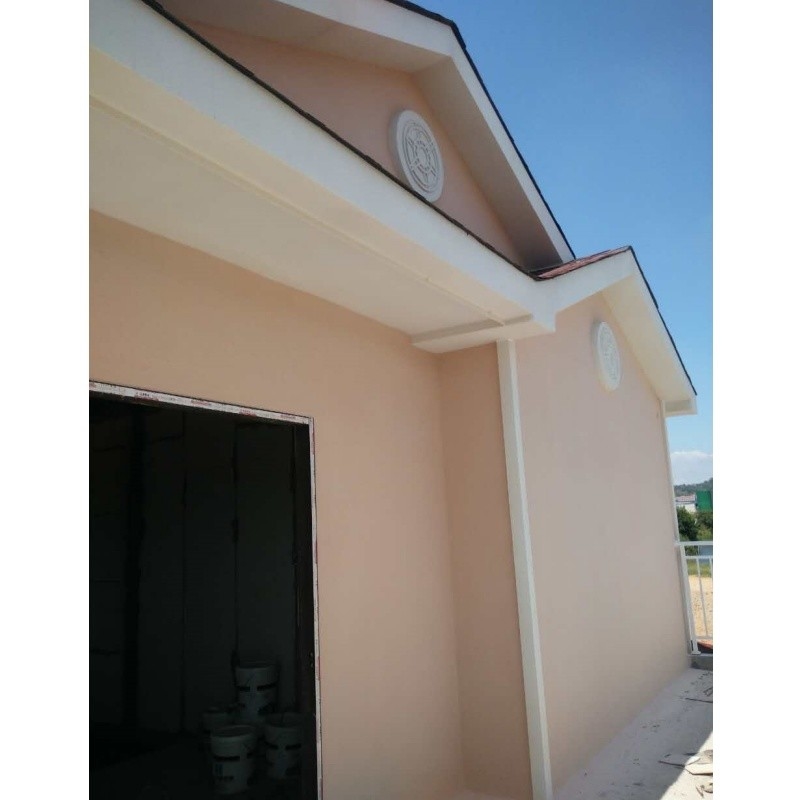

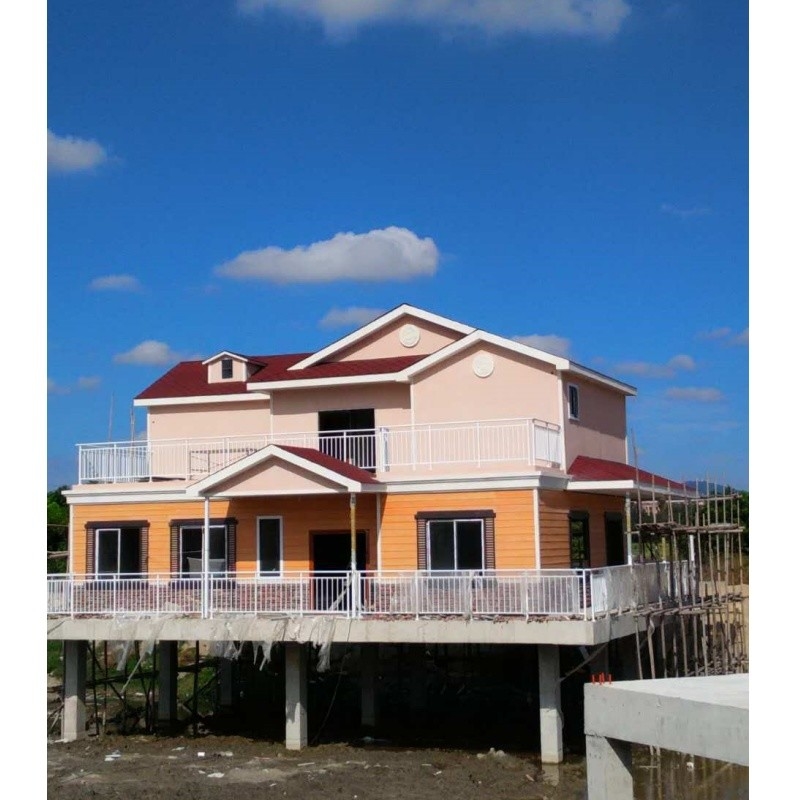

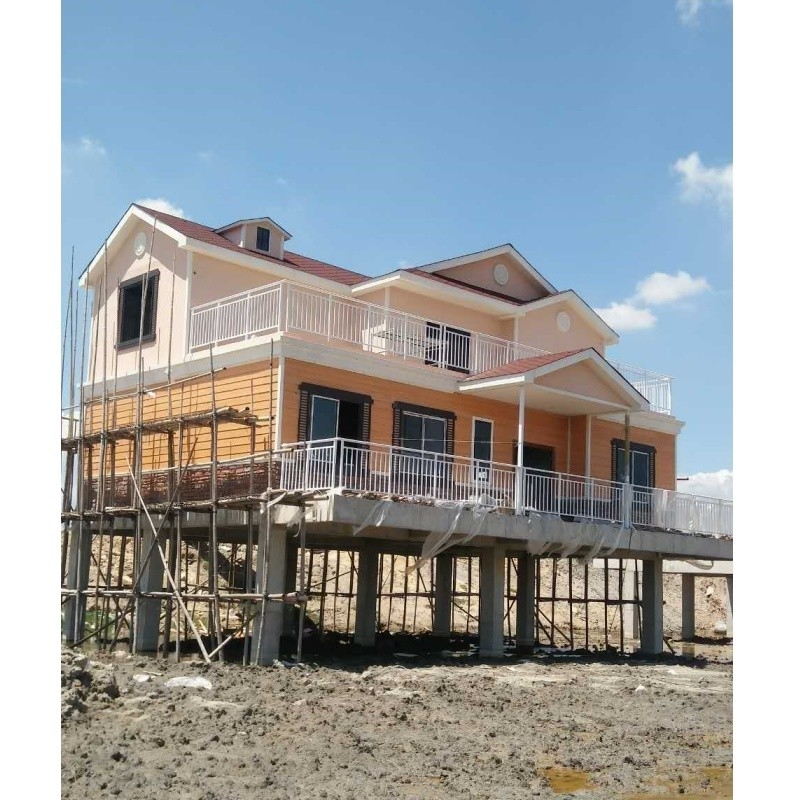

Steel structure residential villa house real picture
Applications
1) Residence
2) Tourist and holiday house
3) Family house
4) Government residential project
5) Real estate development project
6) Constructions for other purpose
Product Characteristics
1.Low maintenance costs
2.Environmentally friendly, recycling.
3.Flexibility when fixing doors, windows and interior partitions
4.Steel structure construction is strong, durability and stability.
5.steel components is resistant to termites and other destructive insects.
6.Long service life for more than 50 years
7.Fast construction ,easy installation and convenient to transport.
Factory show
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
We focus on producing custom-made economic and environmentally friendly prefab house. With the specialized techonology, professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.
We'd love to give fully support for your further inquiry!
