About light steel structure warehouse
The steel structure warehouse combines this feature. The warehouse with a steel structure has a large span and a larger utilization area. Steel structure buildings are light in weight and lighter than other types of buildings with the same strength. ... And also, the warehouse building needs are more urgent.
Product material parameter
| Anchor bolt |
M20 |
| High strength bolt |
M20, 10.9s |
| Shear nail |
M16 |
| Common bolt |
M20 |
| Brace |
M12 |
| Tie rod |
Ø12 |
| Column(Q345B) |
Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) |
HN340X250X9X14 |
| Roof frame beam(Q345B) |
HN294X200X8X12 |
| Floor main beam(Q345B) |
HN294X200X8X12 |
| Floor secondary beam(Q345B) |
HN244X175X7X11 |
| Staircases(Q235B) |
H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) |
H300X200X6X8 |
| Roof purlin |
C140X60X20X3.0 |
| Connecting plate |
3~8mm |
| Roof tile |
75mm rock wool, color sheet both sides 0.426mm |
| Wall panel |
75mm rock wool, color sheet both sides 0.426mm |
| Floor deck |
1.0mm |
| Steel door |
900*2100 |
| Aluminum windows |
2000*1500 |
| Zinc steel handrails |
Square tube80X40+40+30+20 |
| Trimming |
1.0mm galvanized sheet, color steel sheet
|
Features
- Avoids the need for a masonry shaft
- Loads transmitted to the lift pit floor
- Variety of cladding options from steel panels to glass feature panels
- Reduced installation times
- Simplifies building program
Drawings & Quotation?
Could you tell me your requirement for your steel structure project?
Basic design requirements and design Load,
1. Project site location;
2. Overall dimension (length*width*eave height in meters);
3. Mezzanine or not? How many kgs of load per square meter on mezzanine?;
4. Single-layer steel sheet wall or sandwich panel wall;
5. Snow load if applicable;
6. Wind speed/load;
7. Interior column allowed or not;
8. Overhead crane needed or not, capacity?;
9. Any other particular requirements?
A steel structure building can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!

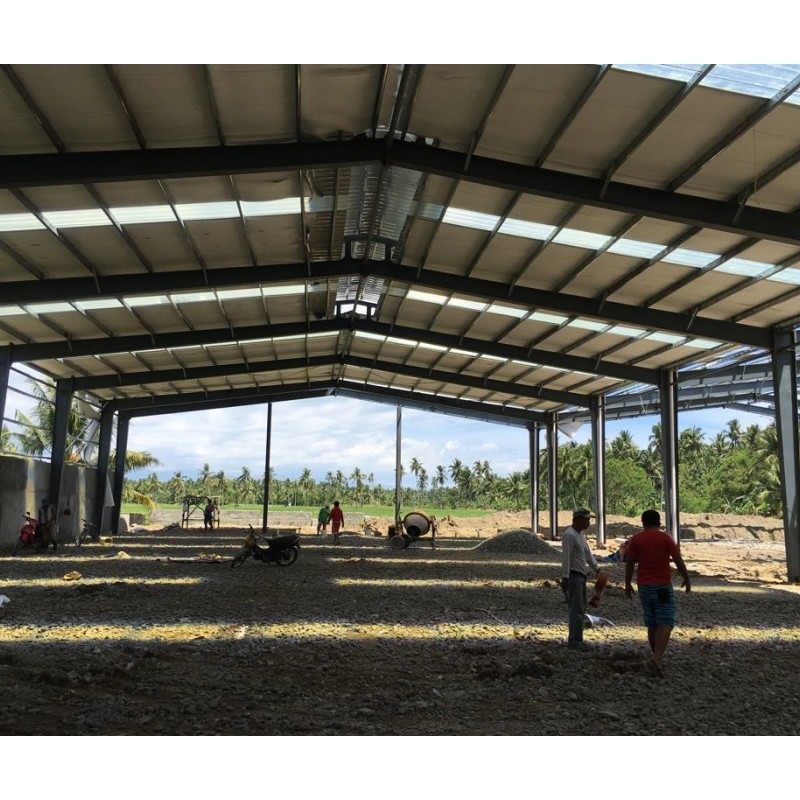

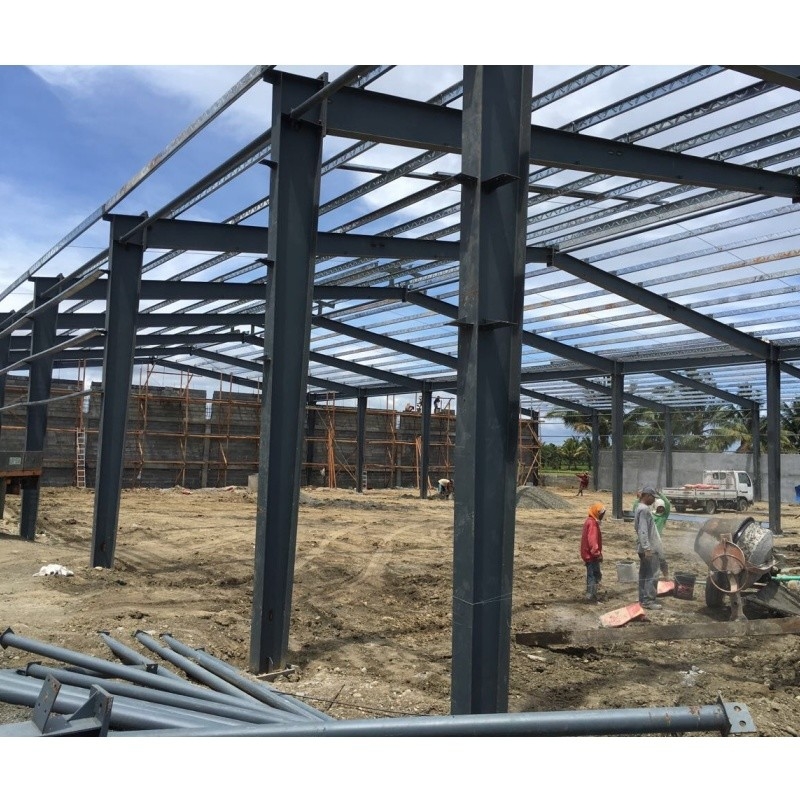

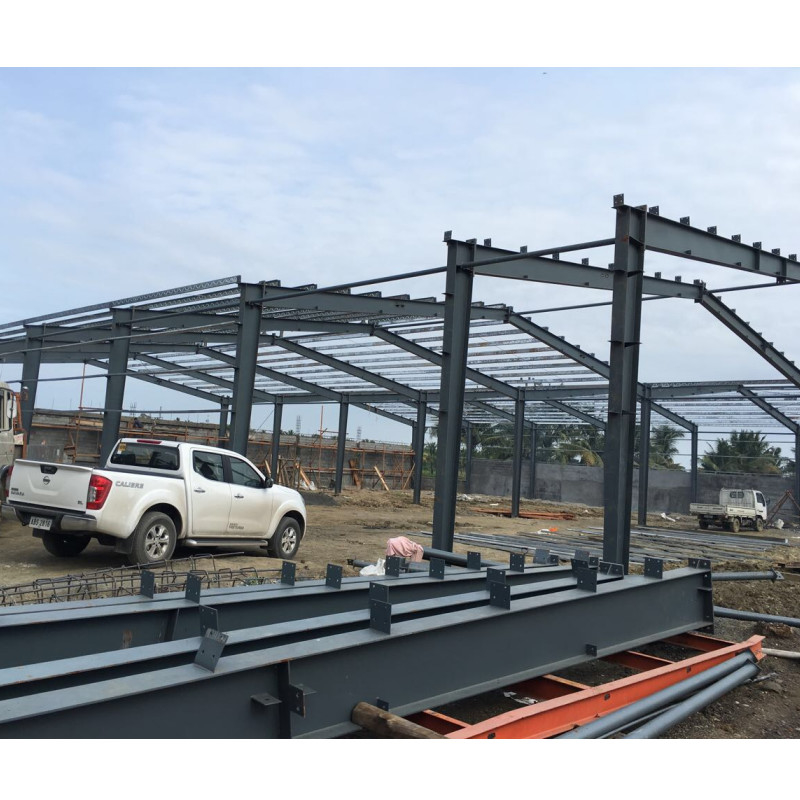

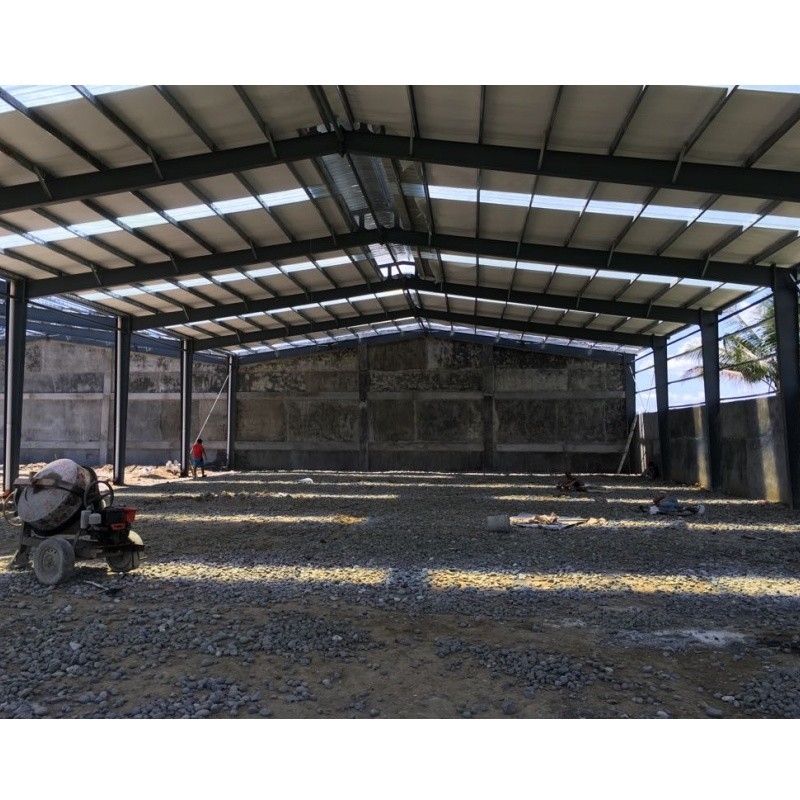

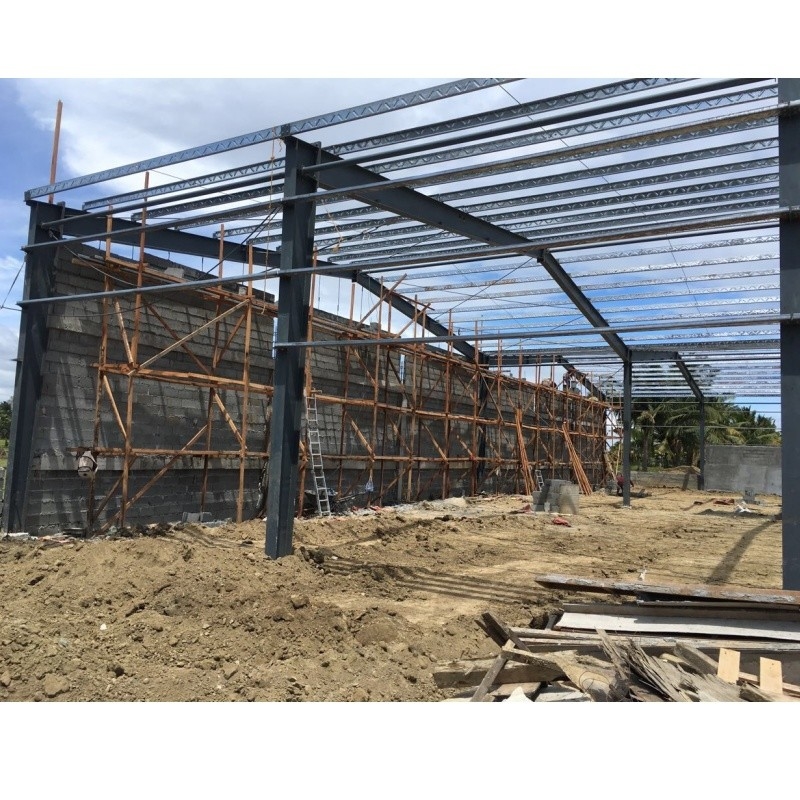

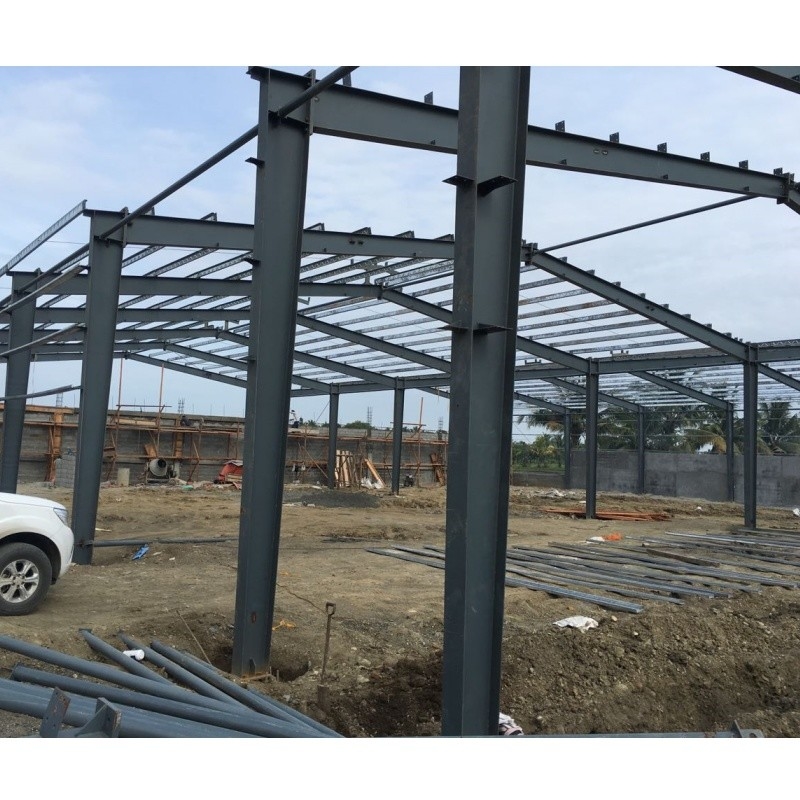

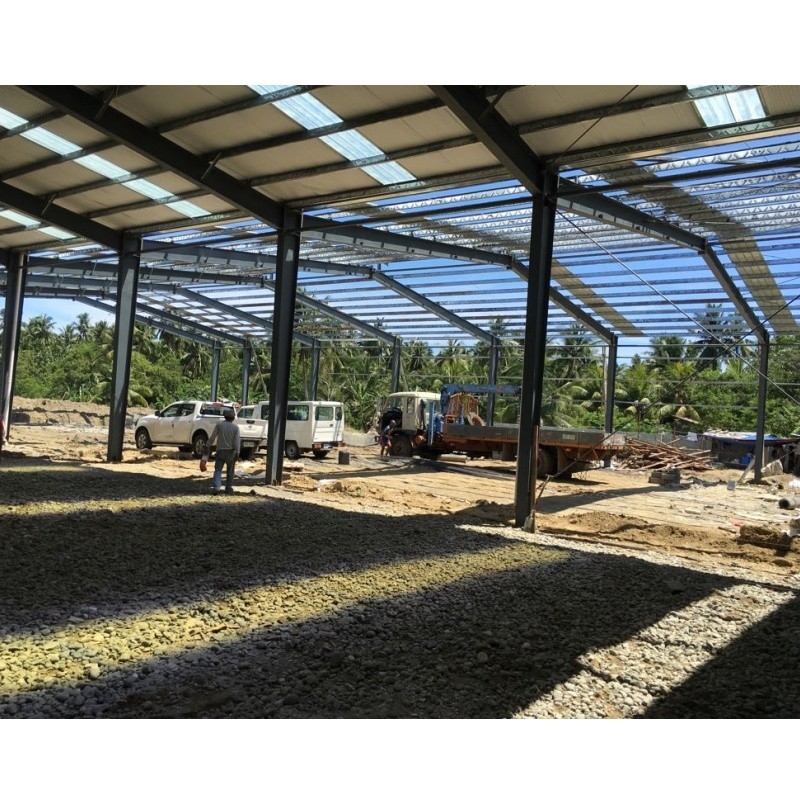

Production pictures of steel warehouse
What's the Standard Packing?
1. Packing the pipes into the bundles by the steel strip
2. packing the welded steel structure parts by some fabric
3. packing the small parts by bags and EPS foam
4. packing sets parts by some box
5. Load into 40ft HQ,20ft GP or 40OT
Why choose TPA Housing?
TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab house Co. Ltd. It was founded in 2005. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, light steel villa, fence, sandwich panel, and profiled steel with ISO9001 certification.
We focus on producing custom-made economic and environmentally friendly prefab houses. With the Specialized technology, professional design team, and high-quality construction team we have undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients. Our capacity is about 30000 to 50000 square meters per month.
Loading pictures pf metal warehouse for reference
The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
Steel Structure Warehouse materials and accessories
