Place of Origin:
Foshan,Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-ST050
Galvanized Anti-Rust Metal Manufacturing Factory Steel Structure
Product Description
Product type: steel workshop buildings
The light steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.
The structure is connected by bolts and the walls are fixed with rivets. The steel structure parts and panels are light and easy to pack and transport. The biggest advantage is highest possible quality, cause steel frame buildings but made in a factory ready to assemble at your lot.
Steel building characteristics
- Light-weightness and more resistance to earthquakes and strong winds
- Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel
- Shorter construction period with the help of modularity and error-free prefabrication of building elements
- Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory
- Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space
Steel workshop buildings materials component :
| Main Steel Frame | H section steel | Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface processing | Alkyd paint or galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Belt bar | Φ89*3, Steel Q235, processed and painted | |
| Small brace | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Outer-roof panel | Sandwich panel or corrugated steel plate | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Gutter | Made from 0.8mm thick sheet steel | |
| Rainspout | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Ventilation equipment | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |
Why choose us
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication

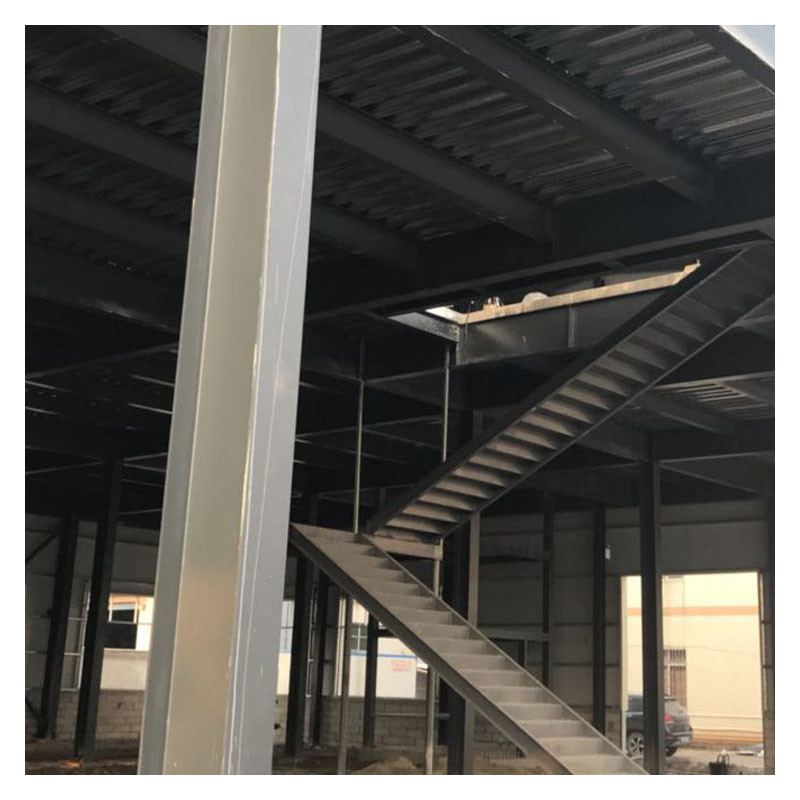

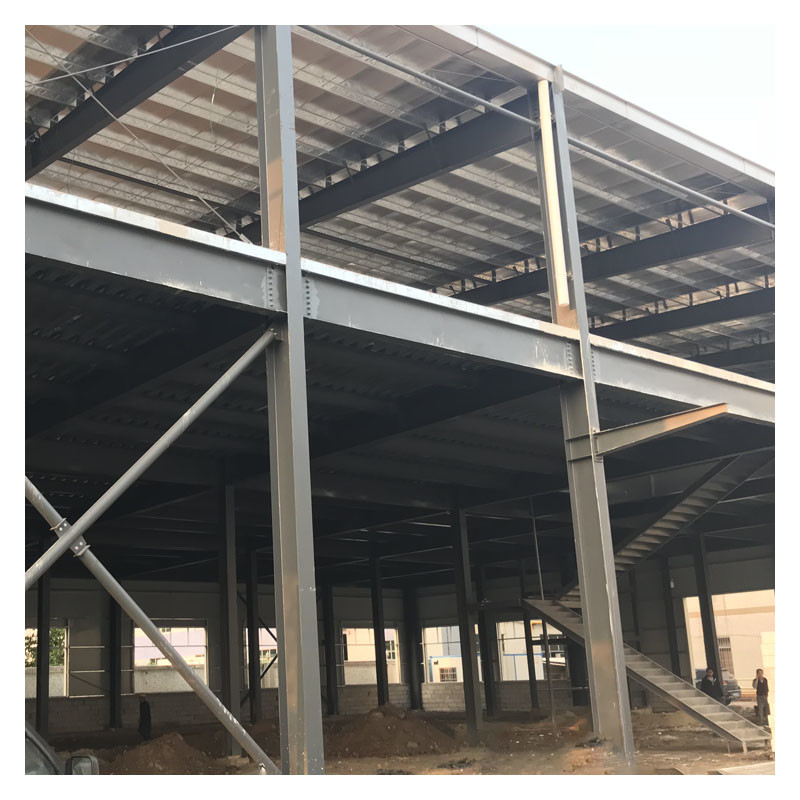

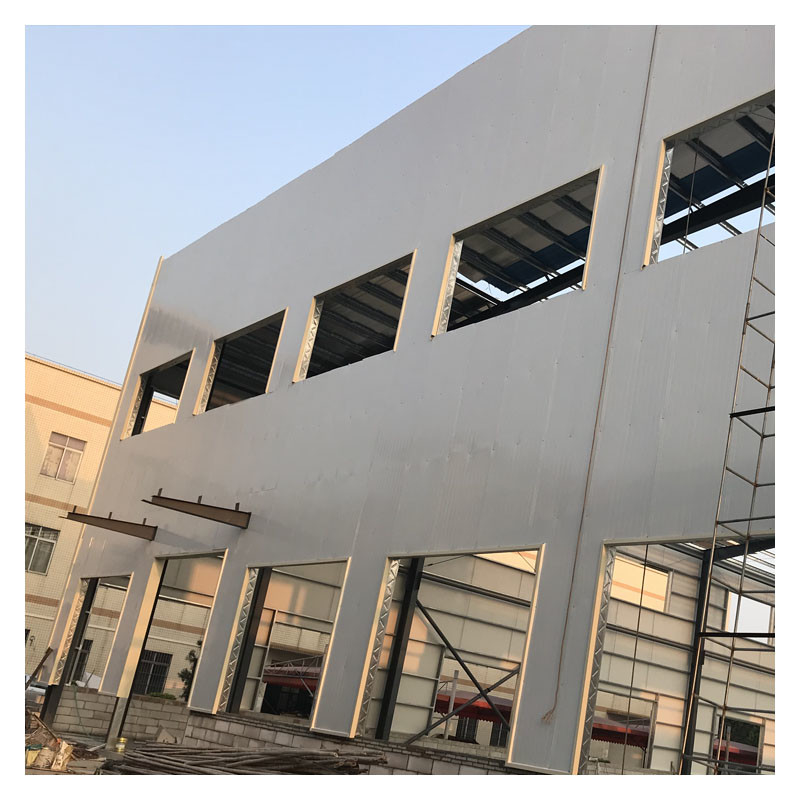

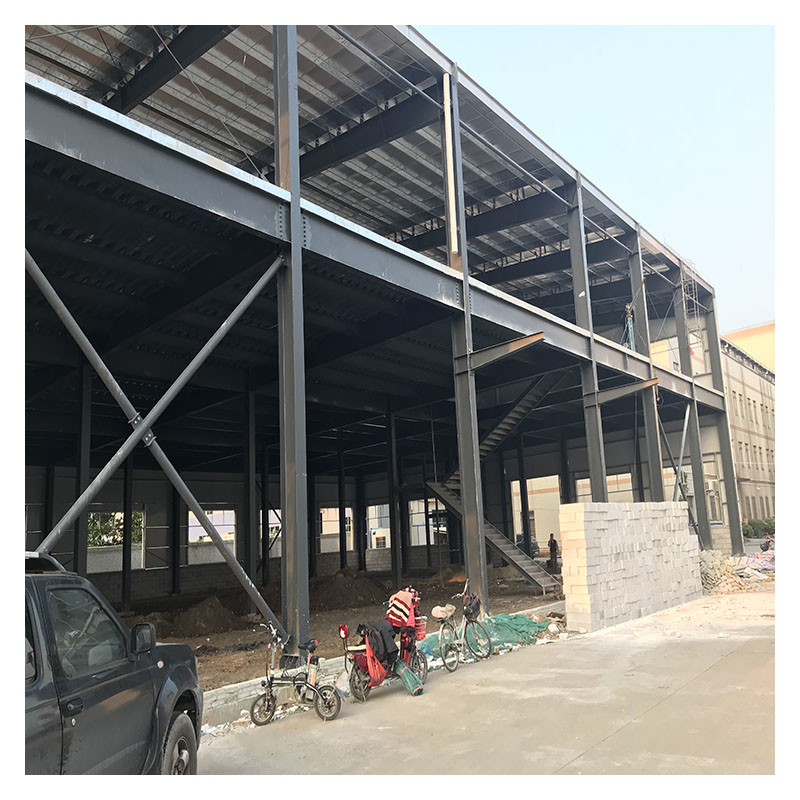

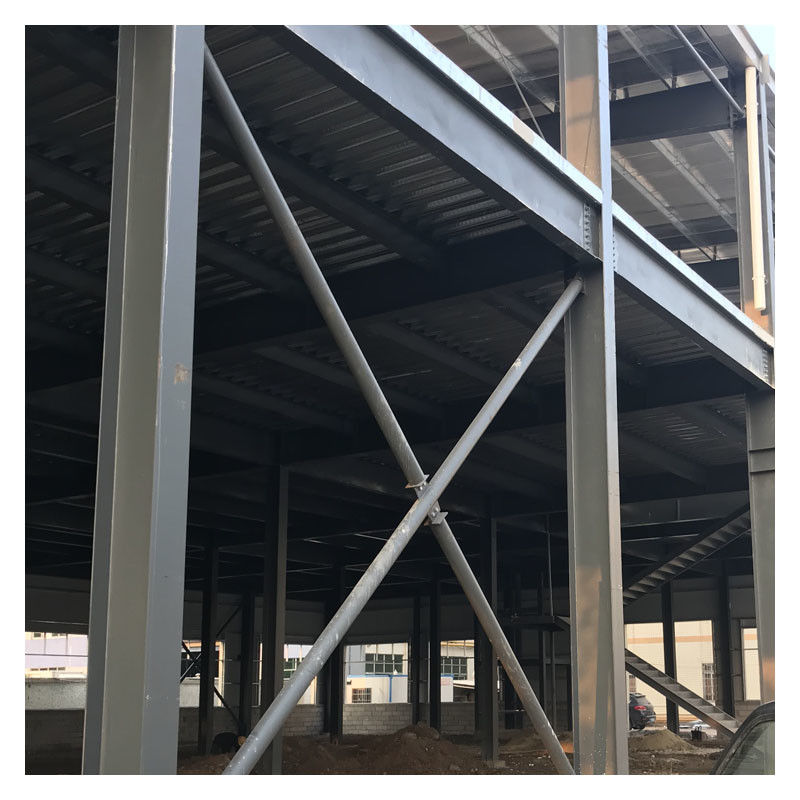

Steel fabrication project display
Steel Buildings for Sale at the Best Prices,just choosing the Right Building for You~
We'd love to give fully support for your further inquiry!
