Durable Fabrication Metal Frame Steel Structure Factory On Sale
Product type: light steel structure building
Product Description
The steel structure building's overall stress intensity is high, can satisfy the requirement of building structural design specification, is currently the best performance of a building. It has the advantage of lightweight, a large span, fewer materials, low costs, save foundations, a short construction period, safety, reliability, and attractive appearance.
Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts, or rivets to connect.
The usage scale includes large-scale workshops, warehouses, supermarkets, entertainment centers, and a modular steel structure garage.
Materials component
| Embedded parts | M24/M27/M30 |
| High strength bolt / Common bolt /Turnbuckle /Galvanized bolt | M20 |
| Steel column(Q235B) | HN(200~500)*200*9*14 |
| Wind column(Q235B) | HN(198~400)*200*7*11 |
| Roof truss beam(Q235B) | HN(900-450)*200*8*12 |
| Tie rod | ∅89/114*3.0 steel bar |
| Horizontal bracing | ∅20/22/25 steel bar |
| Column bracing | ∅20/22/25 steel bar |
| Roof purlin (galvanized) | C160/180/220*2.0 |
| Wall purlin (galvanized) | C160/180/220*2.0 |
| Connecting plate | 3mm～12mm steel sheet |
| Roof tile | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Wall panel | 0.276~0.476mm steel sheet / 50~150mm sandwich panel |
| Gutter | PVC/Galvanized steel materials |
| Downpipe | ∅110 PVC materials |
| Electric galvanized rolling gate | W5000*H5000(customized size) |
| Sandwich panel door | W800*H2100(customized size) |
| Window | PVC/Aluminum sliding window W1100*H1200(customized) |
| Trimming | 1.0mm galvanized/ steel sheet |
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process step.
3. Inspection during production.
4. Inspection after completed. Always install several sections to ensure no problems with installation
Steel structure buildings features
* easy to dismantle and assemble (because of connection with bolts)
* high structural stability
* good appearance
* flexible design
* large span and large height
* short delivery time
* good heat insulation effect
* good ventilation effect
* long service life
* environment friendly
Price
We can quote if you can offer the following information:
| Item Name | |
| Size | Length, Width, Roof Height, and Eave Height |
| Column and Beam | Hot rolled or welded H section beam |
| Purlin | C-section and Z-section |
| Roof and Wall | Single-layer corrugated sheet or EP/Rock Wool/PU sandwich panel |
| Door and Window | Rolling up / sliding / side-hung door and window |
| Surface | Painting or Hot-dipped galvanized |
| Local Climate | 1.Wind speed 2.Snow load 3.Earthquake grade if have |

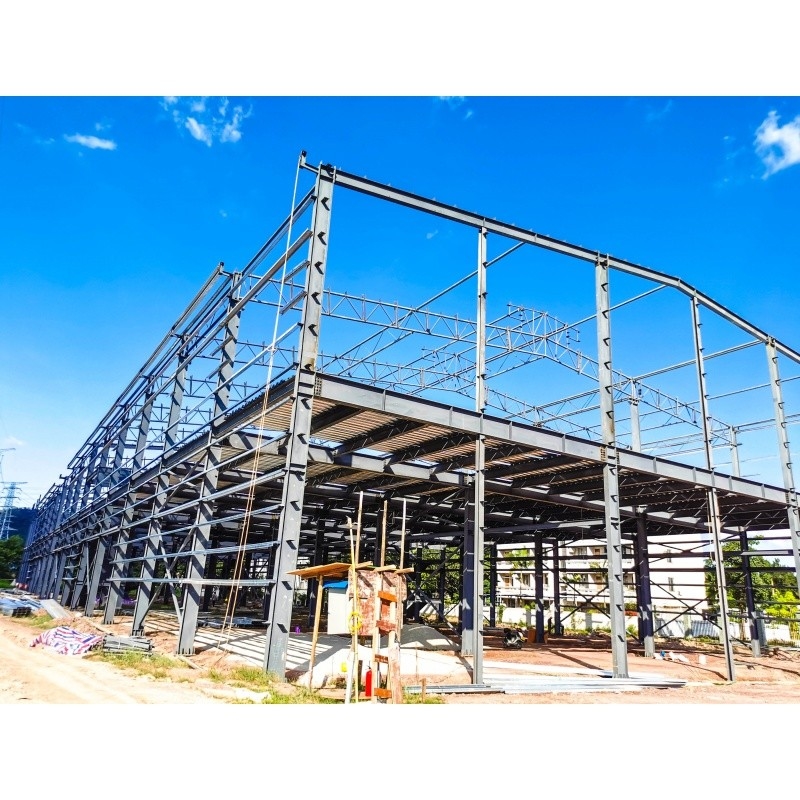

Steel factory building project 3D display

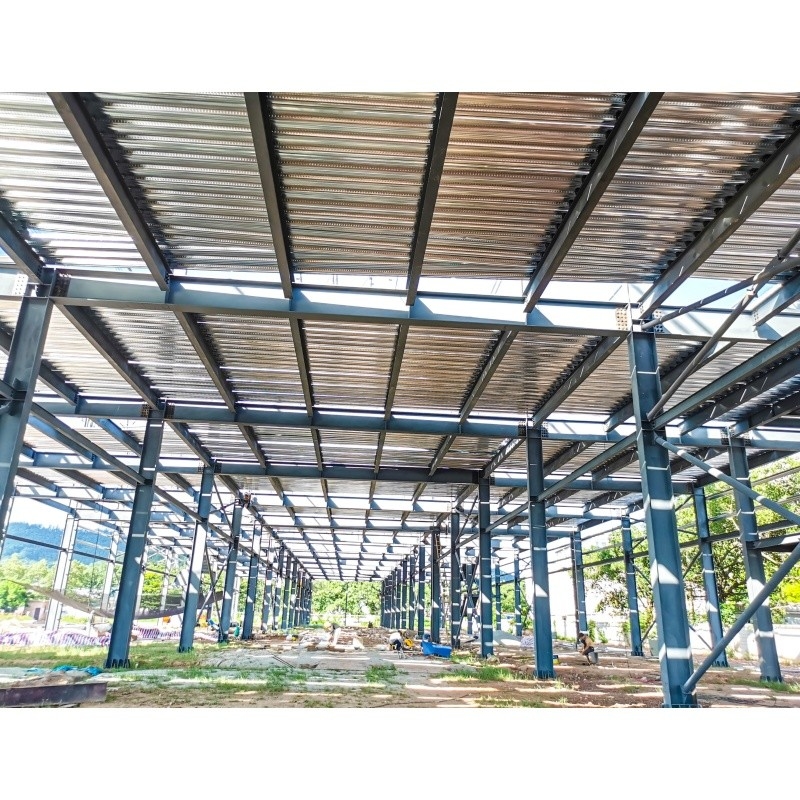

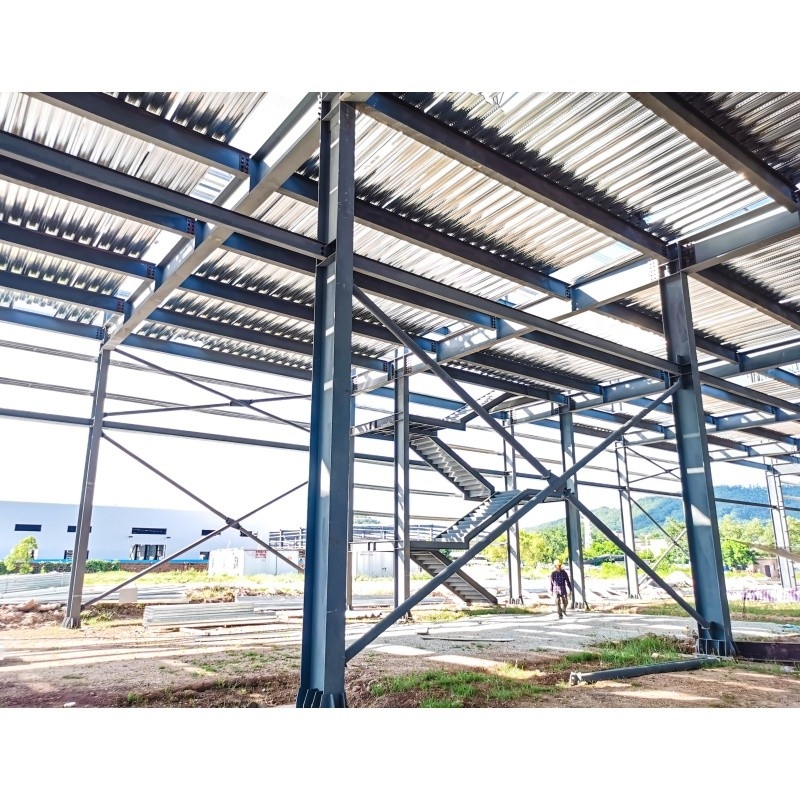

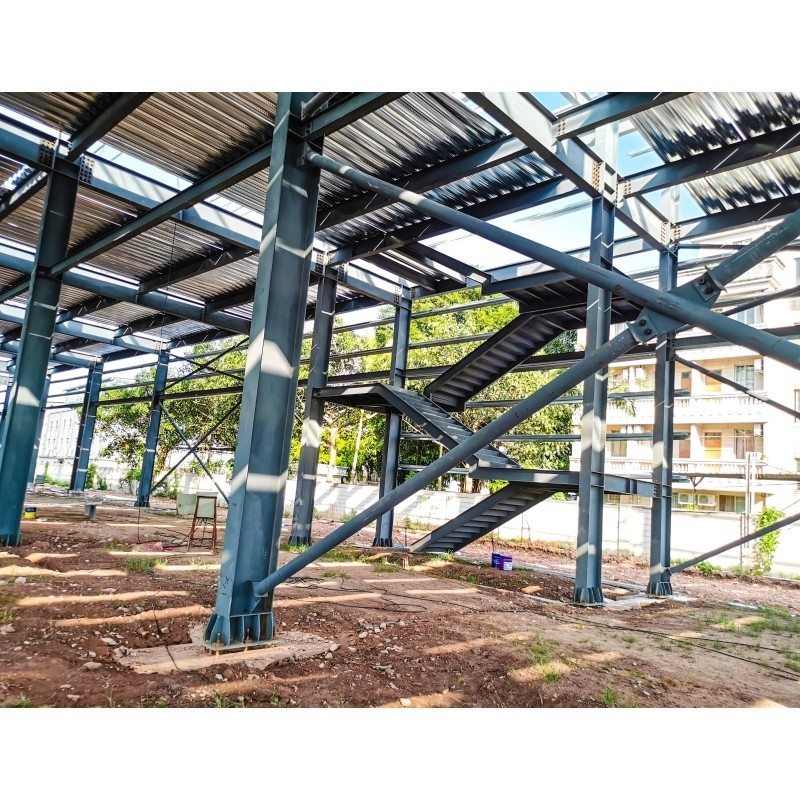

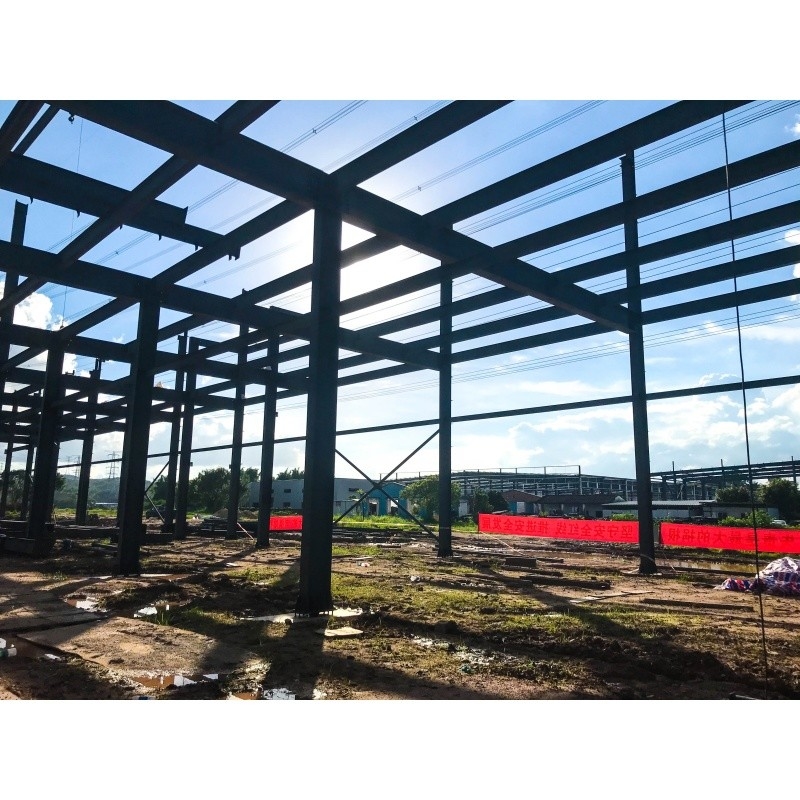

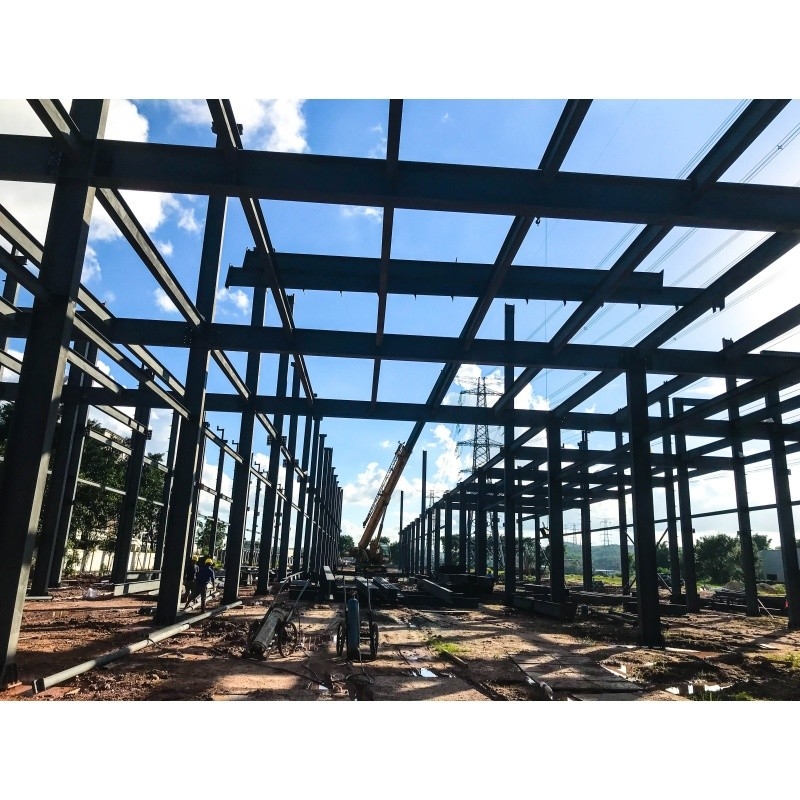

More Light steel structure buildings pictures display
About us
Foshan TianPuAn Building Materials Technology Co., Ltd.(TPA housing), was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with a total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Project Services
Simple or complex, our special project services team quickly and expertly handles your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high-quality metal building systems under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
4. Design Services
