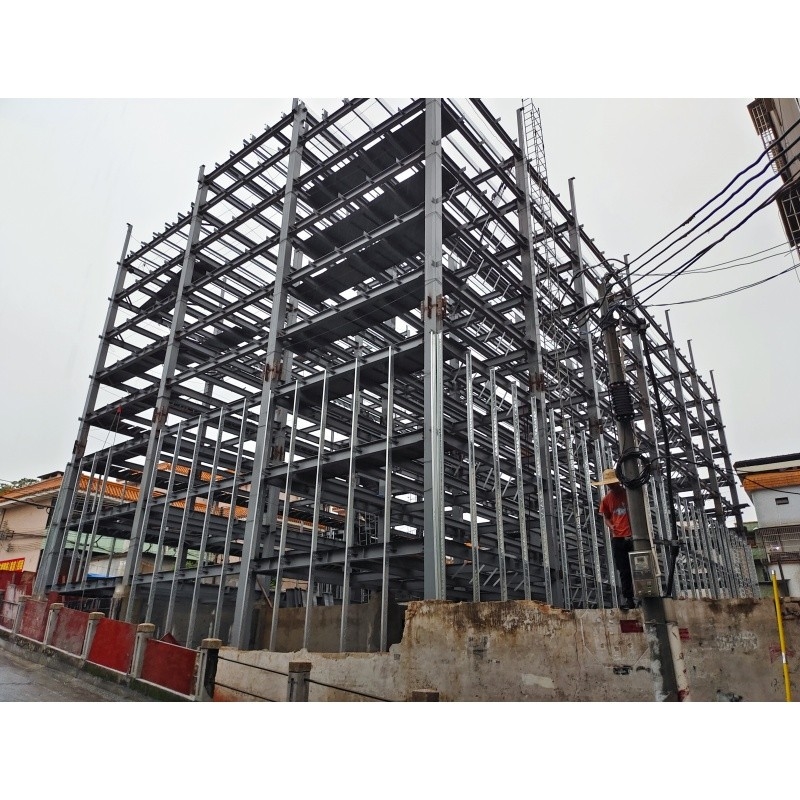

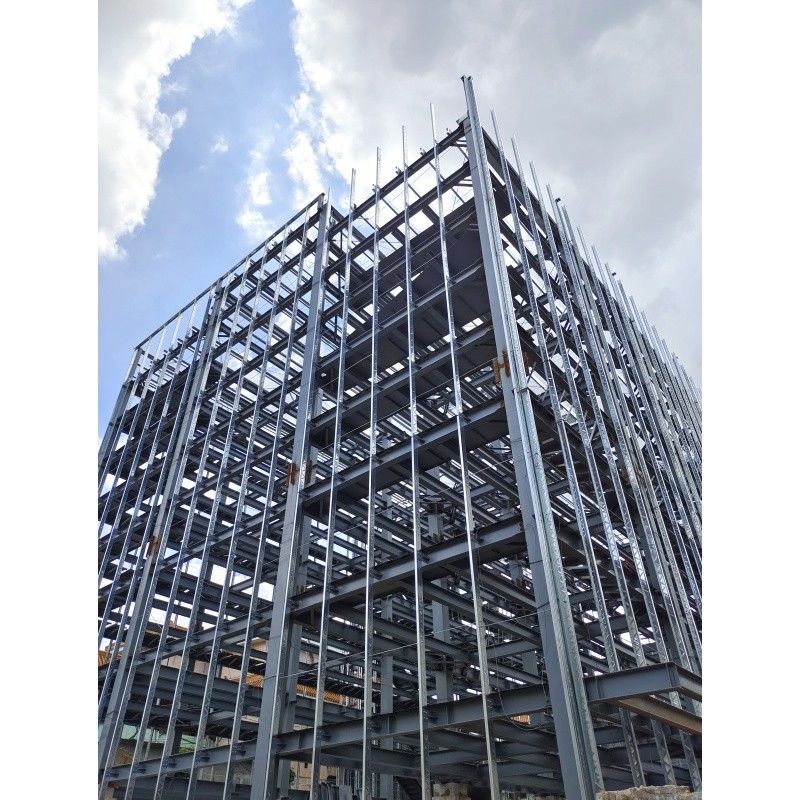

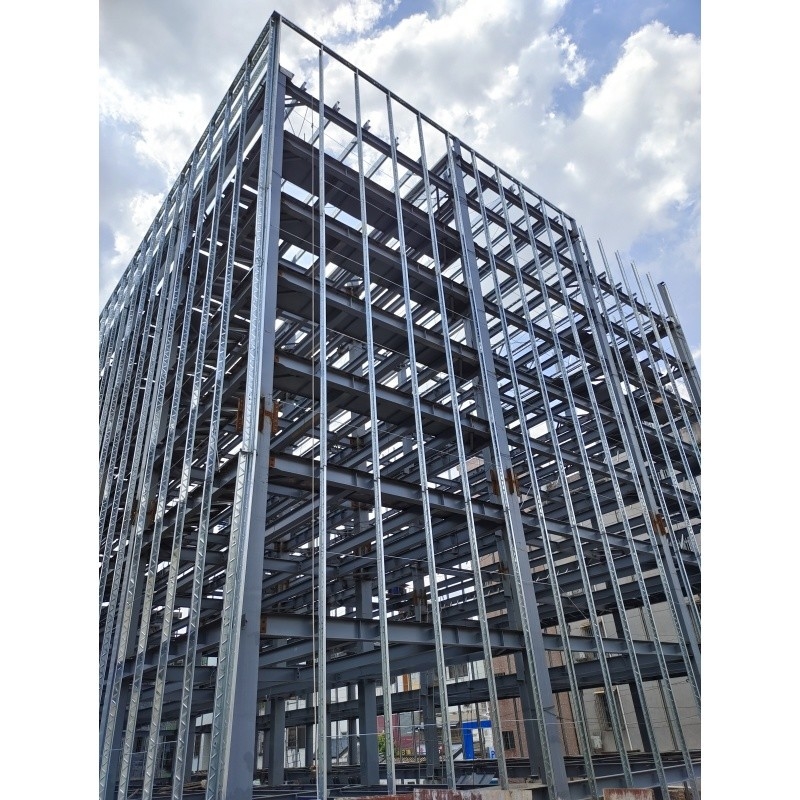

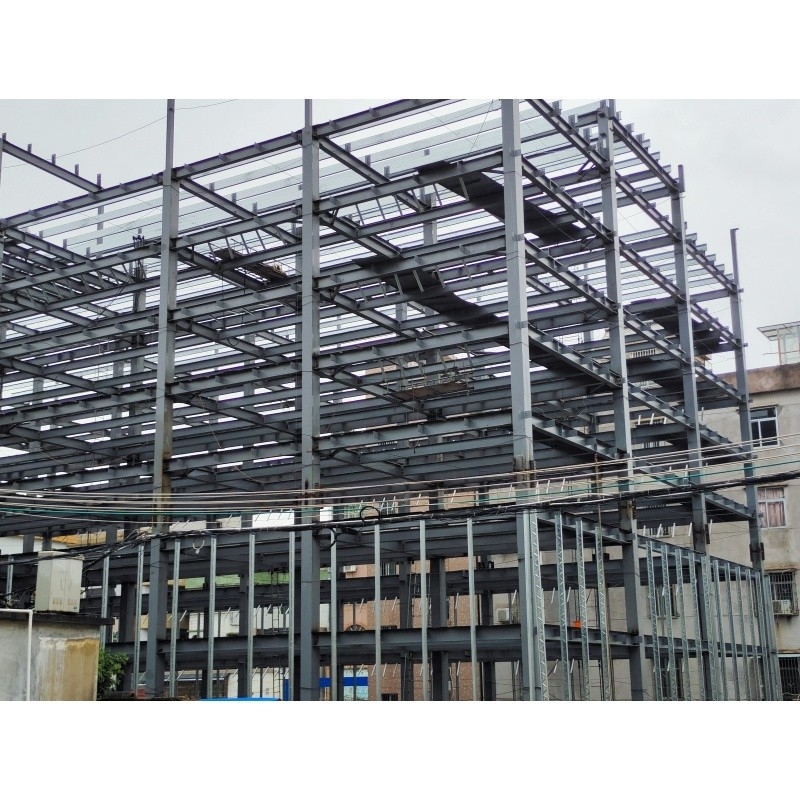

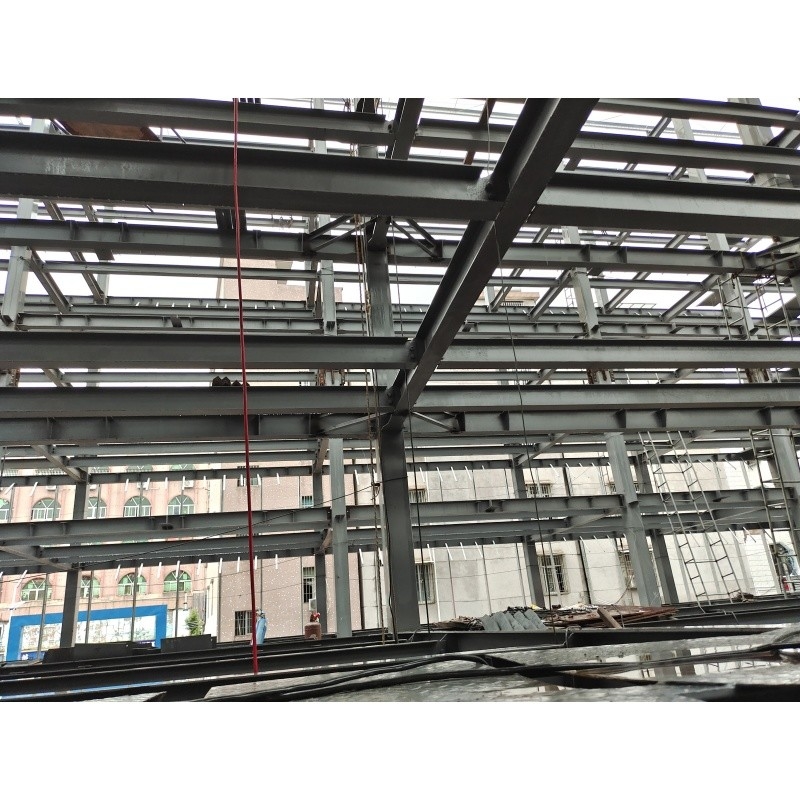

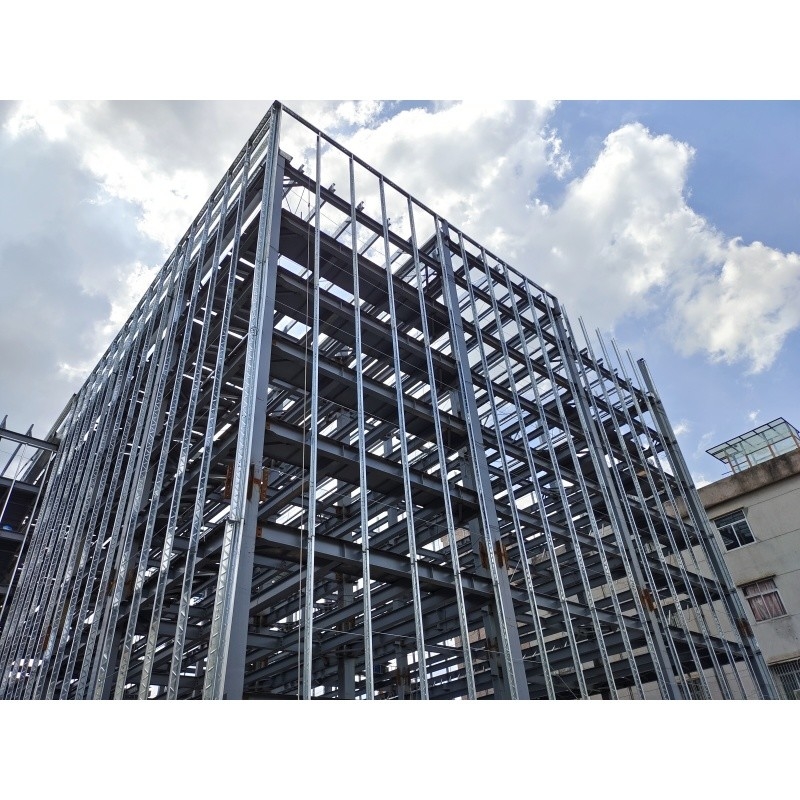

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage

Multi Story Parking Garage

Hard Parking Garage

Earthquake Resistant Parking Garage

Place of Origin:

Guangdong Foshan Lishui, China

Brand Name:

TPA Housing

Certification:

ISO, SGS,BV

Model Number:

TPA-CPS5

Contact Us
Request A Quote
Product Details
Material:
Q235 Q345 Low Carbon Steel
Product Name:
Car Park Shade Structure
Size:
Customized
Life Span:
Steel Frame About 50 Years
Structural Steel Fabrication:
Painting/galvanizing
Payment & Shipping Terms
Minimum Order Quantity
50 square meters
Price
Negotiable
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Hard and earthquake-resistant multi-story steel structure parking garage



Steel structure parking garages are constructed primarily using steel beams, columns, and other steel components that are assembled into a robust framework. This framework supports the multi-level parking decks, which can be designed to accommodate a vast number of vehicles. The use of steel allows for the creation of large, open spaces with minimal internal support structures, maximizing the number of parking spots per square meter.

The exterior cladding of steel structure parking garages can vary, ranging from traditional metal panels to more aesthetically pleasing materials such as glass or aluminum. This flexibility in design allows for the integration of the parking garage into the surrounding urban landscape, enhancing the overall visual appeal of the area.


1. What is steel structure?



Steel structure is a metal structure which is made of structural steel* components connect with each other to carry loads and provide full rigidity. Because of the high strength grade of steel, this structure is reliable and requires less raw materials than other types of structure like concrete structure and timber structure.

In modern construction, steel structure is used for almost every type of structure including heavy industrial buildings, multi-storey buildings, equipment support systems, infrastructure, bridges, towers, airport terminals, etc.


2. Why choose steel parking structures?



*Long Spans
Space availability for parking structures is often restricted, confined, and misshaped, but the design opportunity in steel is to optimize space usage through long open spans. Although long spans - typically 55 to 65 feet - may increase weight, the cost (due to fabrication and erection efficiencies) can be reduced by as much as 10 percent over conventional methods. Advantages of long spans include:

  • Column-free areas that simplify maintenance and improve illumination.
  • Less opportunity for damage to automobiles.
  • More openness and improved effect (safety/comfort) for patrons.
  • Greater flexibility to re-stripe stalls.
  • Fewer spaces lost to careless parkers in three-car bays.

*Adaptability
Restrictions of space and accessibility of irregularly shaped or small sites, as well as limited foundation depths, can be addressed by incorporating lightweight steel frames in parking structures.



*Ease of Maintenance
Today’s modern protective coatings and/or high-performance paint systems protect steel-framed parking structures for 30 to 50 years, with merely minimal touch-ups. The open and readily accessible steel frame - a “standard” - simplifies surface inspection and maintenance.





3. Basic Design Requirements: design Load: (very important)

1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:

4. A steel structure building can also be used for:

1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!




5. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.



6. Material list component



Embedded parts M30
High strength bolt M20, 10.9s M16,8.8S
Main beam(Q345B) HN800X300X14X22
Secondary beam(Q235B) HN200X100X4.5X7, [8 steel channel
Connecting plate 3~12mm
Floor deck 1.0mm
Fence 1.2m high zinc steel guardrail
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5


7.Loading pictures reference

Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage 0


8. Steel Structure Building materials and accessories

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage 1
Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage 2





Factory show


Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.



We focus on producing custom-made economic and environmentally friendly prefab house. With the specialized techonology, professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage 3

Hard And Earthquake-resistant Multi-story Steel Structure Parking Garage 4
