Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SD050
Product description

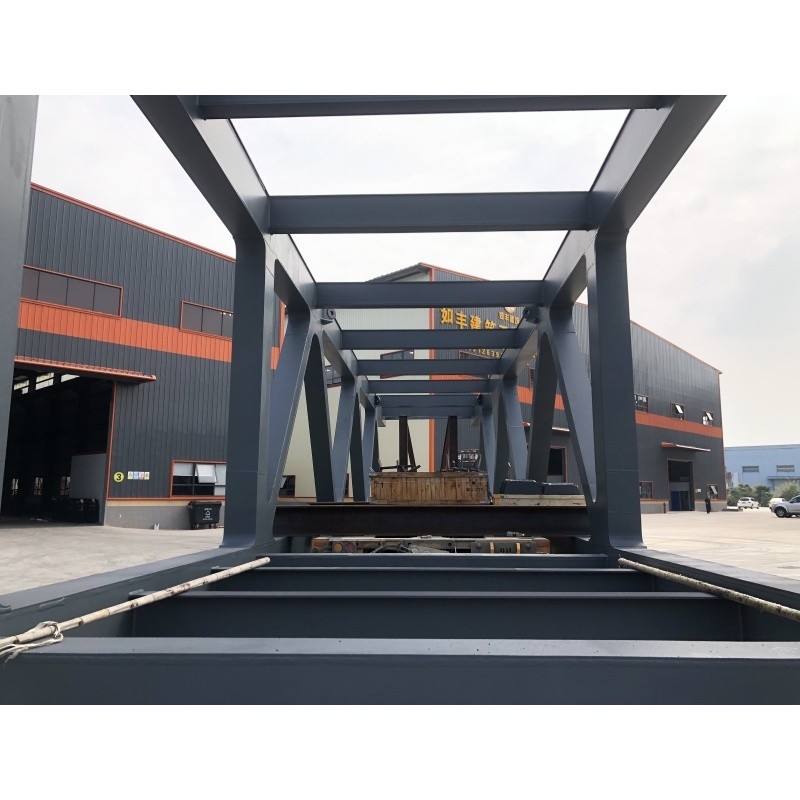

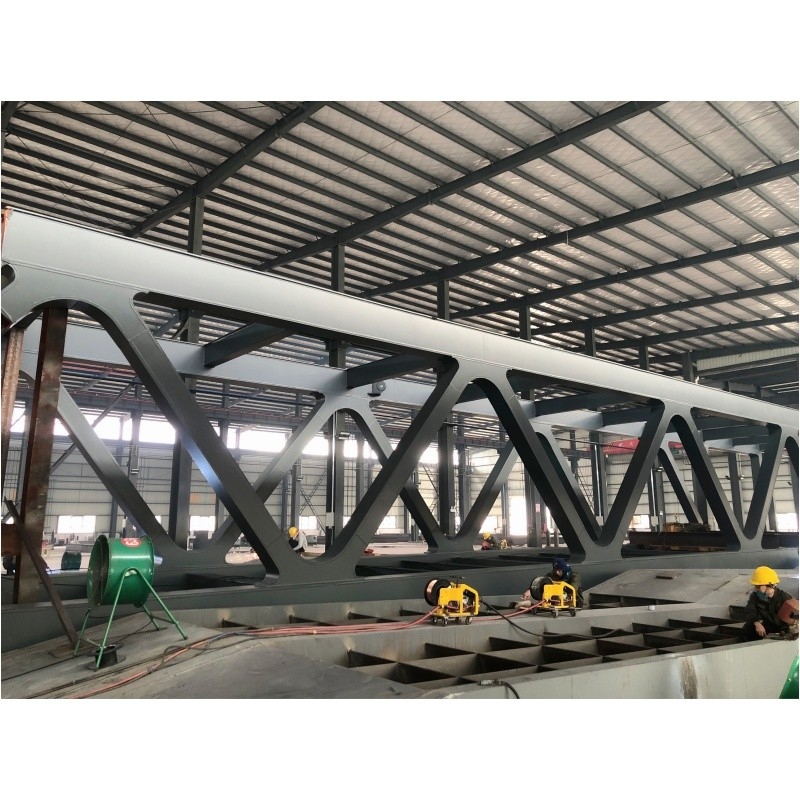

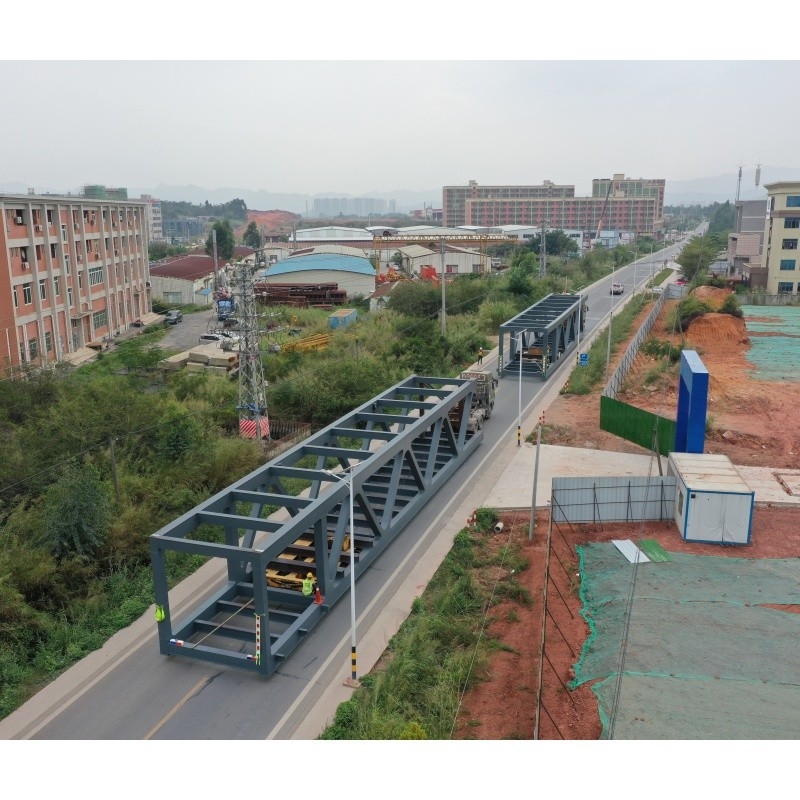

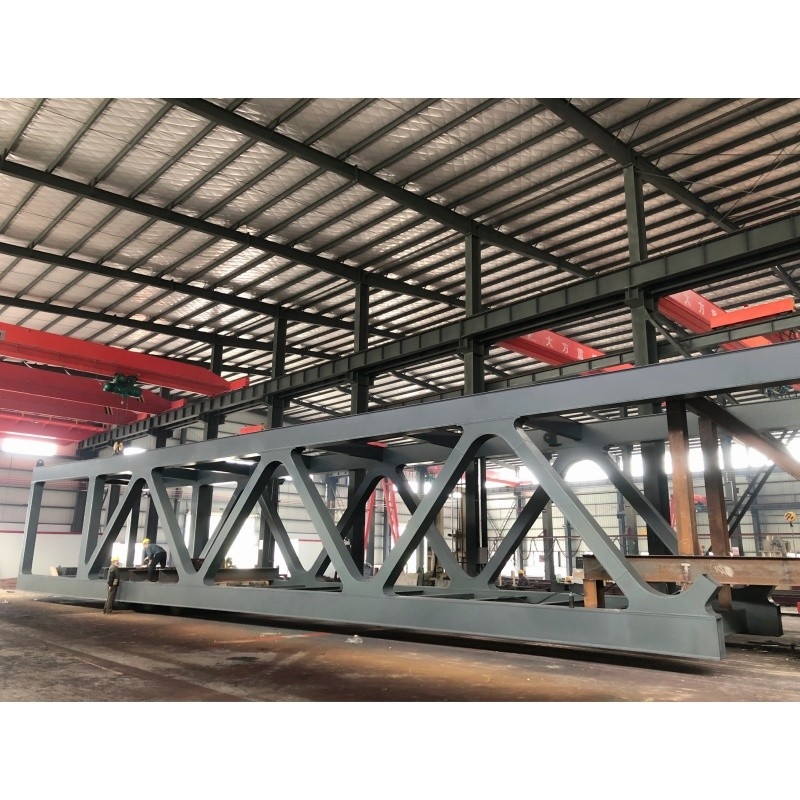

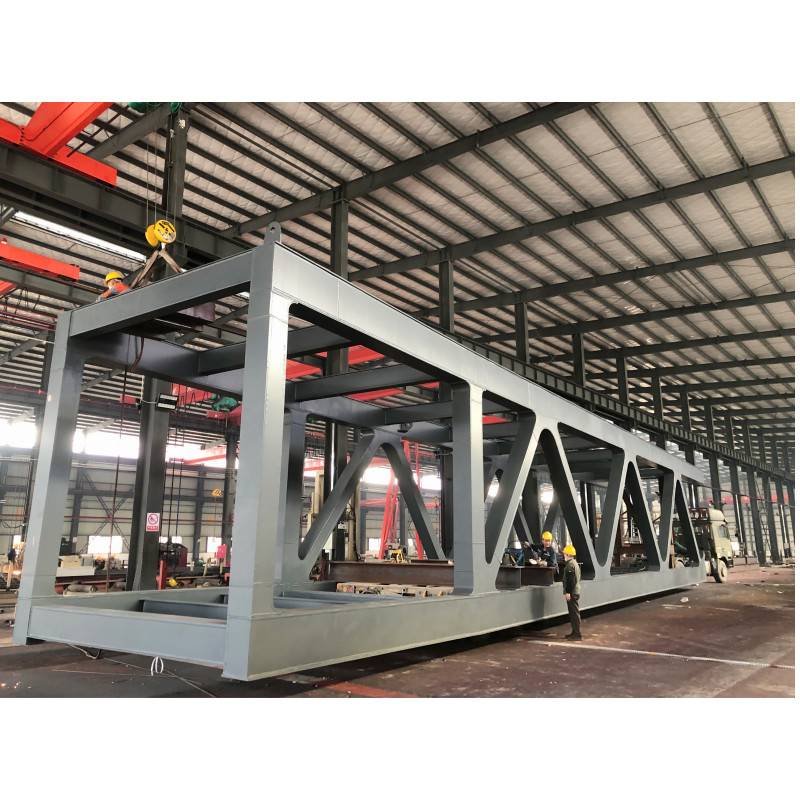

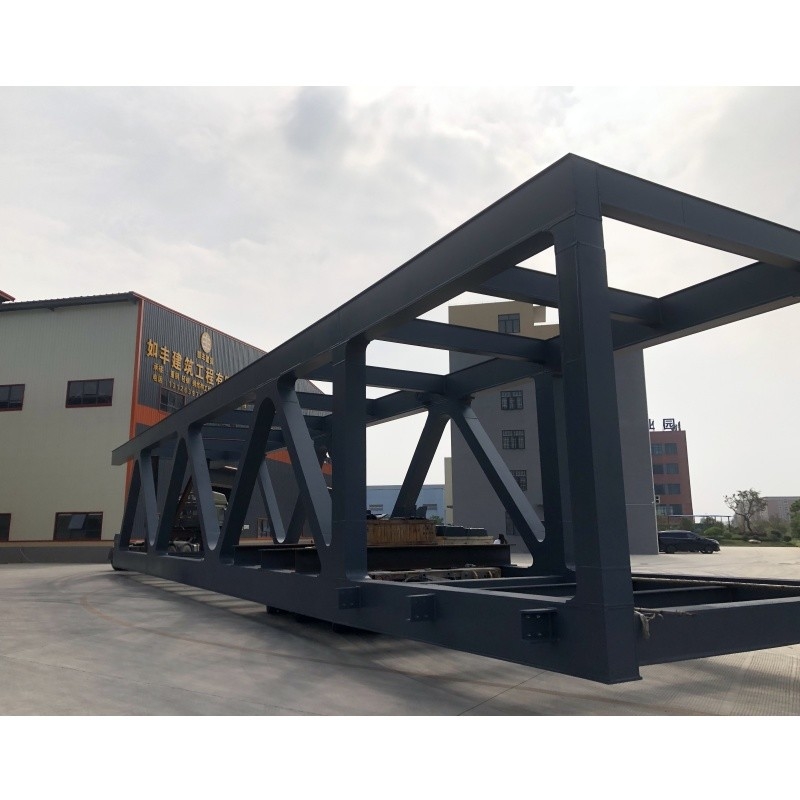

A steel structure pedestrian walkway, also commonly referred to as a steel footbridge or steel walkway, is a structural element designed specifically for facilitating the safe passage of pedestrians across various obstacles or distances. Constructed primarily using steel components, these walkways offer a durable, versatile, and often visually appealing solution for connecting different areas in urban, suburban, or industrial environments.
Here is a detailed description of a steel structure pedestrian walkway in English:
Steel Structure Pedestrian Walkway Description:
A steel structure pedestrian walkway typically consists of a series of interconnected steel beams, girders, and columns that form a sturdy framework supporting a deck or walking surface. The choice of steel as the primary material ensures high strength-to-weight ratio, allowing for long spans without excessive support structures, making it ideal for crossings over rivers, highways, railways, or simply connecting buildings in crowded urban areas.
* Strong and Lightweight
* Durable
* Non-combustible
* Versatility
* Better for the Environment
* Sustainable Building Material
Key Components:
Steel Beams and Girders: These horizontal members span between supports, carrying the load of the deck and pedestrians. They are designed to resist bending and shearing forces, ensuring structural integrity.
Columns and Supports: Vertical members that provide stability and transfer loads from the beams to the foundation. They can be either fixed to the ground or attached to existing structures such as buildings or bridges.
Decking System: The walking surface, typically made of steel grating, composite materials, or concrete slabs supported by the steel framework. It provides a safe and comfortable surface for pedestrians.
Guardrails and Handrails: Safety features installed along the edges to prevent accidental falls. They are typically made of steel tubing or profiles and may be designed to incorporate lighting or signage.
Connections: Welded or bolted joints that securely connect the various components of the walkway, ensuring the structural integrity and stability of the entire system.
Platform material list
| Embedded parts | Expansion bolt | M16×140 |
| High strength bolt | M16×50 | |
| Galvanized bolt | M12×35 | |
| Main steel parts | Column(Q235B) | HN200X100X5.5X8 |
| Main beam(Q235B) | HN200X100X5.5X8 | |
| Secondary beam | C140X50X20X2.5 | |
| Bracing | Ø16 steel bar,80X3.0 square tube | |
| Staircase | C160X2.0+2.5mm chequered plate | |
| Handrail | 1.1m(H) | |
| Connection plate(Q235B) |
Why steel ?
1. Steel can be recycled. Rather than paying landfill fees for non-recyclable construction waste, your company will be able to recycle steel and metal building components.
2. Steel is so durable, and requires so little maintenance, it is a more economic choice for building owners.
3. Innovation in steel production, combined with greater competition to meet rising steel demands, has brought steel prices lower than they've been in twenty years.
4. Due to a steel structures' almost unrivaled ability to withstand high winds, heavy snow loads, fire and seismic activities, combined with their resistance to pests and decay, insurance companies often offer lower premiums on policies underwritten for metal buildings.
5. Faster construction times means fewer interest payments to the lender, who typically requires that interest-payments are made through the duration of the construction process.
Design Considerations:
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Our services
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication
Price
We can quote if you can offer the following information:
1) Length (side wall, m)?
2) Width (end wall, m)?
3) Wall Height (eave, m)?
4) Middle Column allowed or not?
5) Project location?
6) Snow load?
7) Wind load?
8) Seismic magnitude?
9) Mezzanine or not? And usage?
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completed. Always install several section to ensure no problems to installation
Loading
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
Call us today to get started with your steel building project !
