Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,BV,SGS
Model Number:
TPA-SD039
Detailed Product Description
| Keyword: | Agricultural, barn, farm building, hay storage | Customization: | Size, Design, and Color |
| Steel work | Painting steel or galvanized steel | Purlin section | C or Z galvanized steel |
| Benefits: | lightweight, easy to assemble, wind resistant | Steel fabrication: | Cutting,Sanding,Painting |
Product Description
Product type: steel barn structures

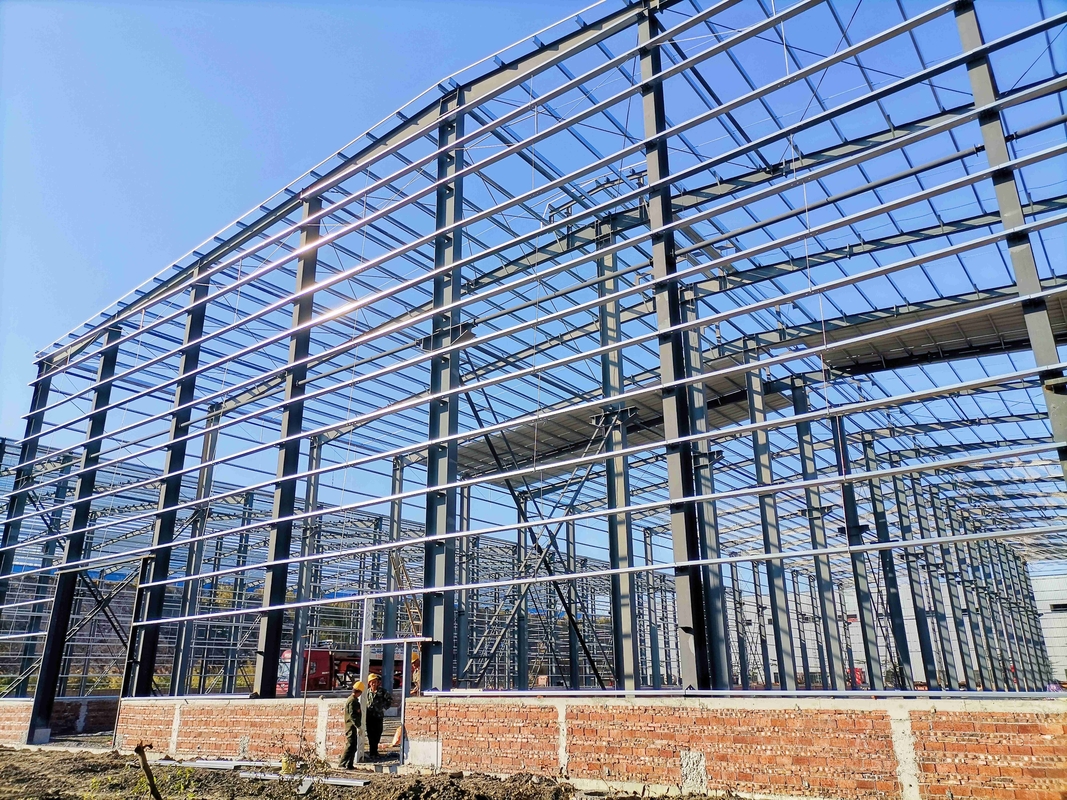

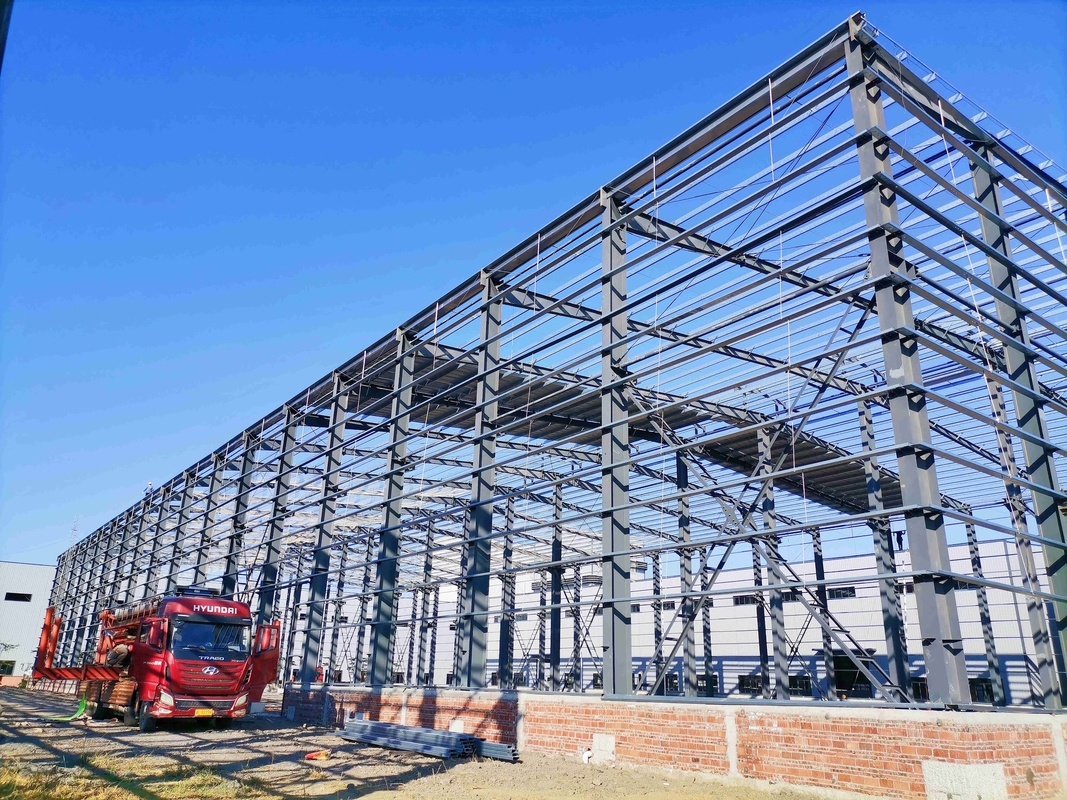

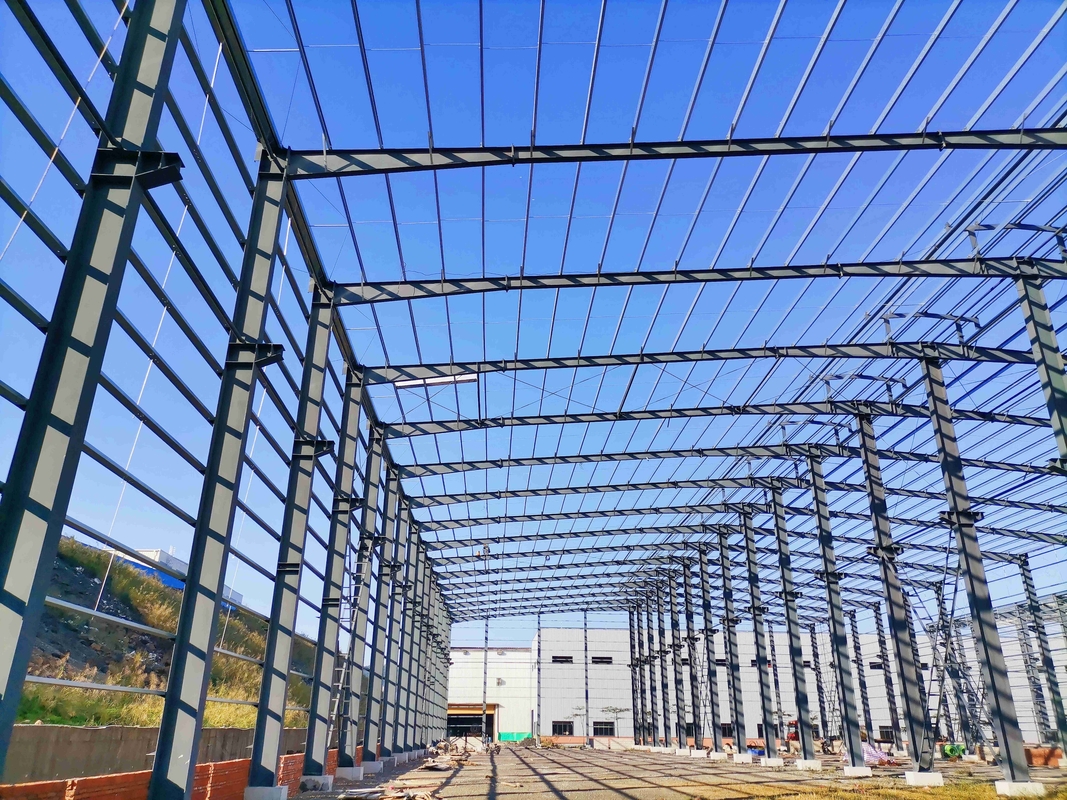

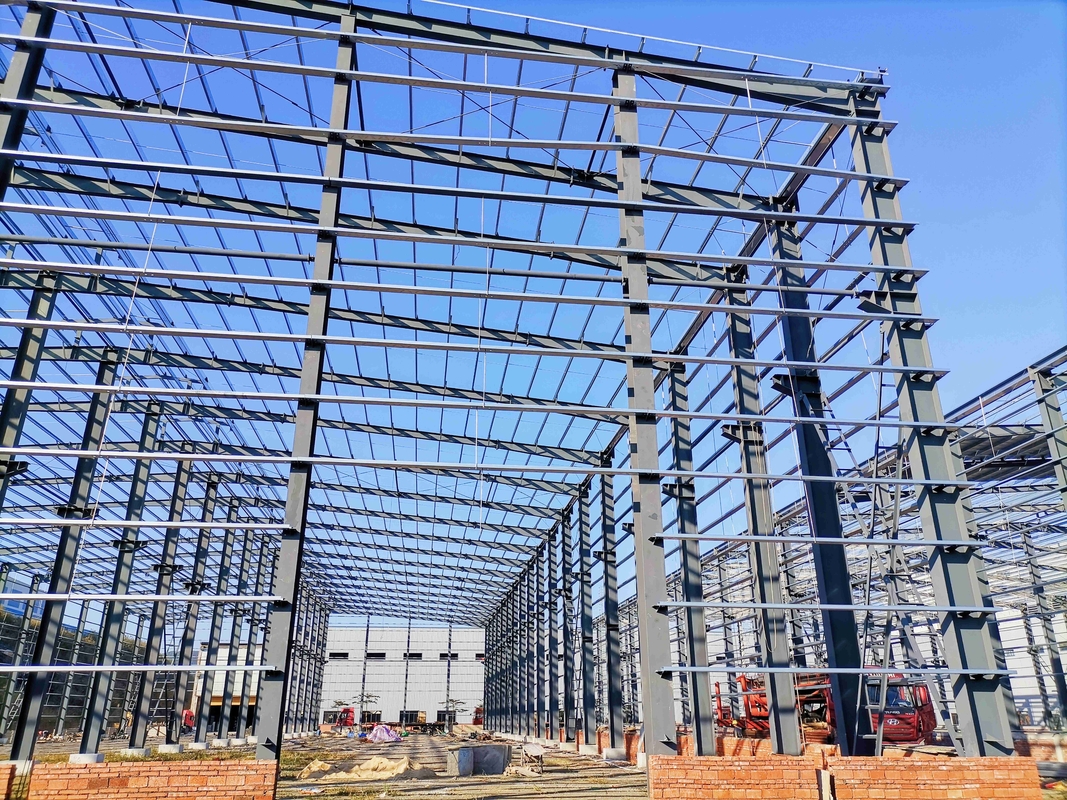

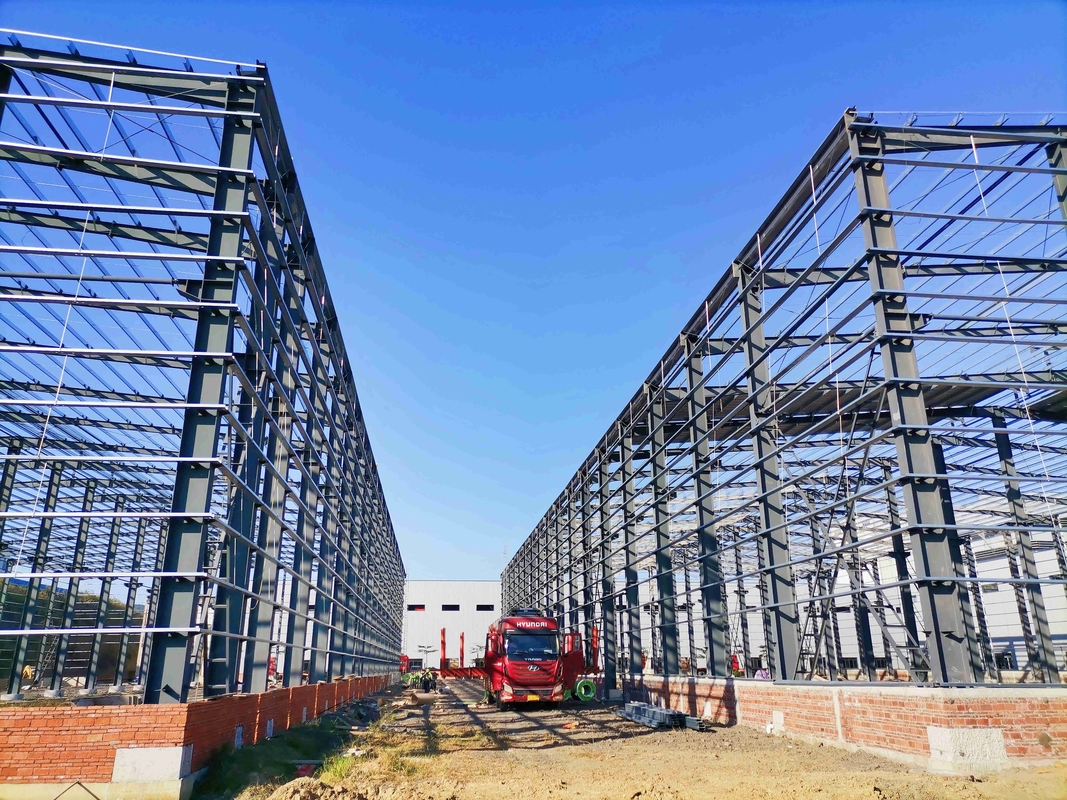

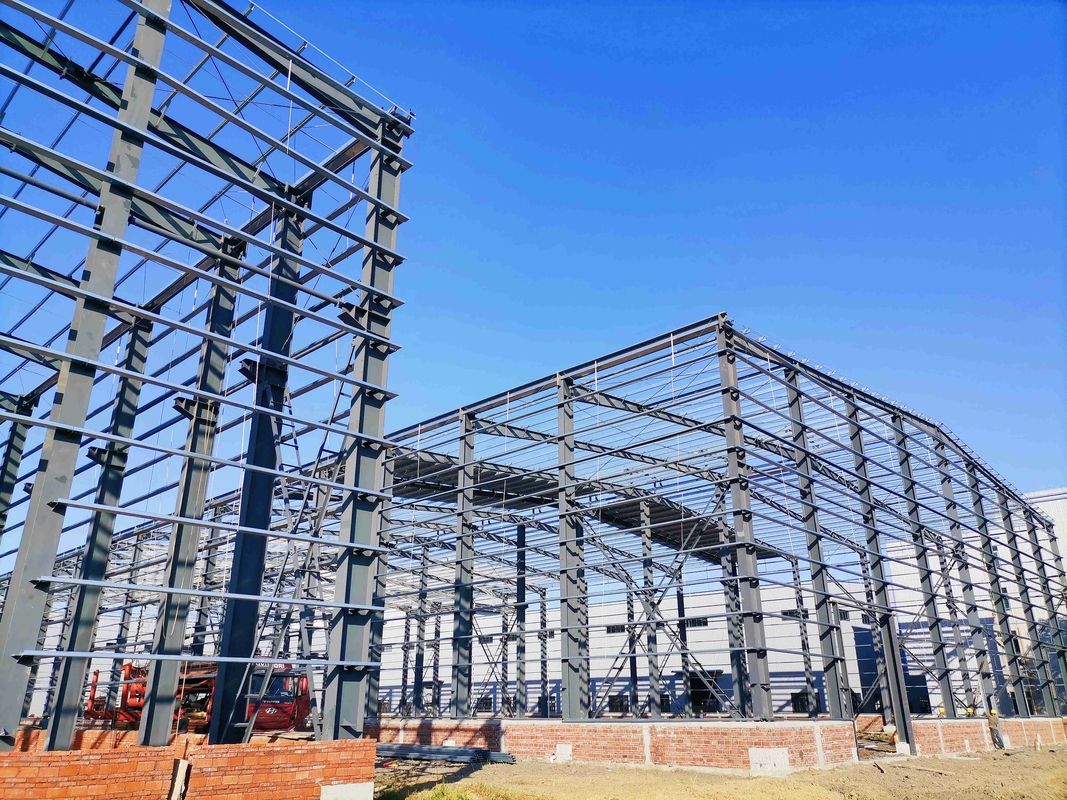

The steel structure workshop boasts a robust and durable framework that is assembled from prefabricated steel beams, columns, braces, and other steel components. This construction method allows for efficient on-site assembly, significantly reducing construction time and minimizing disruption to surrounding operations.
The workshop's exterior walls and roof are often clad with metal sheets, such as corrugated steel or aluminum, which provide excellent weather resistance and durability. These materials are also easy to maintain and can be replaced or repaired quickly if necessary.
Steel buildings have several advantages
* Strong and Lightweight
* Durable
* Non-combustible
* Versatility
* Better for the Environment
* Sustainable Building Material
Platform material list
| Name of material | Specification and material |
| Embedded parts | M30 |
| High strength bolt | M20,10.9S |
| Common bolt | M16 |
| Galvanized bolt | M12 |
| Shear nail | M16 |
| Steel column(Q345B) | HN600X200X10X15 |
| Steel column(Q345B) | HN300X150X6.5X9 |
| Roof column(Q345B) | HN350X175X6X9 |
| Floor main beam(Q345B) | HN500X200X9X14 |
| Tie rod | 89*3.0 |
| Horizontal support | 16 |
| Roof purlin(Galvanized) | C180*60*20*2.0 |
| Wall purlin(Galvanized) | C180*60*20*2.0 |
| connecting plate | 6mm～20mm steel sheet |
| Roof Tile- Rock wool Sandwich panel | 50mm color steel thickness: 0.426 |
| Outside wall panel --Rock wool Sandwich panel | 50mm color steel thickness: 0.426 |
| Gutter | 2.0mm Galvanized Gutter |
| Down pipe | 110PVC |
| Trimming | 1.0mm galvanized steel sheet |
Platform material list
Why steel ?
1. Steel can be recycled. Rather than paying landfill fees for non-recyclable construction waste, your company will be able to recycle steel and metal building components.
2. Steel is so durable, and requires so little maintenance, it is a more economic choice for building owners.
3. Innovation in steel production, combined with greater competition to meet rising steel demands, has brought steel prices lower than they've been in twenty years.
4. Due to a steel structures' almost unrivaled ability to withstand high winds, heavy snow loads, fire and seismic activities, combined with their resistance to pests and decay, insurance companies often offer lower premiums on policies underwritten for metal buildings.
5. Faster construction times means fewer interest payments to the lender, who typically requires that interest-payments are made through the duration of the construction process.
Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers and platform etc.
Our services
1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication
Price
We can quote if you can offer the following information:
1) Length (side wall, m)?
2) Width (end wall, m)?
3) Wall Height (eave, m)?
4) Middle Column allowed or not?
5) Project location?
6) Snow load?
7) Wind load?
8) Seismic magnitude?
9) Mezzanine or not? And usage?
Payment Terms
1) Payment: L/C or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process steps.
3. Inspection during producing.
4. Inspection after completed. Always install several section to ensure no problems to installation
Loading
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
