High-Rise Prefabricated House Building Frame Structure Hotel Office Building

High-Rise Prefabricated House Building Frame Structure Hotel Office Building

Office Building Prefabricated House

Building Frame Structure Prefabricated House

High Rise Prefabricated House

Place of Origin:

Nanhai, Foshan, Guangdong

Brand Name:

TPA Housing

Certification:

ISO,SGS,BV

Model Number:

TPA-ST022

Contact Us
Request A Quote
Product Details
Use/application:
Workshop,Garage Hangar
Roof & Wall:
Sandwich Panel(PU/EPS/fiberglass/rook Wool) Or Colorful Steel Tile
Anti-seismic:
7 Grade
Main Frame:
Solid H-shape Steel Beam
Others Options:
Skylight Panel,Roof Ventilator,Down Pipe,Galvanized,Crane,sanitary Products
Door:
Steel Rolling Shutter Or Others
Window:
Alu. Alloy Window,or Others
Foundation:
Cement And Steel Foundation Bolt
Edge Cover:
Steel Sheet 0.5mm Thickness
Payment & Shipping Terms
Minimum Order Quantity
1 units
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C
Supply Ability
100000 square meters per month
Product Description

High Strength And Low Weight Steel Material Steel Truss Garage Hangar Building



Product type: Steel Construction Building



Product Description

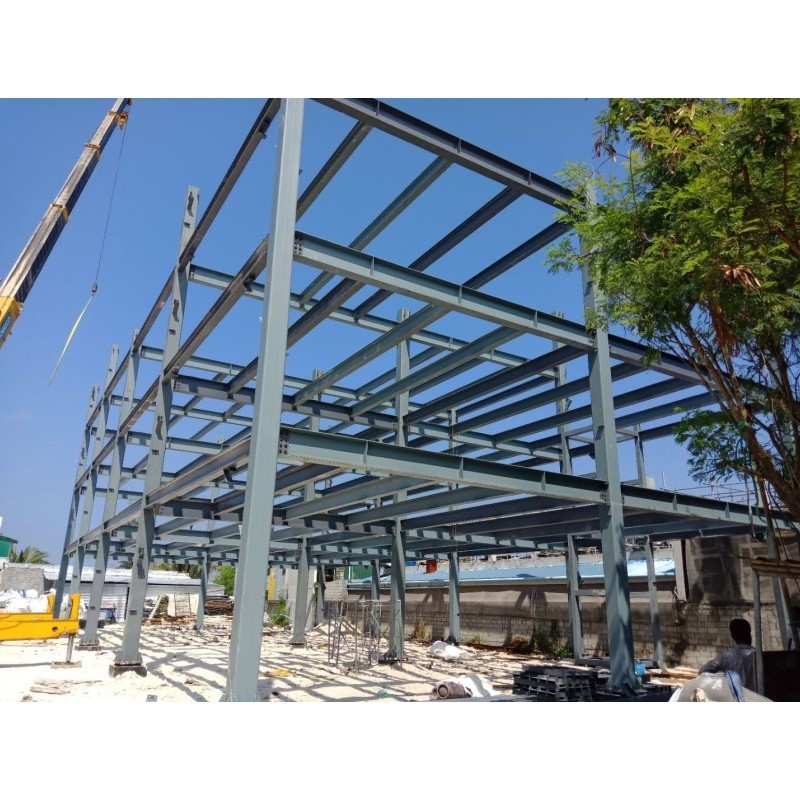

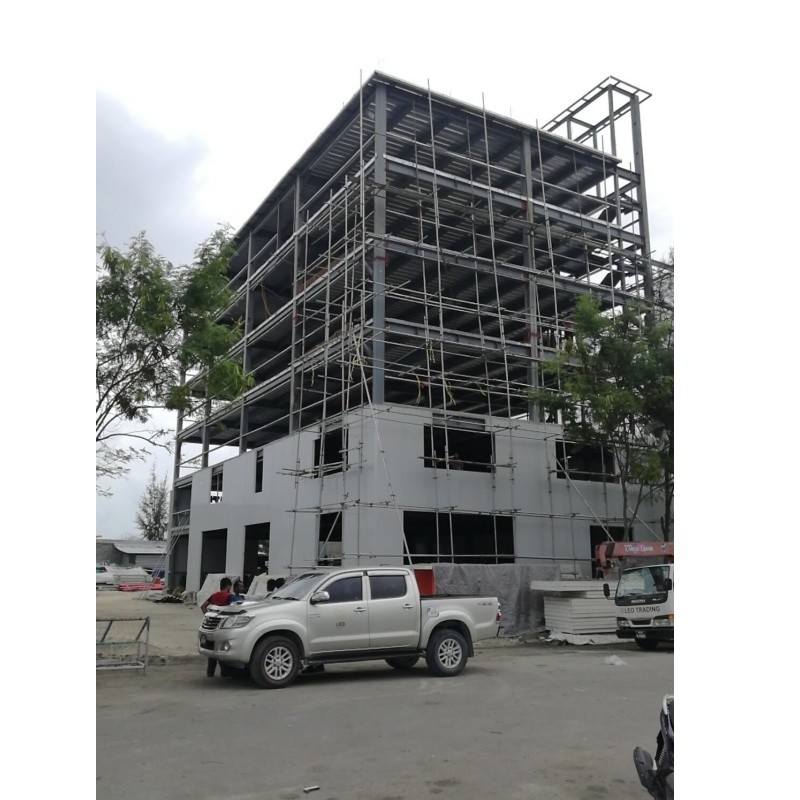

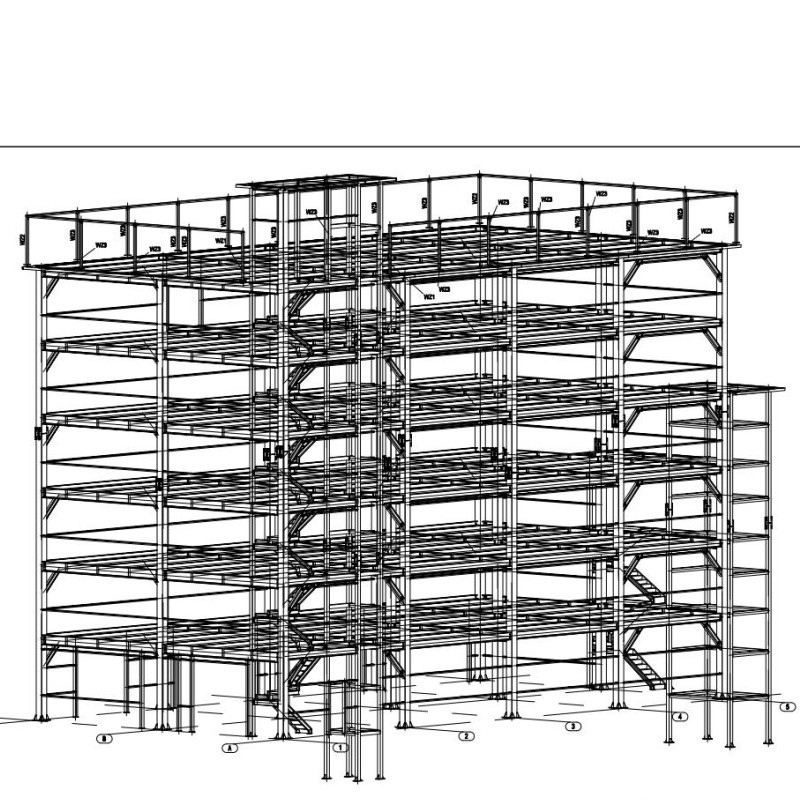

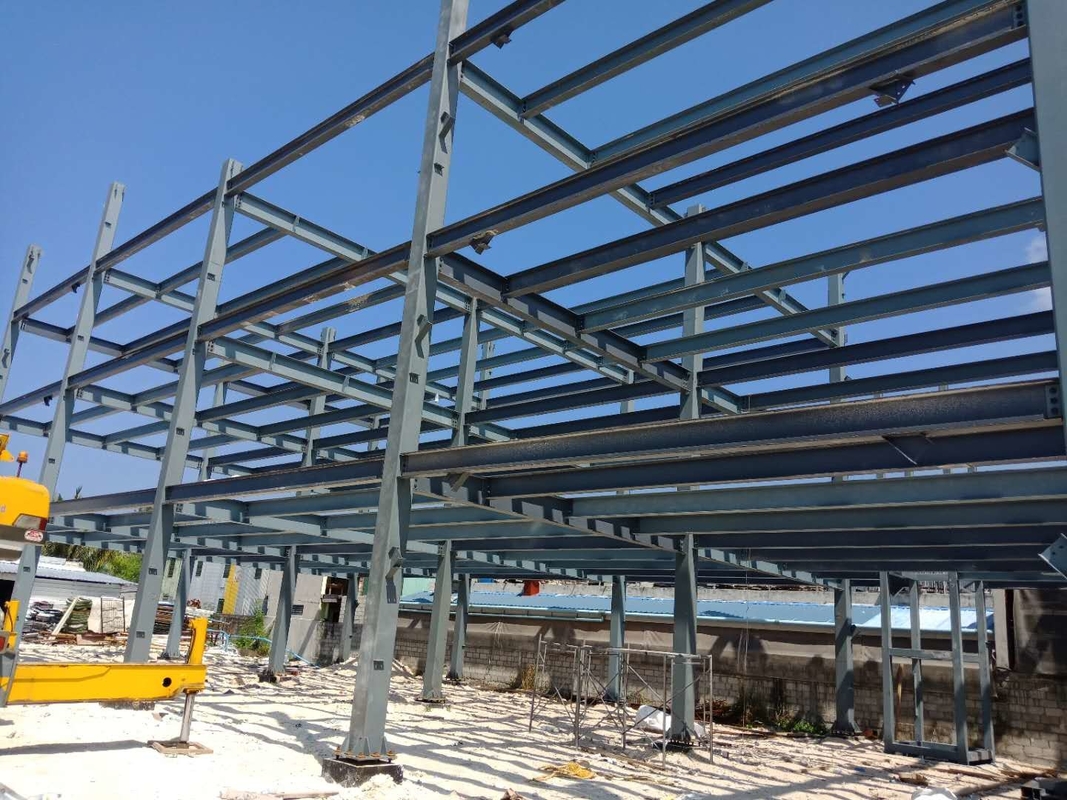

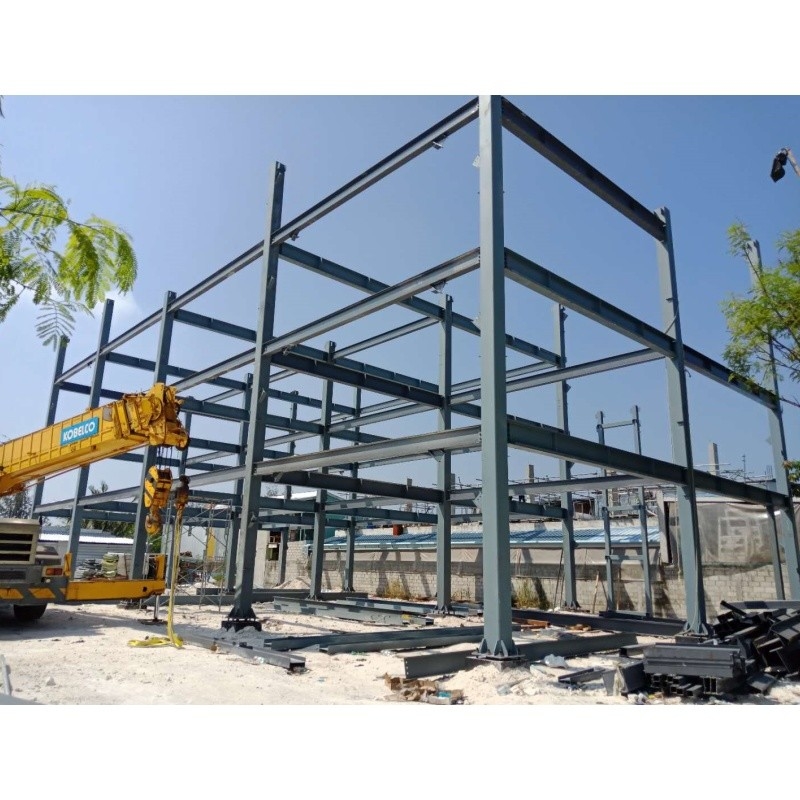

for the building which is more than 7 floors, the main steel frame are double H section steel or box steel, we will weld some male pin on the steel members, then steel frame will connect with concrete very well, client can save some tonnage of steel and save some cost for concrete too, steel deck as one of the most important material for the flooring, Steel deck can be installed for each floor together and place at the same time. But concrete building can not. The external wall materials for the building, depend on the clients' requirement and design, it can be aluminium curtain or glass curtain wall.



Product Advantages



  • Steel has a high strength to weight ratio. Therefore the dead weight of steel structures is relatively small. This property makes steel a very attractive structural material for some multi-story buildings, long-span bridges, etc.
  • It can undergo plastic deformation before failure; this provides greater reserve strength. This property is called ductility.
  • Properties of steel can be predicted with a very high degree of certainty. In fact, steel shows elastic behavior up to a relatively high and usually well-defined stress level.
  • Structural steel can be built with a high-quality relationship and narrow tolerances.
  • Prefabrication and mass production is usually possible in steel structures.
  • The rapid construction is possible in the steel structures. This results in the economic construction of steel structures.
  • Good fatigue strength is also the advantage of the steel structure.
  • If necessary, the steel structures can be strengthened at any time in the future.
  • The reused capability of steel construction is also an advantage.



Product material list

Embedded parts Name of material Specification and material
Anchor bolt M30
High strength bolt M20,10.9S
Common bolt M16
Galvanized bolt M12
Shear nail M16
Main steel frame Steel column(Q345B) HN298*149*5.5*8
Wind resistance column(Q345B) HN248*124*5*8
Roof column(Q345B) HN248*124*5*
Tie rod Ø 89*3.0
Horizontal support Ø 16
Roof purlin(Galvanized) C140*45*20*2.
Wall purlin(Galvanized) C140*45*20*2.
connecting plate 6mm~20mm steel sheet
Maintenan Roof Tile- PU sandwich panel 50mm color steel thickness: 0.426mm
Outside wall panel --PU sandwich panel 50mm color steel thickness: 0.426mm
Gutter 2.0mm Galvanized Gutter
Down pipe 110PVC
Trimming 1.0mm galvanized steel sheet



High-Rise Prefabricated House Building Frame Structure Hotel Office Building 0

Inspection



To ensure all the goods are qualified, will inspect all the goods more than 3 times:



1. Check all the materials before start work.

2. Inspection before each process steps.

3. Inspection during producing.

4. Inspection after completed. Always install several section to ensure no problems to installation





QUOTATION!

If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) which country? which city?
2 Size: Length*width* Eave height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm, temperature range?
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high? or other?
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m



Our service

1-Customized design service
2-Quality Assurance Service
*Safety packing
*Insurance services
*Inspection before shipment
3-After-sales service
*Engineer guide on site
*Installation team service
*Email/phone call communication



Factory show


Foshan TianPuAn Building Materials Technology Co., Ltd.(TPA housing), was is founded in 2008. We focus on producing custom-made economic and environmentally friendly prefab houses. With the Specialized technology, professional design team, and high-quality construction team we have undertaken hundreds of prefab buildings production and installation got the consistent high praise of the clients.


High-Rise Prefabricated House Building Frame Structure Hotel Office Building 1
