Place of Origin:
Guangdong Foshan
Brand Name:
TPA Housing
Certification:
ISO, SGS,BV
Model Number:
TPA-SSW61

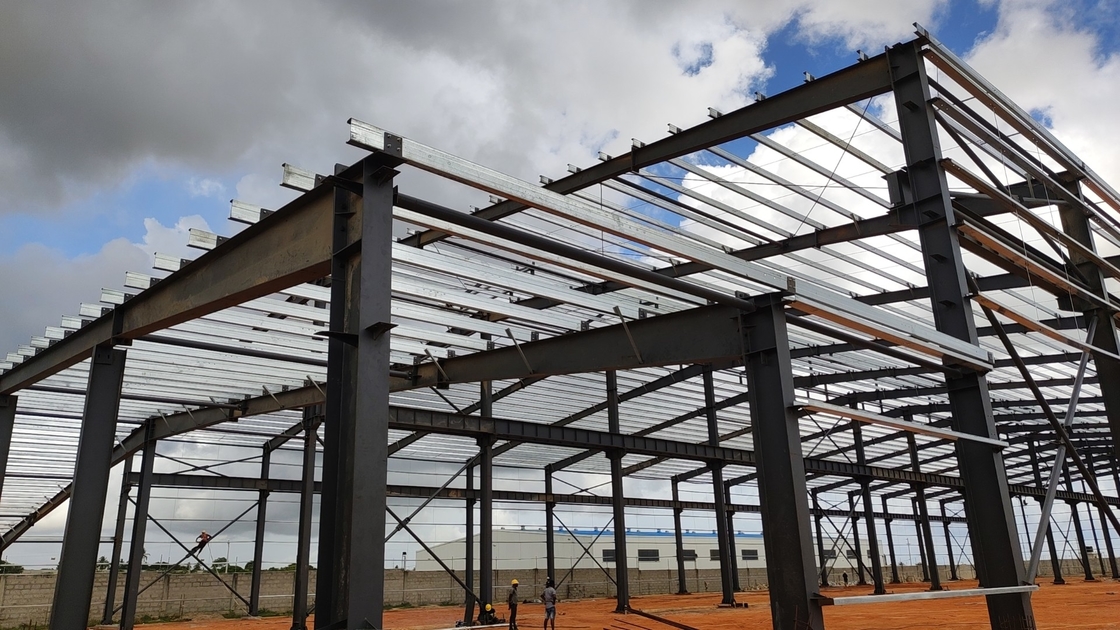

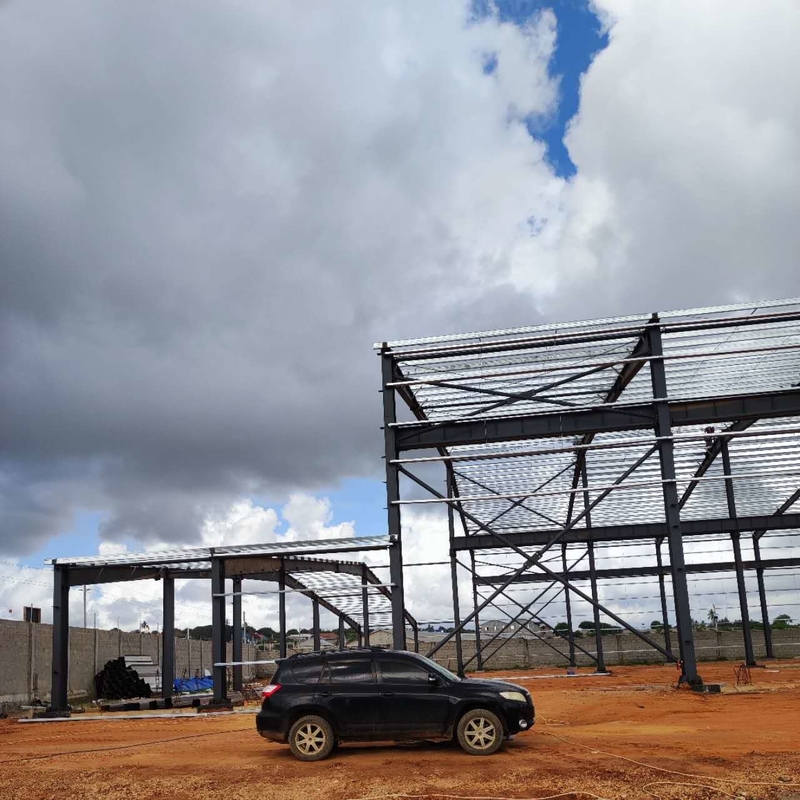

Light Steel Structure Warehouse Warehouse Steel Structure Office With Single Steel Sheet
A steel structure warehouse building is crafted from steel. From the beams to the columns, these steel warehouses are meant to provide a sturdy warehouse but without the costs of a traditional warehouse. This type of infrastructure is more cost-effective and lightweight, making them much easier to put up if you are in a hurry or you are on a budget.
Product material parameter
Anchor bolt | M20 |
High strength bolt | M20, 10.9s |
Shear nail | M16 |
Common bolt | M20 |
Brace | M12 |
Tie rod | Ø12 |
Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
Roof beam(Q345B) | HN340X250X9X14 |
Roof frame beam(Q345B) | HN294X200X8X12 |
Floor main beam(Q345B) | HN294X200X8X12 |
Floor secondary beam(Q345B) | HN244X175X7X11 |
Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
Stair beam(Q235B) | H300X200X6X8 |
Roof purlin | C140X60X20X3.0 |
Connecting plate | 3~8mm |
Roof tile | 75mm rock wool, color sheet both sides 0.426mm |
Wall panel | 75mm rock wool, color sheet both sides 0.426mm |
Floor deck | 1.0mm |
Steel door | 900*2100 |
Aluminum windows | 2000*1500 |
Zinc steel handrails | Square tube80X40+40+30+20 |
Trimming | 1.0mm galvanized sheet, color steel sheet |
Steel structure warehouse features:

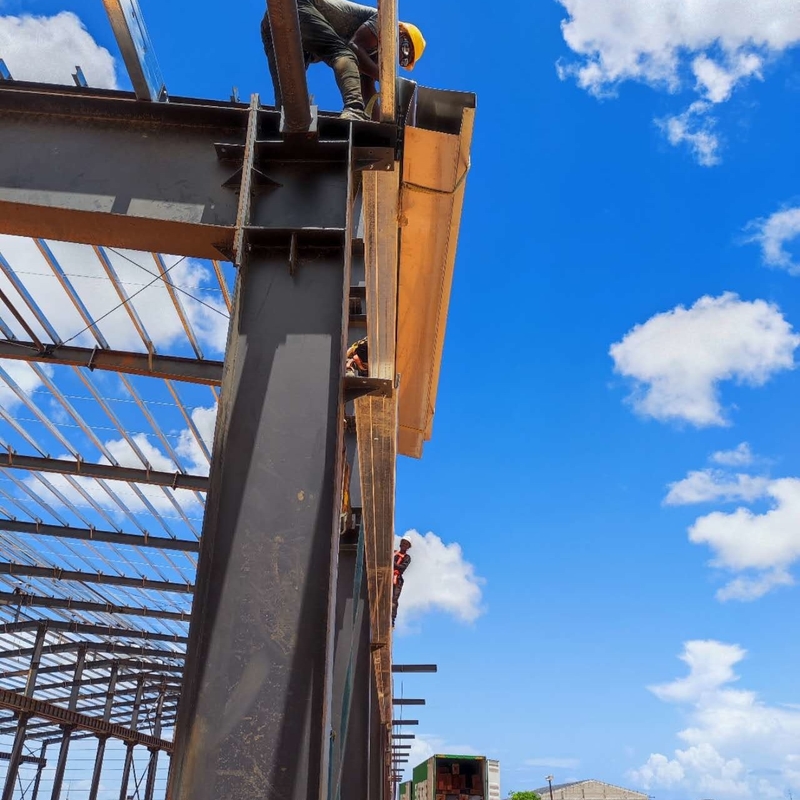

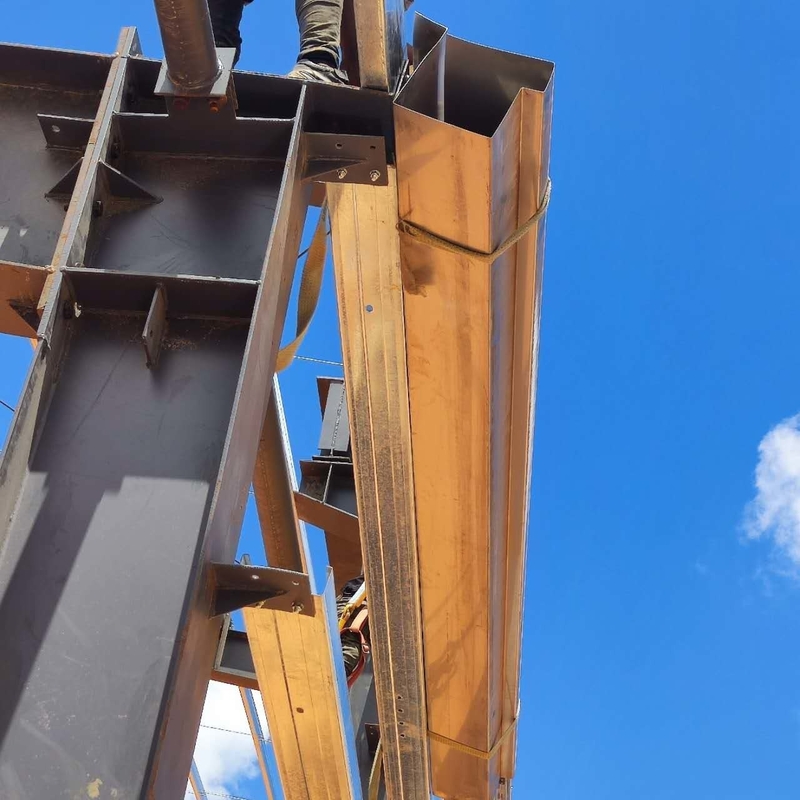

Connection of a steel beam to a steel column?
The standard way of connecting beams to columns is to provide moment transfer through full penetration butt welds between the beam flanges and column flanges (strong axis connections) or continuity plates (weak axis connections) and to provide shear transfer through the beam web connection.
Steel structure Warehouse Drawings & Quotation:
Choosing a steel structure drawing or plan involves assessing the needs of your business when it comes to size. It’s important to understand what tasks need to be done to be able to choose a plan that will ensure these tasks will be carried out.
We can supply your business with a carefully laid-out structure drawing or plan that fits your specific needs, especially when it comes to size and functionality.
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process step.
3. Inspection during production.
4. Inspection after completed. Always install several sections to ensure no problems with installation
Price
We can quote if you can offer the following information:
Item Name | |
Size | Length, Width, Roof Height, and Eave Height |
Column and Beam | Hot rolled or welded H section beam |
Purlin | C-section and Z-section |
Roof and Wall | Single-layer corrugated sheet or EP/Rock Wool/PU sandwich panel |
Door and Window | Rolling up / sliding / side-hung door and window |
Surface | Painting or Hot-dipped galvanized |
Local Climate |
1.Wind speed 2.Snow load 3.Earthquake grade if have |
Loading pictures of steel warehouse building reference
The door and window will be packed safely to prevent damage. We will responsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
